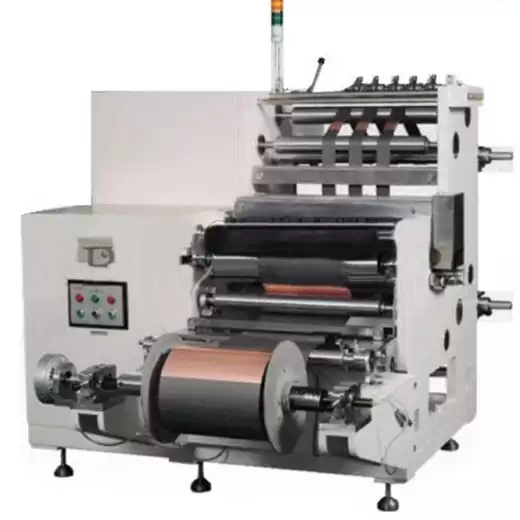

High Speed Continuous Aluminum Laminated Foil Roll Slitting Machine for Lithium Battery

Wechat:18659217588

Whatsapp:+86 13174506016

Email:David@batterymaking.com

SPECIFICATION

Main technical parameters

Performance

Type

Continuous slitting machine

Max slitting width

500mm

Min slitting width

20mm

Slitting thickness

0.01-0.2mm

Slitting speed

1-30m/min

Max undercarriage roller diameter

φ500mm

Deviation controller accuracy

±0.2mm

Cutting waste

≤5mm

Cutting burr

none

Dimension(LWH)

220016801750mm

Weight

2000kg

Product Tags 18650 cell battery electrode slitting machine cylindrical cells electrode cell battery electrode slitting machine cylindrical load cell cylindrical lifepo4 cells cylindrical battery cells electrodes in electric cells half cell electrode

Main technical parameters	Performance
Type	Continuous slitting machine
Max slitting width	500mm
Min slitting width	20mm
Slitting thickness	0.01-0.2mm
Slitting speed	1-30m/min
Max undercarriage roller diameter	φ500mm
Deviation controller accuracy	±0.2mm
Cutting waste	≤5mm
Cutting burr	none
Dimension(LWH)	220016801750mm
Weight	2000kg
