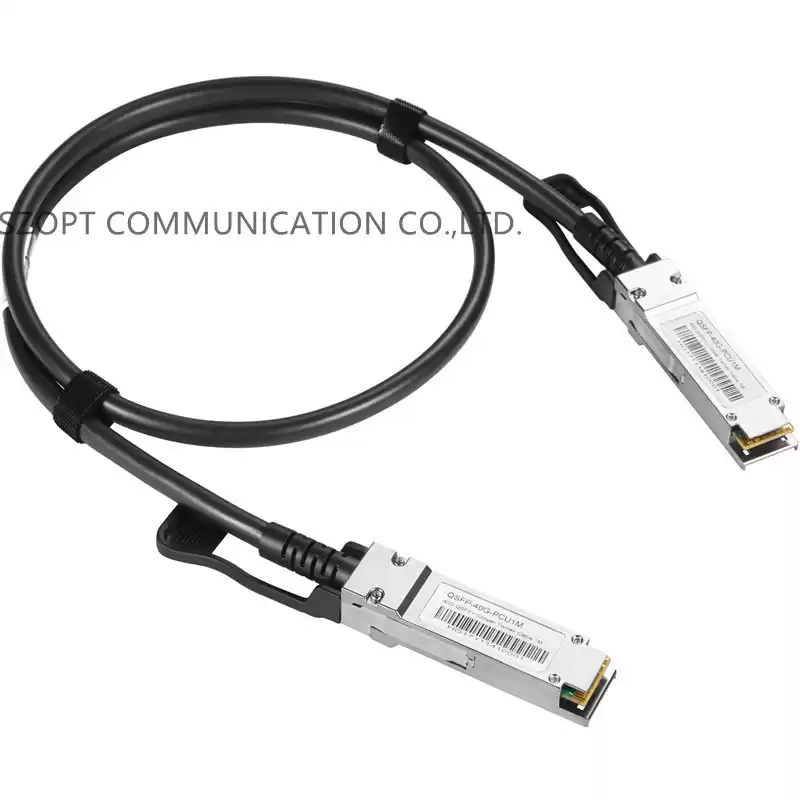

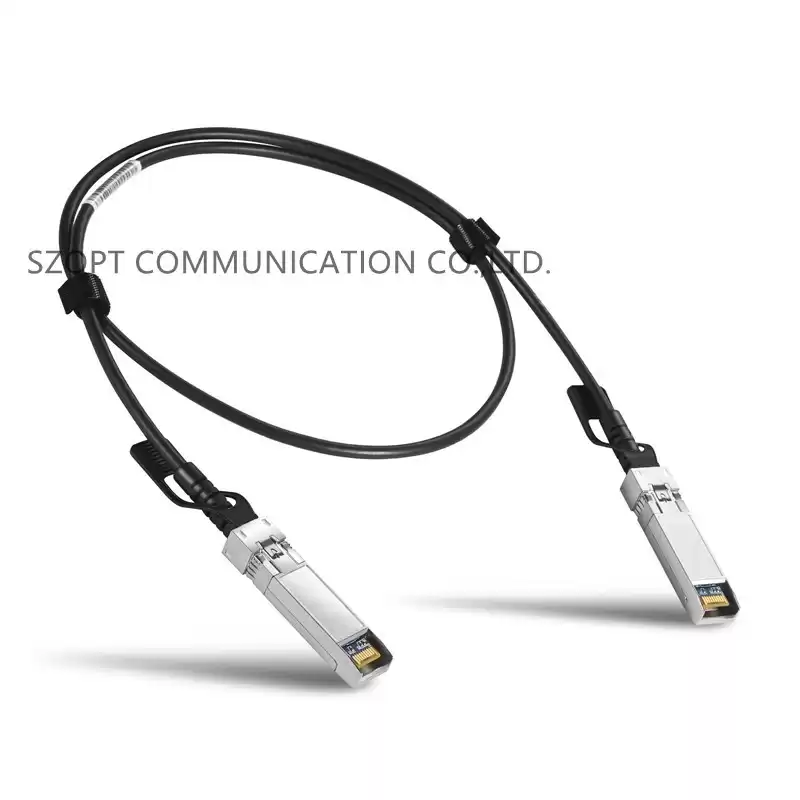

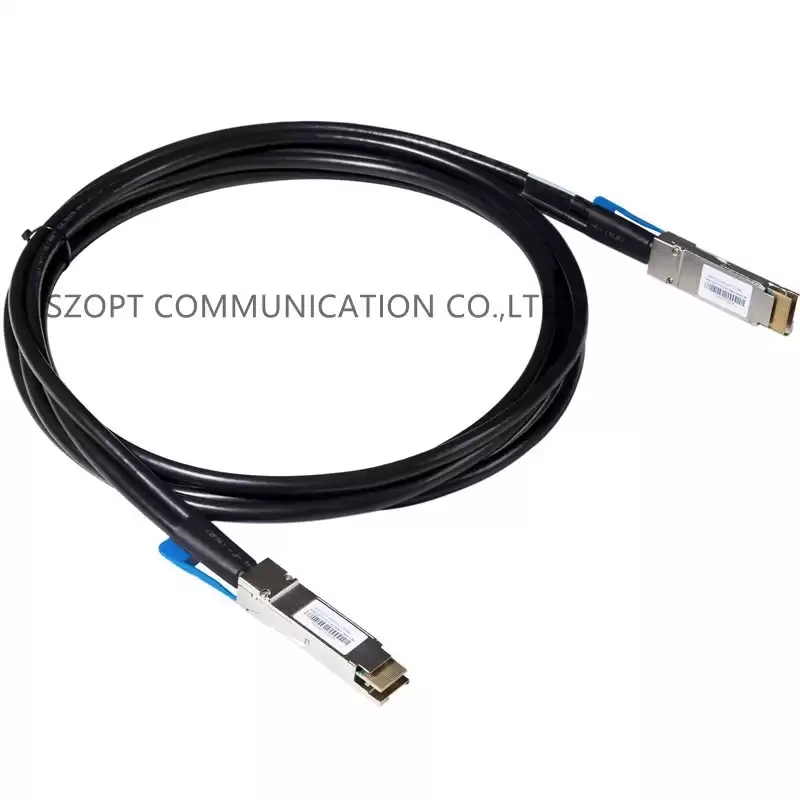

High Speed DAC Patch Cable 40G QSFP+ to 4SFP+100G QSFP28 to 4SFP28 Direct Attach Copper Cable
QSFP+/QSFP28 passive copper cable assembly features providing four data
transmission channels at speeds up to 28Gbps per channel,and meets 100G
Ethernet,25G Ethernet and InfiniBand Enhanced Data Rate(EDR)
requirements.Available in a broad rang of wire gages-from 26AWG through
30AWG-this 100G copper cable assembly features low insertion loss and low cross
talk.Please reach us for details.
Applications:
1G/10G/40G/100G Ethernet
High Performance Computing Clusters
High End Servers
Metro Network Switch/Cross Connect
Features:
Compatible with IEEE 802.3,IEEE 802.3
Supports aggregate data rates of 100Gbps
Optimized construction to minimize insertion
loss and cross talk
Backward compatible
with existing QSFP+/QSFP28 connectors and cages
Compliant with RoHS
Package:
Each item in a PE bag,finally in a carton box.
Maximum ratings:
|
Parameter
|
Symbol
|
Min.
|
Typ.
|
Max.
|
Unit
|
|
Storage Temperature
|
Ts
|
-40
|
|
85
|
ºC
|
|
Supply Voltage
|
Vcc1,VccTx,VccRx
|
-0.5
|
|
+4.0
|
V
|
|
Relative Humidity
|
RH
|
5
|
|
95
|
%
|
