Product Description
Handling hard or bulky materials such as hard plastics, metal shavings, and thick rubber requires powerful and durable equipment to avoid inefficiency and frequent maintenance.

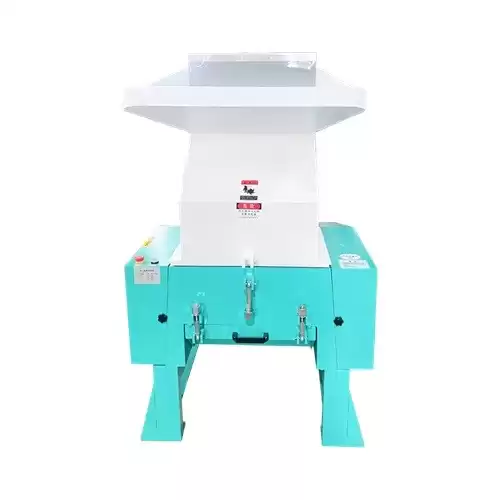

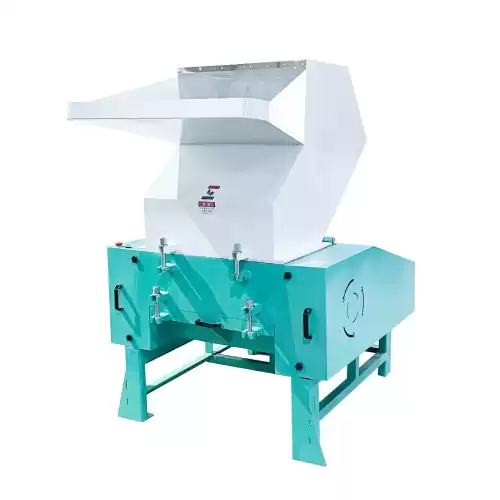

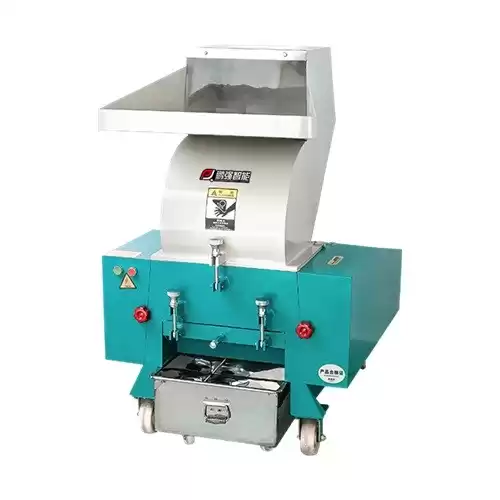

This machine has a high-torque motor for fast and powerful crushing, heat-treated alloy blades, and reinforced components to withstand abrasive materials. The extra-large feed inlet simplifies the loading process and reduces pre-treatment steps, and the balanced rotor design reduces vibration and ensures stable operation. Safety features such as overload protection and emergency shutdown ensure safe operation, and the adjustable screen supports customized particle size on demand. Whether it is a plastic recycling plant, a metal processing plant, or an industrial waste treatment scenario, it can provide efficient crushing performance to support high-load production processes.
Product Parameters
| Model |
Power (kW) |
Feeding Port
Size (mm) |
Flat Blade
Type (blade) |
Flap Blade
Type (blade) |
Claw Blade
Type (blade) |
Fixed Blade
(handle) |
Crushing
Capacity (kg/h) |
Body Size (cm) |
Weight
(kg) |
| MP180 |
2.2(3HP) |
180×160 |
|
6 |
|
2 |
50-100 |
75×55×91 |
120 |
| MP250 |
3.7(5HP) |
255×230 |
3 |
9 |
12 |
2 |
130-250 |
89×63×111 |
280 |
| MP300 |
5.5(7.5HP) |
310×260 |
3 |
9 |
15 |
2 |
220-300 |
110×70×121.5 |
350 |
| MP400 |
7.5(10HP) |
410×260 |
3 |
12 |
18 |
2 |
300-400 |
104×79.5×121 |
450 |
| MP500 |
11(15HP) |
510×275 |
6 |
15 |
21 |
2 |
460-550 |
124×95.5×154 |
500 |
| MP600 |
15(20HP) |
610×280 |
6 |
18 |
27 |
4 |
600-800 |
124×105×154 |
750 |
| MP700 |
22(30HP) |
710×340 |
6 |
21 |
27 |
4 |
700-900 |
140×122×188 |
1050 |
| MP800 |
30(40HP) |
810×440 |
6 |
24 |
30 |
4 |
700-900 |
150×133.5×200 |
1450 |
Key Features

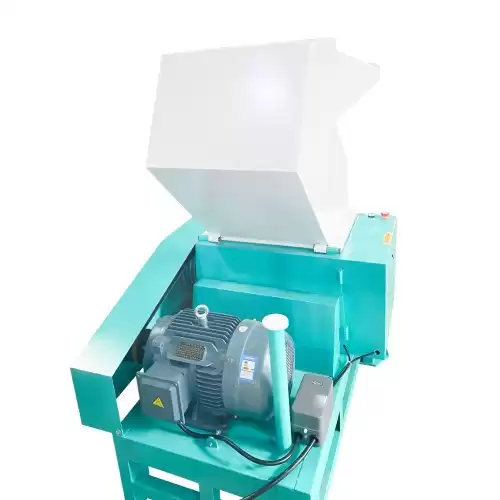

✅Pure Copper Motor for Stability: The core components are made of pure copper motors, which have excellent conductivity, high temperature resistance, strong anti-wear ability, support long-term high-load operation, and ensure stable equipment operation under high-intensity operation.
✅Reinforced Soundproof Enclosure: The fuselage is designed with thickened steel and sound insulation materials to effectively absorb the vibration and noise generated by high-speed operation. The sealed knife chamber structure significantly reduces working noise and creates a quiet and comfortable operating environment.

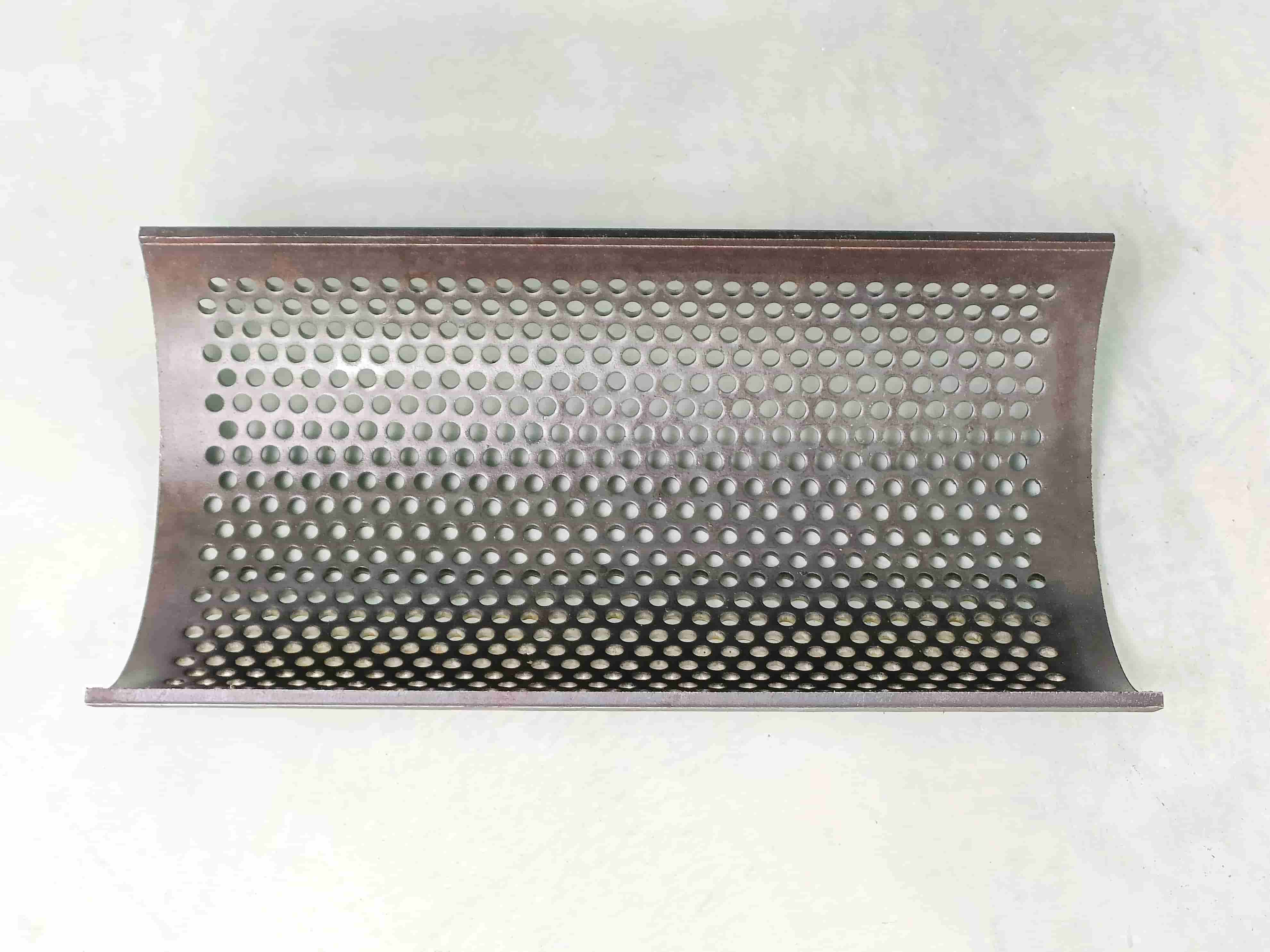

✅Customizable Screen for Particle Control: Equipped with replaceable screens, it supports a variety of aperture customization (from coarse crushing to fine grinding). According to the characteristics and production requirements of different materials, such as plastics, metals, rubber, etc., the size of crushed particles can be accurately controlled to meet diversified processing standards.

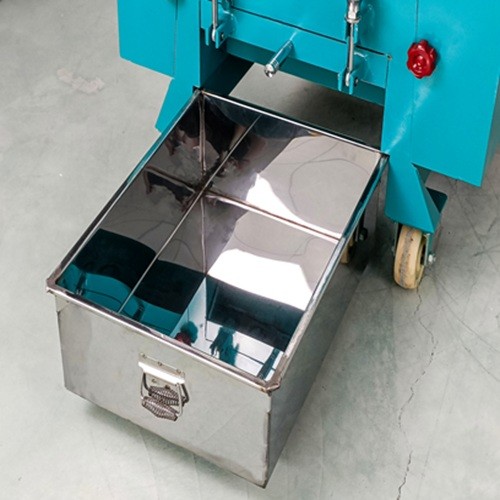

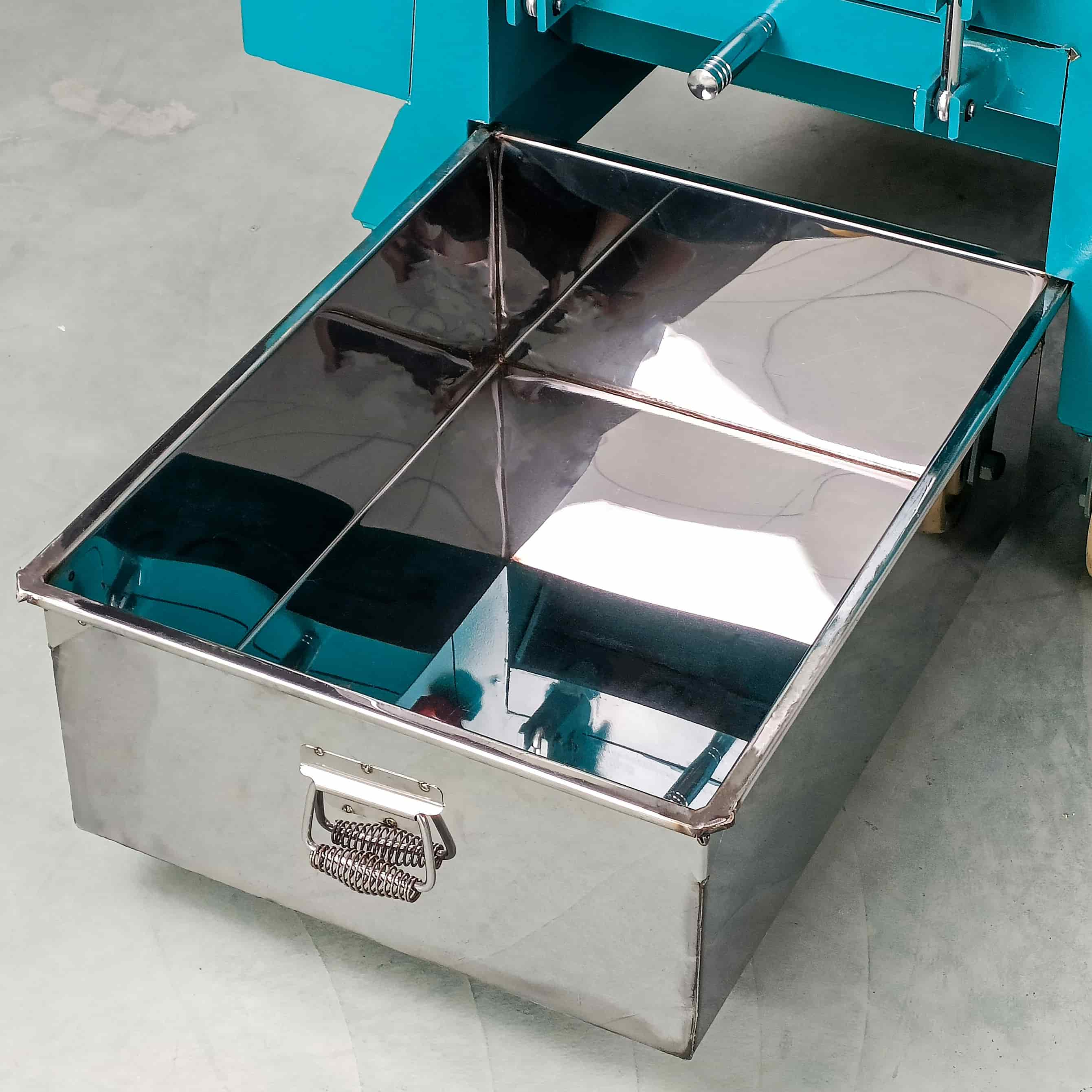

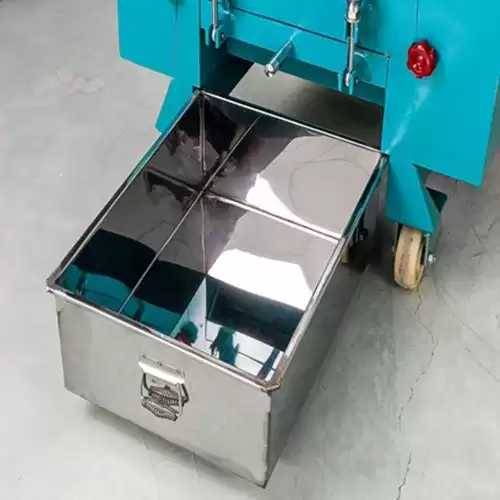

✅Portable Drawer for Easy Material Collection: A large-capacity material receiving drawer is set at the bottom, and a slide rail-type convenient disassembly structure is adopted. After the crushing is completed, the collected materials can be quickly extracted to reduce the loss of residual materials and improve the connection efficiency of subsequent processes.

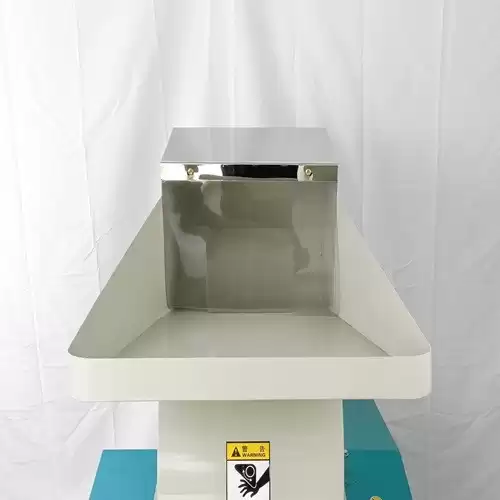

✅Wide Feed Opening for Efficient Loading: The widened design of the feed port supports the direct delivery of large pieces of material without pre-cutting or crushing, saving the initial processing time. It is especially suitable for recycling plants and other scenes that require high-frequency feeding, and improves the overall crushing efficiency.

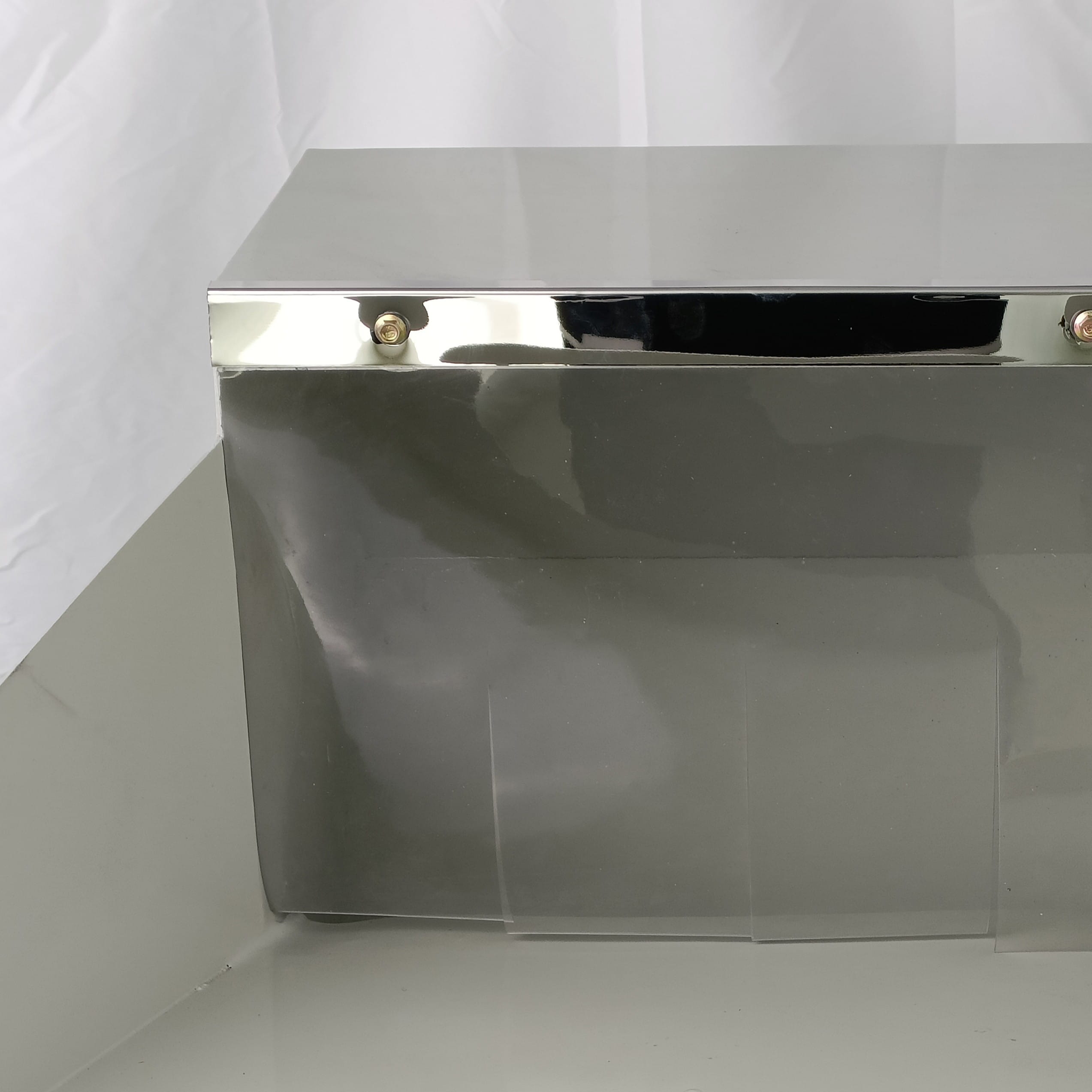

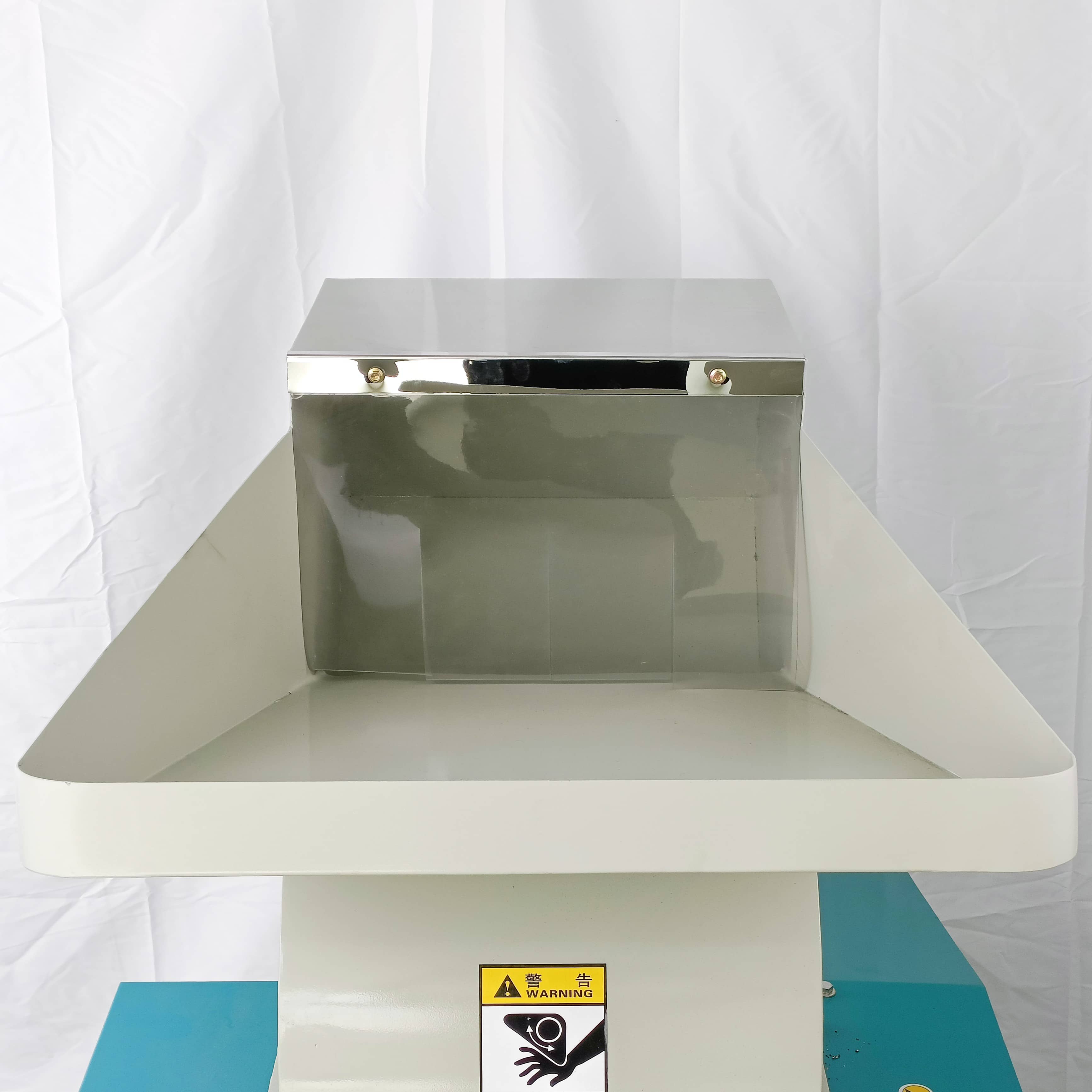

✅Anti-Splash Rubber Guard for Safety: The feeding port is equipped with an adjustable splash guard to effectively prevent material splashing during the crushing process, protect the safety of operators, and reduce material scattering in the workshop environment to maintain a neat production order.

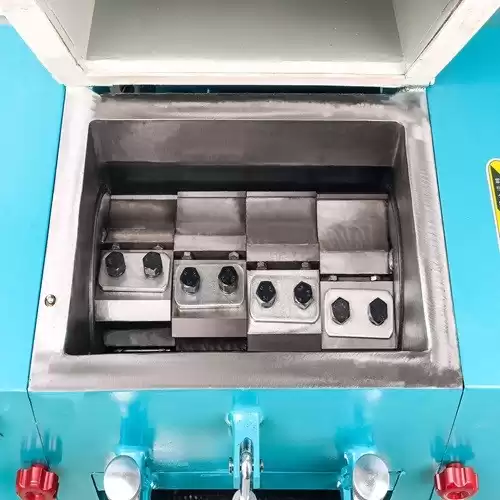

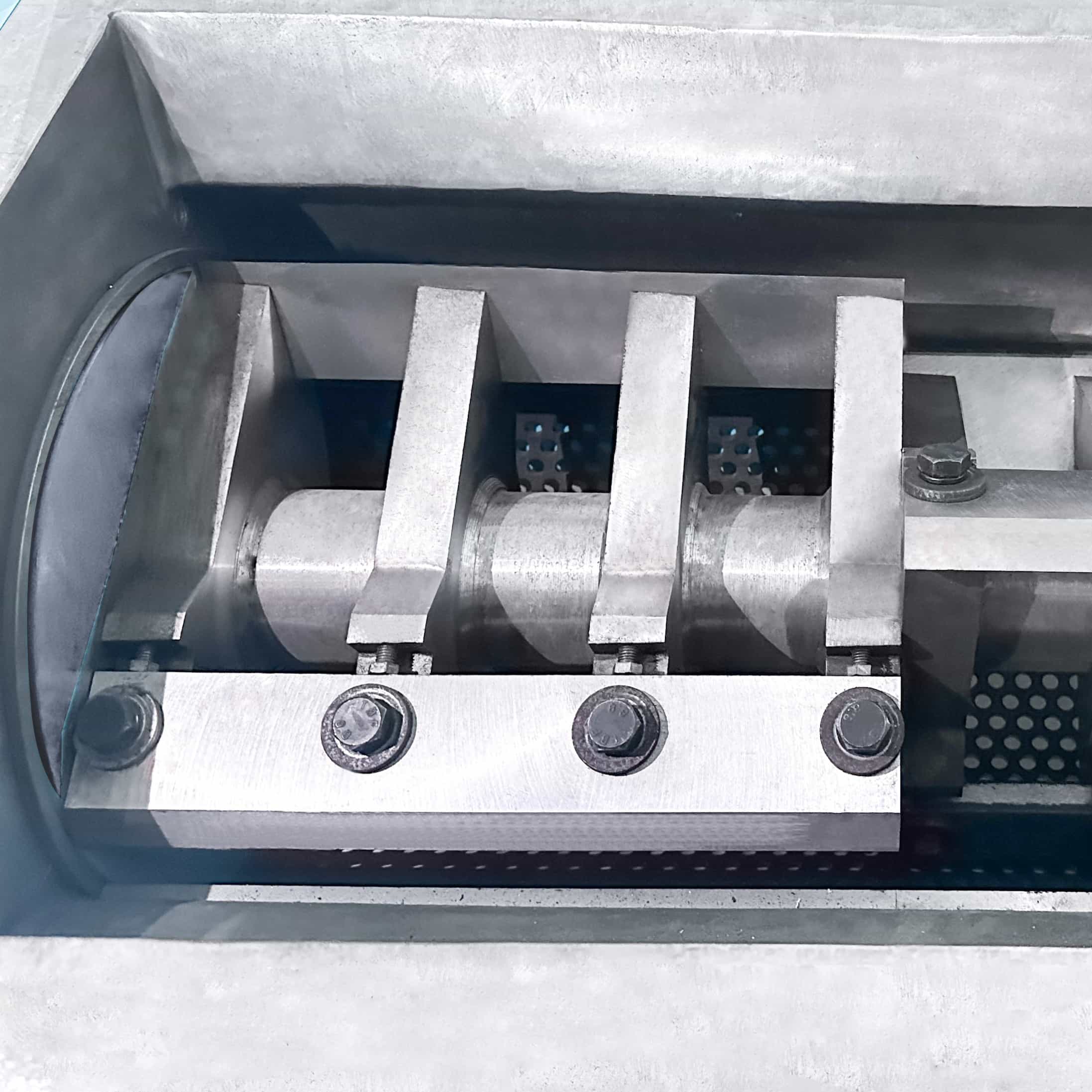

✅Reinforced Blade Chamber for Durability: The knife chamber is reinforced with thickened steel plates and heat-treated to improve hardness. It can withstand high-frequency impacts of hard plastics, reduce deformation and wear of the knife chamber, extend the service life of core components, and reduce maintenance costs.
Product Detail Display
-

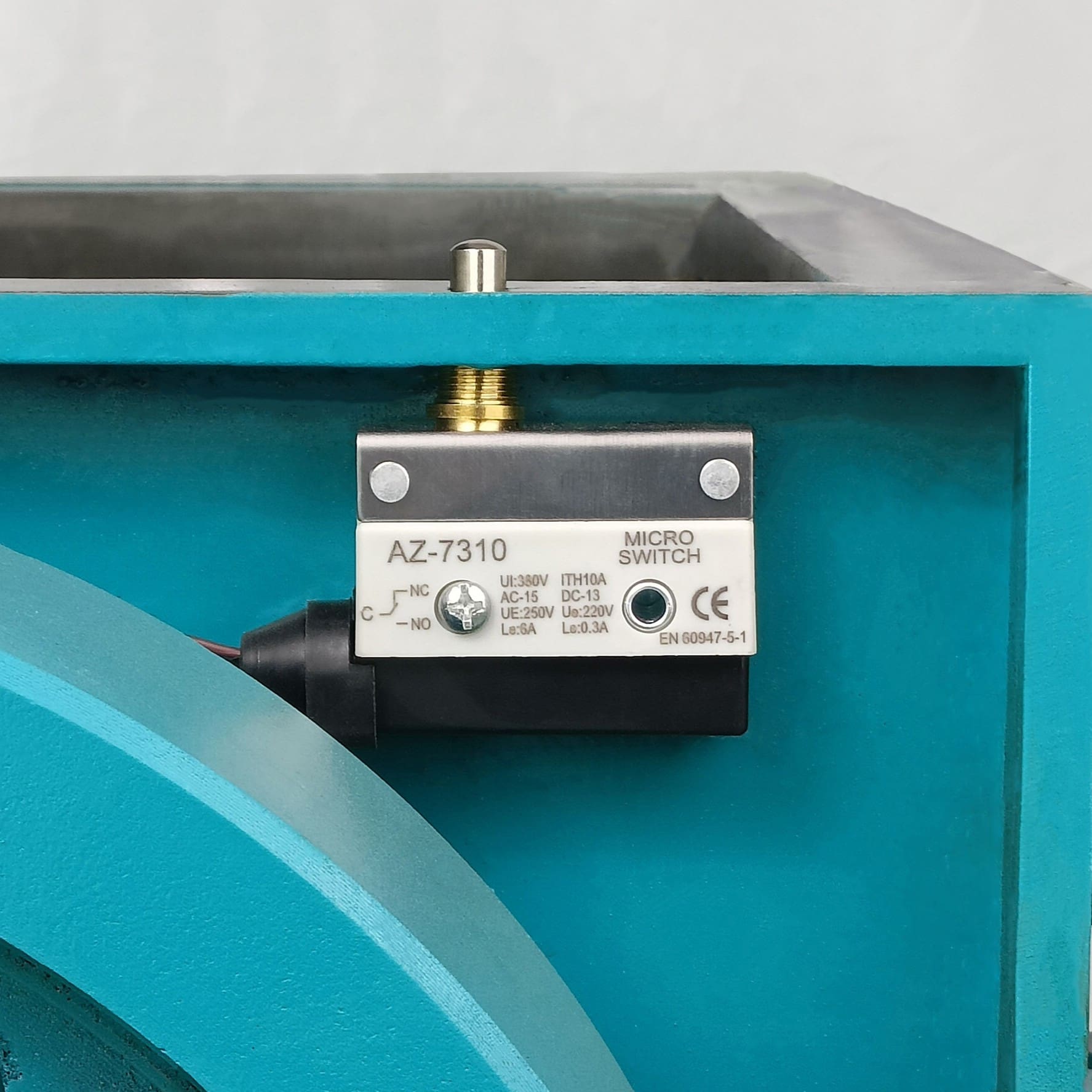

Travel Switch
The blade stops automatically when the box is opened.
More secure to use.
-
-
-
-

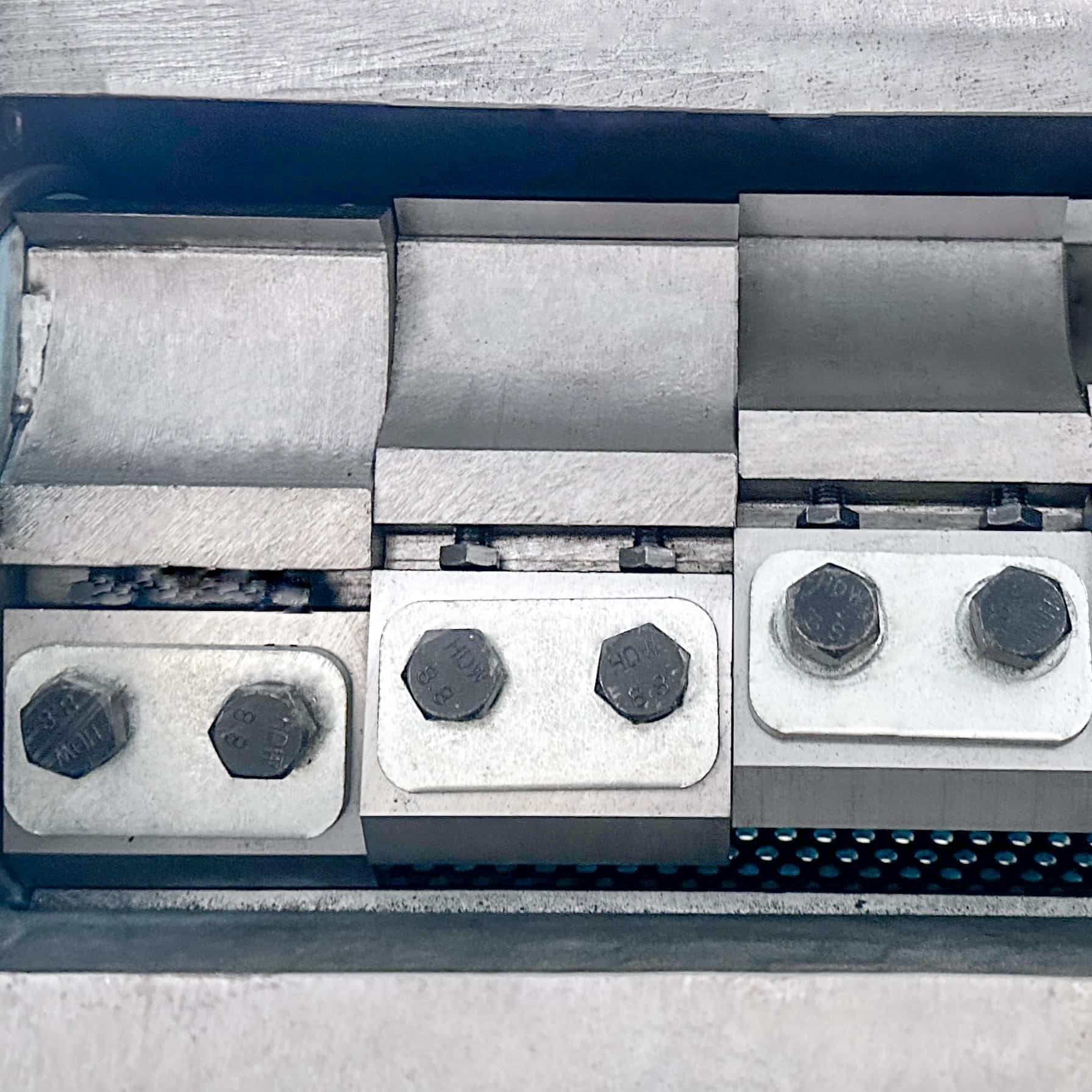

THREE KNIVES, EACH HAS ITS STRENGTHS
Made of high-quality alloy steel, sharp and wear-resistant, with high-efficiency crushing.
-
Flat Knife Crusher
Used for crushing packaging bags and plastic film products. Such as plastic film, plates, etc.
-

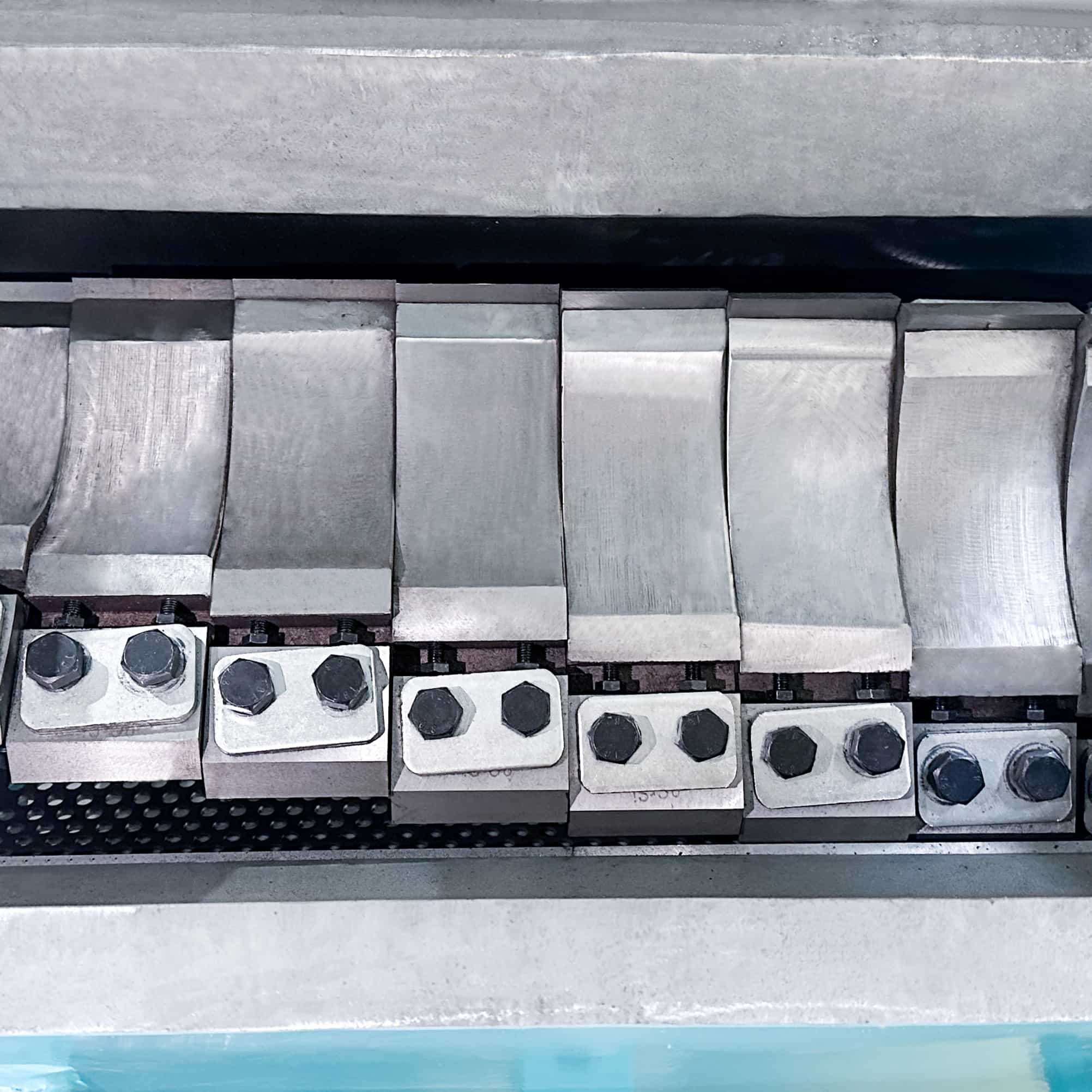

Slice Knife Shredder
Suitable for crushing larger pieces of harder plastics. Such as PVC pipes, TPS, silicone, wire, and rubber.
-

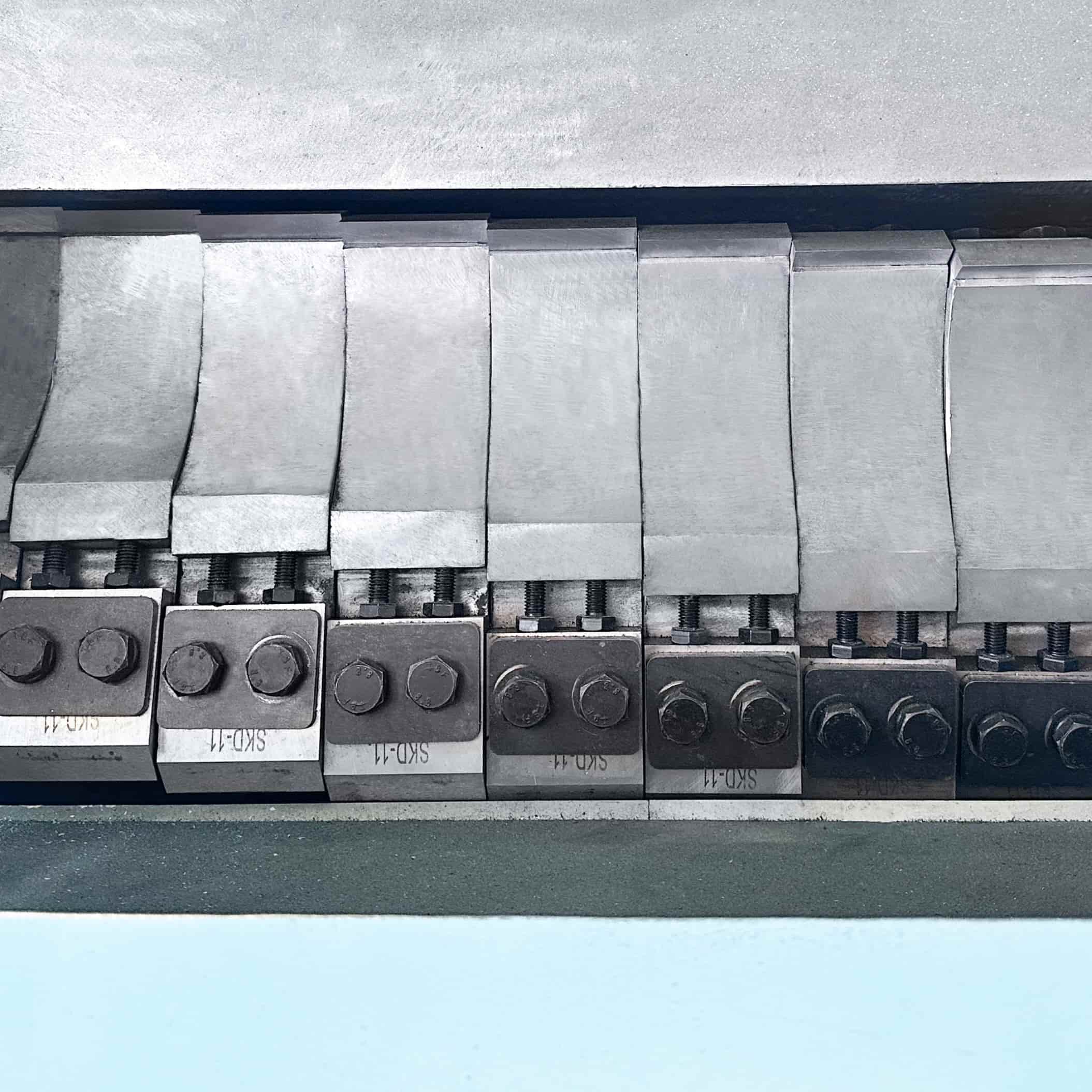

Claw Knife Cruishe
Suitable for crushing harder plastics. Such as ABS, PP, PC nozzle scraps, and crushing unqualified products.

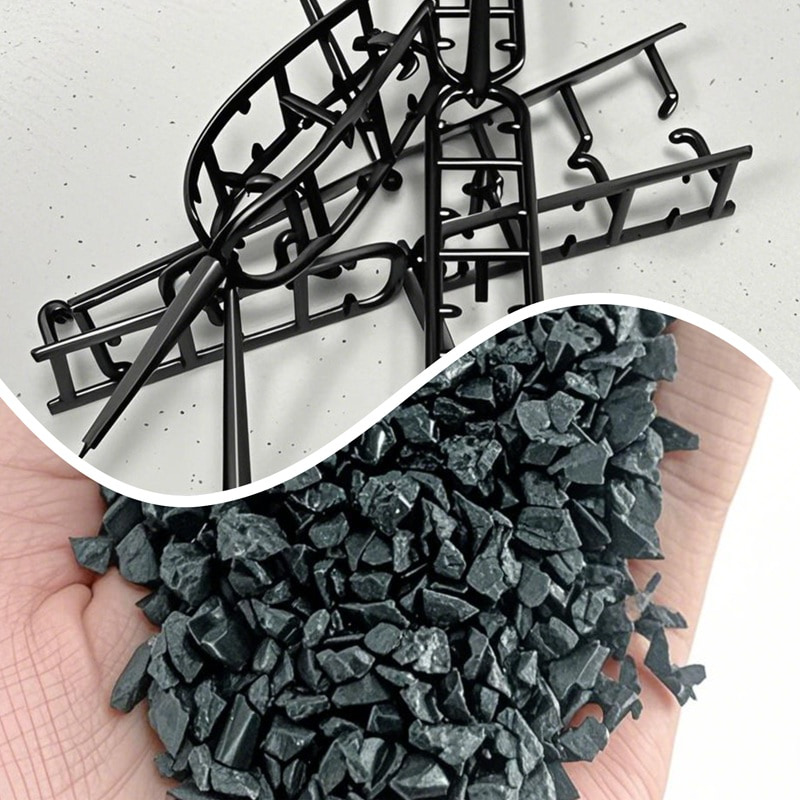

CRUSHING EFFECT DISPLAY

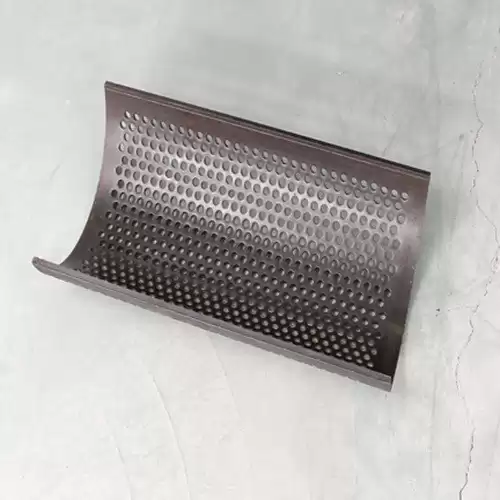

CUSTOMIZABLE MESH SIZE
The size of the material discharged depends on the size of the screen holes.
