High Speed Milling Parts from CNC Machining Vendor

√CNC Machining Aluminum

√High Precision Machining

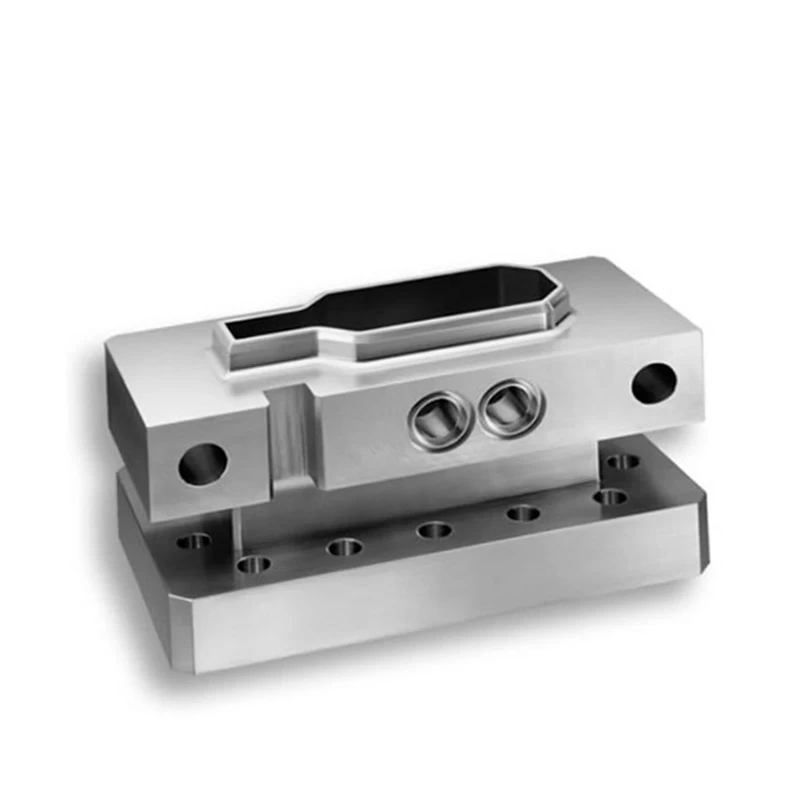

Polished Aluminum Part


  • Delivery time(Prototype)
  • Monthly capacity
  • Minimum Tolerance
  • Max.part size
  • Spindle speed
  • Surface Treatment
  • Inspector reporter

FAQ

Q: What is Polishing?

A: Polishing refers to a machining method that uses mechanical, chemical, or electrochemical effects to reduce the roughness of the workpiece surface to obtain a bright, flat surface. The use of polishing tools and abrasive particles or other polishing media to modify the surface of the workpiece.

Polishing can not improve the dimensional accuracy or geometric accuracy of the workpiece, but for the purpose of obtaining a smooth surface or mirror gloss, sometimes used to eliminate gloss (matting). The polishing wheel is usually used as a polishing tool. The polishing wheel is generally made of multiple layers of canvas, felt, or leather. The two sides are clamped with metal discs. The rim is coated with a polishing agent made of finely powdered abrasives and grease.


Q: Can you Polish CNC Metal Parts?

A: Yes, it can with below ways:

1.Mechanical polishing.

Mechanical polishing is a polishing method that obtains a smooth surface by cutting and plastic deformation of the material surface to remove the polished convex parts. Generally, whetstone strips, wool wheels, sandpaper, etc. are used. Auxiliary tools such as turntables can be used on the surface of the revolving body. If the surface quality is high, the super-precision polishing method can be used. Super-precision grinding and polishing is the use of special grinding tools, in the grinding and polishing liquid containing abrasives, tightly pressed on the surface of the workpiece to be processed for high-speed rotation. The surface roughness of Ra0.008μm can be achieved by this technology, which is the highest among various polishing methods. Optical lens molds often use this method.

2.Chemical polishing.

Chemical polishing is to make the microscopic convex part of the material in the chemical medium preferentially dissolve than the concave part, so as to obtain a smooth surface. The main advantage of this method is that it does not require complicated equipment, can polish workpieces with complex shapes, and can polish many workpieces at the same time, with high efficiency. The core problem of chemical polishing is the preparation of polishing solution. The surface roughness obtained by chemical polishing is generally several 10 μm.

3.Electrolytic polishing.

The basic principle of electrolytic polishing is the same as chemical polishing, that is, by selectively dissolving tiny protrusions on the surface of the material, the surface is smooth. Compared with chemical polishing, the effect of cathode reaction can be eliminated, and the effect is better. The electrochemical polishing process is divided into two steps: (1) Macro leveling The dissolved product diffuses into the electrolyte, and the surface roughness of the material decreases, Ra> 1μm. (2) Low-light leveling Anode polarization, surface brightness increases, Ra <1μm.

4.Ultrasonic polishing.

Put the workpiece in the abrasive suspension and put it in the ultrasonic field together, relying on the oscillation of the ultrasonic wave to make the abrasive grinding and polishing on the surface of the workpiece. Ultrasonic processing has a small macro force and will not cause deformation of the workpiece, but tooling is difficult to manufacture and install. Ultrasonic processing can be combined with chemical or electrochemical methods. On the basis of solution corrosion and electrolysis, ultrasonic vibration is added to stir the solution to dissolve the dissolved products on the surface of the workpiece, and the corrosion or electrolyte near the surface is uniform; the cavitation effect of ultrasonic waves in the liquid can also inhibit the corrosion process, which is beneficial to the surface brightening.


Product Show



Workshop


Testing Equipment

Packaging & Shipping



Product Tags precision cnc machining          precision cnc machine          cnc machining precision          cnc machine precision          cnc precision machining          precise cnc machining          precision cnc machining china          precision cnc machining welding          precision plastic cnc machining
