High speed ps foaming luggage board extrusion line
Quick Details
|
Application:
Sheet
|
Plastic Processed:
PE PVC
|
Screw Design:
Single-screw
|
Voltage:
220v, 380v, 400v, 415v
|
Dimension(L*W*H):
25mx4mx 3m
|
Weight:
5t
|
Product name:
Profile extruder
|
Usage:
Profile
|
Color:
Custom
|
Thickness:
Custom
|
Product:
Imitation wood board
|
Power(W):
90kw
|
Automatic Grade:
Automatic
|
Certification:
CE ISO9001
|
Supply Ability: 10 Set/Sets per Quarter
Packaging Details: wooden case

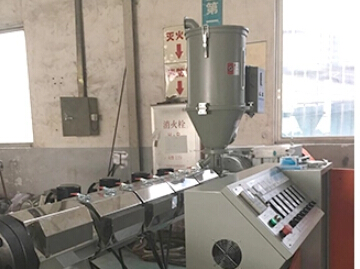

 MAIN EXTRUDER
CHARACTIRISTIGS OF THE HOST:
screw barrel with double metal processing, wear-resisting corrosion resistance.Optimization design of screw using shear small, not easy to cut wood fiber, can make the material stay in the machine time evenly.
|
|

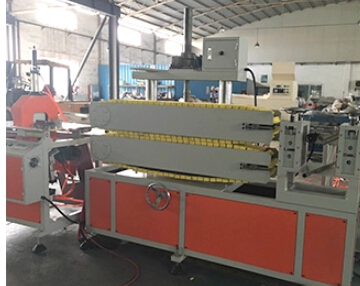

 CATERPILLAR TRACTOR DEVICE
For crawler type plastic traction machine DY type traction machine adopts double caterpillar traction mode . DY-D series tractor for rubber belt type plastic material tractor for rubber belt type plastic material drawer ,with double rubber band traction mode. Main and auxiliary plastic extruder for extrusion plastic pipe and other plastic hose type material .wide application range for convi- ence,stepless speed.
|
|

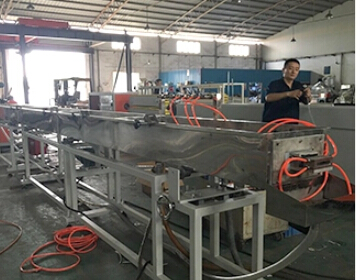

 8 MITER WATER COOLING TAHK
Adopts frequency control of motor speed , intelligent high precison thermometer .belt type tractor ,the machine running balance,low fault rate and easyoperation.bywindingmachineadoptsameri- can techinology,the domostic winding machine performance is betterm. high-speed line when the machine smoothly , no vibration ,uniform winding effect closely .production speed can be easily reached 10m/min
|

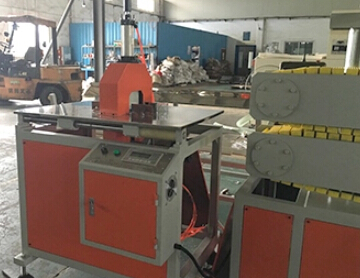

 CHIPLISS CUTTER DEVICE
The professional PS FOAM Profile has no chip cutting ,high accuracy and no cuttings chips , the SKDII blade rotary air feed method is adopted ,the incision is free and smooth , and the fixed length accuracy is within 50 silk.
|
Parameter
|
Model
|
Screw Dia(mm)
|
L/D
|
Main motor power(KW)
|
Capacity (kgs/hr)
|
LXSJ 65
|
ø65
|
28:1
|
22
|
30-40
|
LXSJ 80
|
ø80
|
28:1
|
30
|
40-50
|
LXSJ 90
|
ø90
|
28:1
|
37
|
50-70
|
LXSJ 120
|
ø120
|
28:1
|
55
|
70-100
|
Related Products
FAQ
Q: Are you a factory or trading company?
A: We are a factory in Guangzhou, welcome to visit and check at any time.
Q: What’s the lead time for a whole production line usually?
A: About 25-60days or depends on different production lines.
Q: Will your company offer install and guide service door to door?
A:Yes, oversea installation service is available.
Q:How to deal with the machine problem after 1 year free warranty?
A:1. 24 hour telephone technical service
2. Offer spare part with cost price
3. Door to door service again .
Q: If your company has passed some certificates?
A: Yes, we have passed CE, ISO.
If you are interested in our PS foam plate extruder,Contact now! Tell us the details of your needing.
