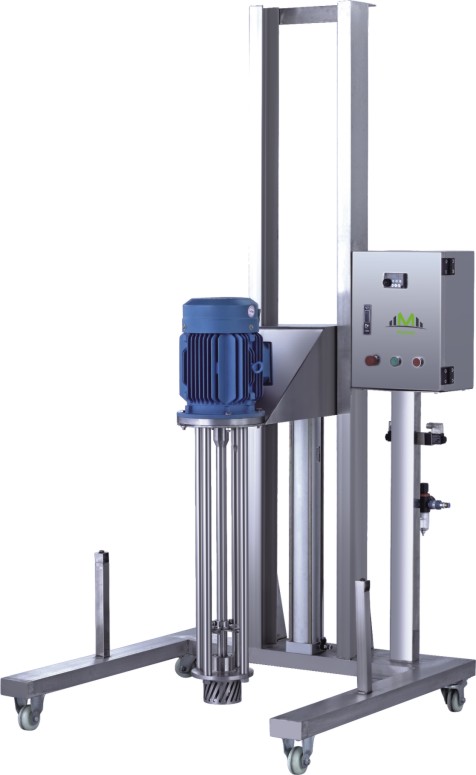

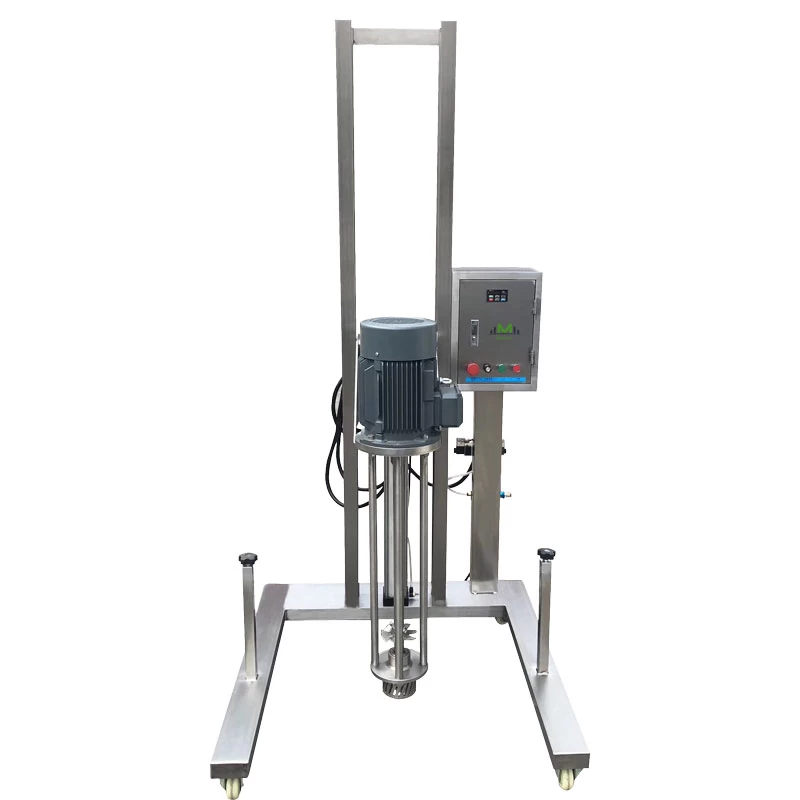

High Speed shear Dispenser machine homogenizer

Our stainless steel High Shear Dispersing Homogenizing Mixer, High Shear Dispersion Emulsifier,is an efficient, rapid and uniform distribution of one or more phases in another continuous phase, and in ordinary cases each phase is insoluble.



High Speed shear Dispenser machine homogenizer

Customized And OEM Service Available

High Speed shear Dispenser

Product descriptions:

MZH- series disperser,High Speed shear Dispenser is designed for low-speed stiminng high-speed disperse, dissolving pf vanous liquid product and power solid product.



1. Working Principle:


High Shear Dispersion Emulsifier working force between grinding media and material is generated from the high-speed rotation of dispersing device(disc, pin or paddle). Under the force of viscous resistance, Grinding media and material moves along with dispersing device and be thrown to the cylinder inner wall by centrifugal force, forming double-circle turbulence. Automatic High shear Dispenser strong inter-movements of grinding media form great cutting, pressing and abrasive force, making the material change shape and generate stress-field. When that stress reaches material yielding and breading limit, the material will be deformed plastically or pulverized. The un-pulverized material will be thrown back to the cylinder inner wall by centrifugal force. In this zone, the density of grinding media reaches the highest point, thus making the pulverization more powerful. The fine final products will be separated from grinding media by separator and be discharged from the bead mill.



2. Machine Features


1. Large capacity, suitable for industrial continuous online production;Bigger shearing force and higher efficiency.

2) Double cooling systems for the chamber and end cap. The dissolvent which is compatible with grinding material can be added as cooling agency to reduce the production loss because of the leakage.

3) Feeding device: USA/Canada/Sweden imported pneumatic diaphragm pump or frequency control gear pump is optional as clients’ requirements. Feeding and discharging tubes are imported USA with good solvent resistant property.

4) High security property. The bead mill will automatically stop working when there is water shortage, air pressure shortage or over-high material temperature.

5) Grinding chamber and rotor is made of high wear resistant alloy steel /Silicon carbide/Ceramics which has no metallic pollution and discoloring. PU and ceramic material are optional according to actual condition.

6) Reasonable design for inner and outer structure allows stable performance with no vibration and noise.

7) Ceramic and PU material are optional.

8) Frequency control and PLC are optional

9) With CE&ISO9001:2008 qualification.

10) Dynamic or static separating system for different material to ensure smooth discharging.




Specifications:

(The parameters are for reference only, the product depends on actual items.)

Powder(KW)

Litre fall height mm

Speed rpm

Mixing volumeL

Dispersion diameter diametermm

Weight

3

900

A; 0-1500

50/150

150

480

4


B;0-3000

80/200

150

500

5.5

1000


100/300

250

900

7.5



100/500

250

930

11



300/800

250

1050

15

1200


300/1000

300

1200

18.5



500/1500

300

1300

22



500/1800

300

1500

30



500/2000

350

2000

37



500/2000

350

2200

45

1400


800/3000

350

2500
