High-speed Thin RG6 Coaxial CCTV Communication Cables

1.CATV-community antenna television;

2. CCTV-closed-circuit televisio

3. DBS-direct broadcasting satellite.

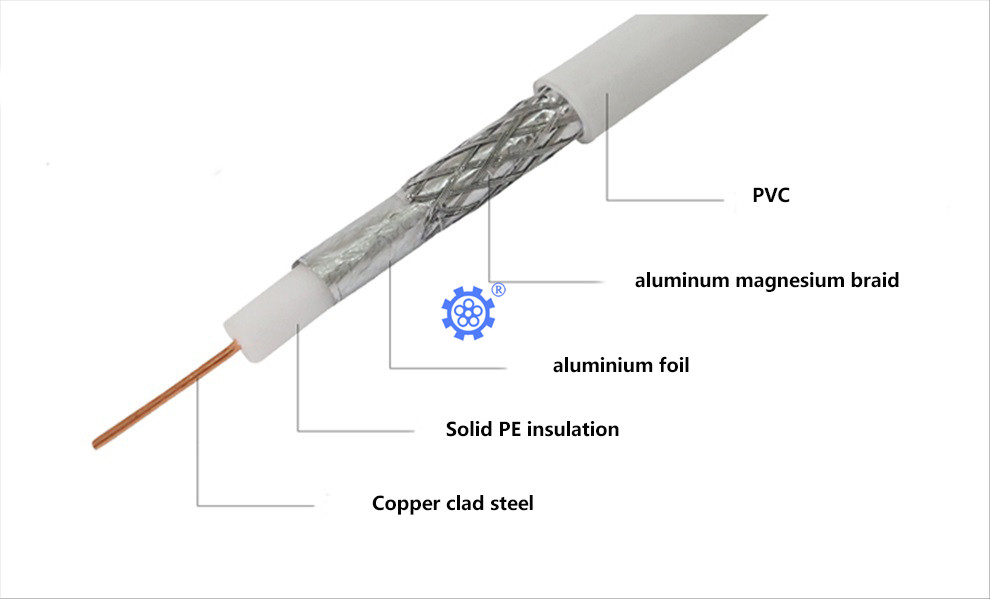

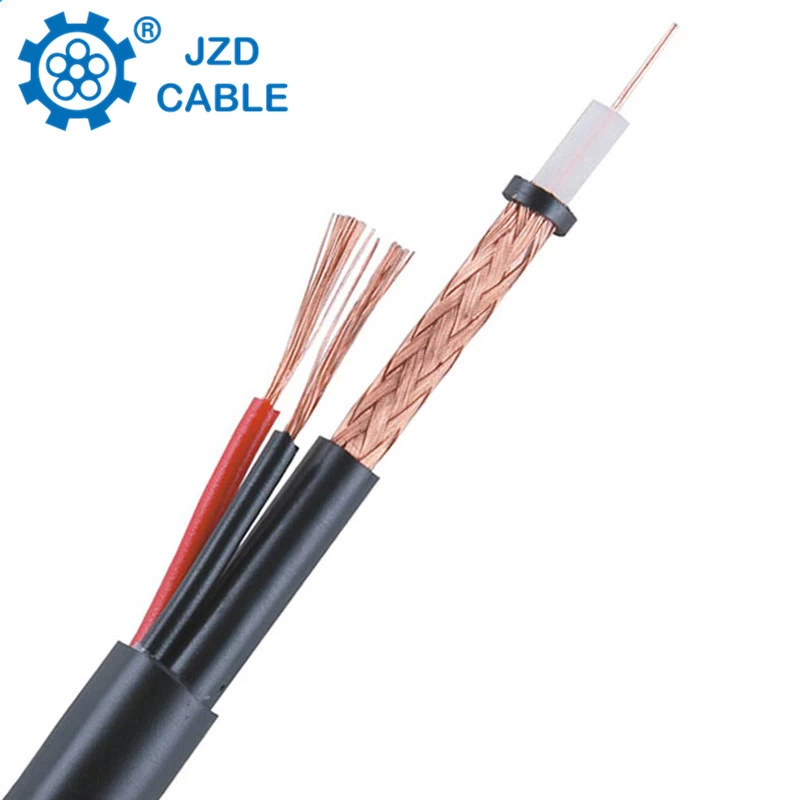

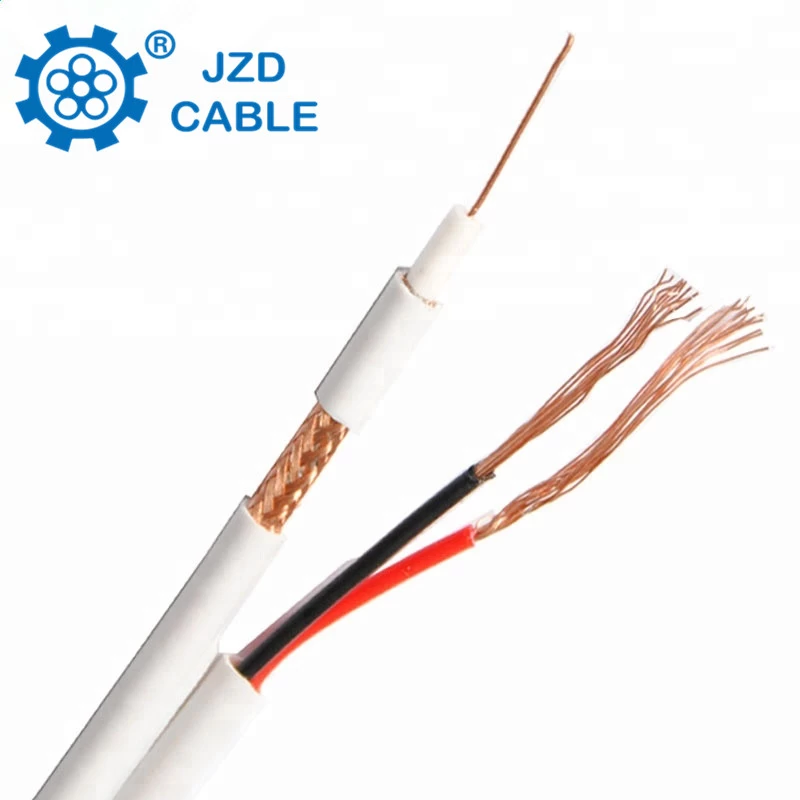

Inner Conductor (Core) 1.02 mm Copper Clad Steel 21-23%(15%)

Insulator (Dielectric) 4.7 mm  Gas Injected FPE / Foam PE

Foil  Aluminium Tape (100 % Coverage)

Shield  Al&Mg braid (60 % Coverage)

Outer Sheath (Jacket) 6.8mm Black or white

Electrical Characteristics:

Impedance 75ohm

Maximum Operating Frequency 3 GHz

Velocity of Signal Propagation  83 % - 85%

Return Loss VHF/UHF 20/18 dB

DC Resistance  inner conductor < 104.7 ohm/km

DC Resistance  Outer conductor< 47.3 ohm/km

Capacitance50 + 3  nF/KM

Structural return Loss

5 MHz – 1000M Hz > 20dB

950MHz – 2250M Hz > 15dB

2250MHz – 3000M Hz > 10dB

Operating Temperature Range- 20 º C to + 75 º C

Minimum Bending Radius60 mm

ELECTRICAL PROPERTIES:

IMPEDANCE: 75.0 +/- 3.0 Ohms

VELOCITY OF PROPAGATION: 85.0% NOMINAL

ATTENUATION @ 68°F (20°C):
