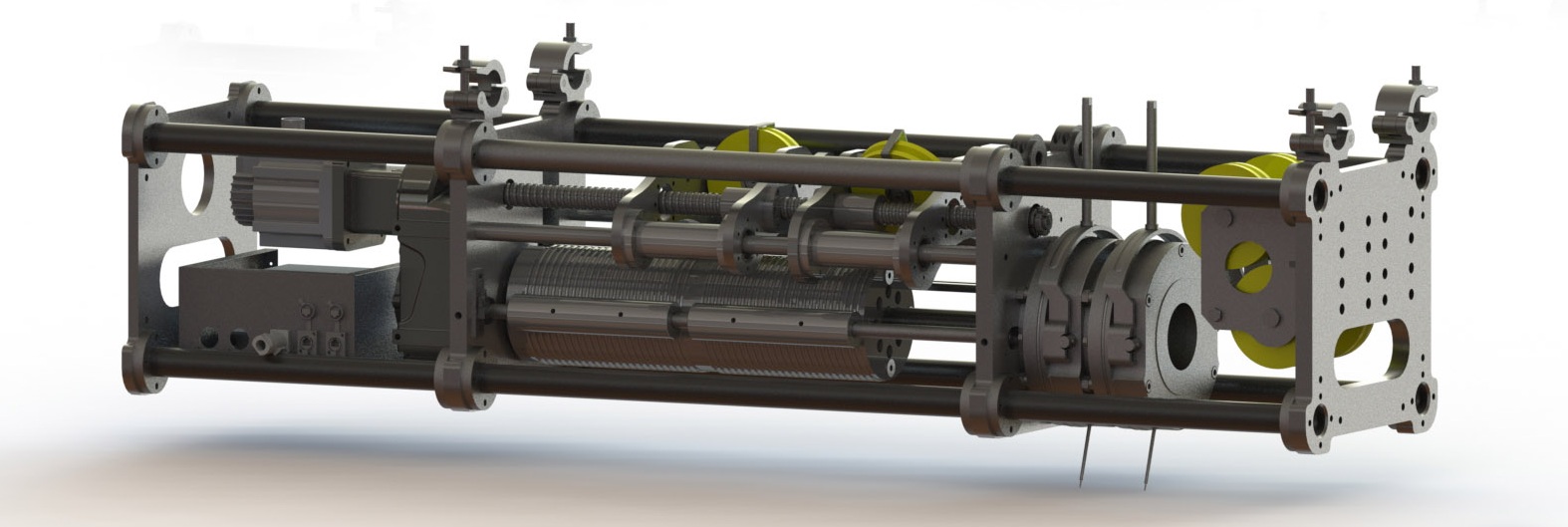

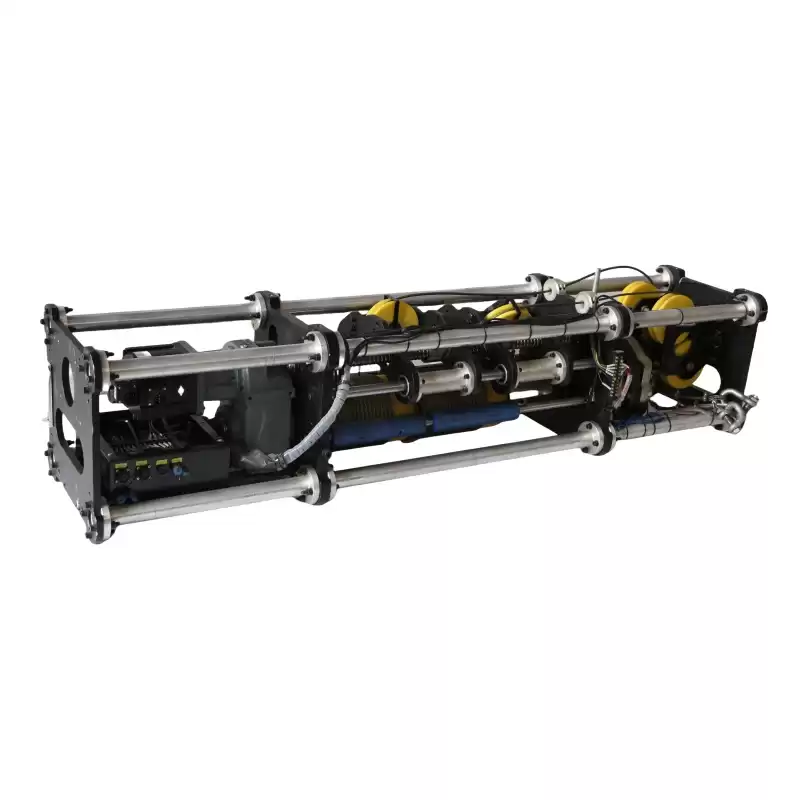

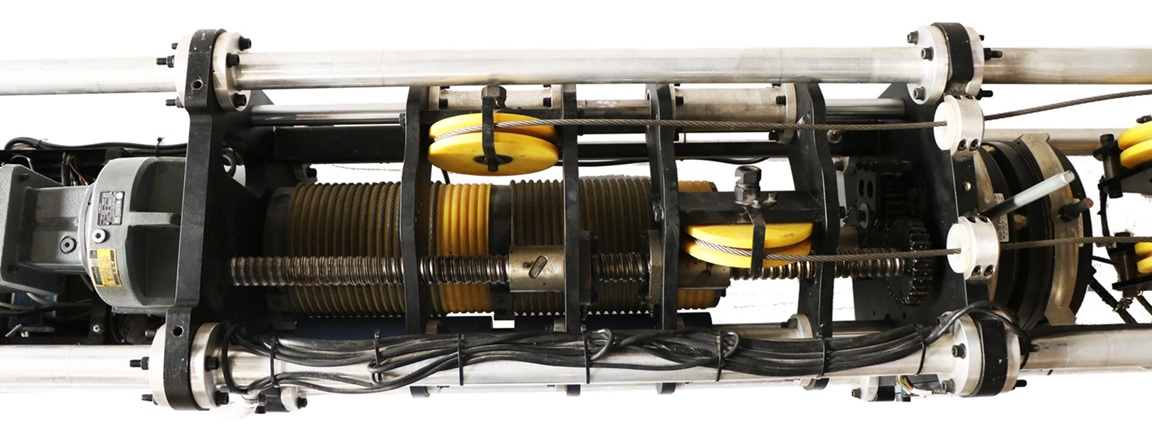

High Speed Winch - Load 200kg, 0.3m/s

Category	Specification
Braking System	Dual electromagnetic brakes (redundant backup)
Motor	AC Absolute Encoder Servo Motor
Control System	BW-Console & Main Controller
Rope System	12:1 safety factor steel cables + anti-tangle device
Installation	Compatible with standard trusses (mobile & permanent)
Load Monitoring	Integrated load cells (GB/T 36731-2018 compliant)

Category	Parameter	Details
Load Capacity	Rated Load	200kg
Speed	Operating Speed	0.3m/s (adjustable)
Rope System	Type/Quantity	Steel wire ropes × 2
Travel Distance	Maximum Height	12m
Safety Features	Primary Protections	Dual limit switches
	Secondary Protections	Dual electromagnetic brakes
	Wire Rope Safety Factor	12:1
Monitoring	Integrated Sensors	Proximity switches, position limiter
	Data Systems	Real-time load monitoring
Emergency Stop	Compliance	EM stop (Category 0)
Physical	Weight	180kg
	Dimensions (L×W×H)	1760×400×390mm
