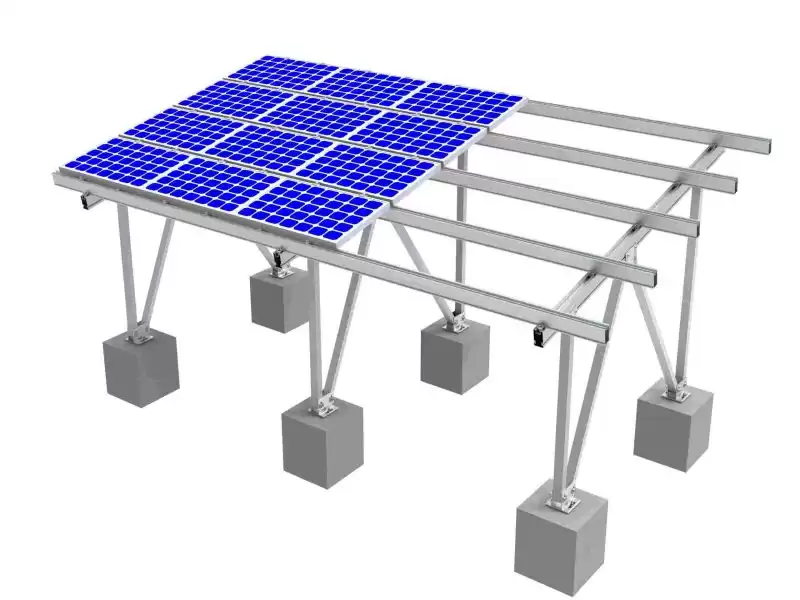

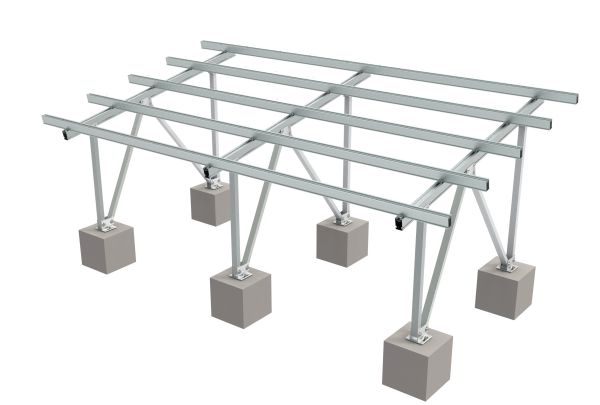

Our Aluminum ground mounting system uses highly anti-corrosion and the most aesthetic structure for ground mount installations
We use Al6oo5-16 material the supporting footing and it can use ground screw or concrete foundations , and achieve vanable inclination and height makeplant design flexible
|

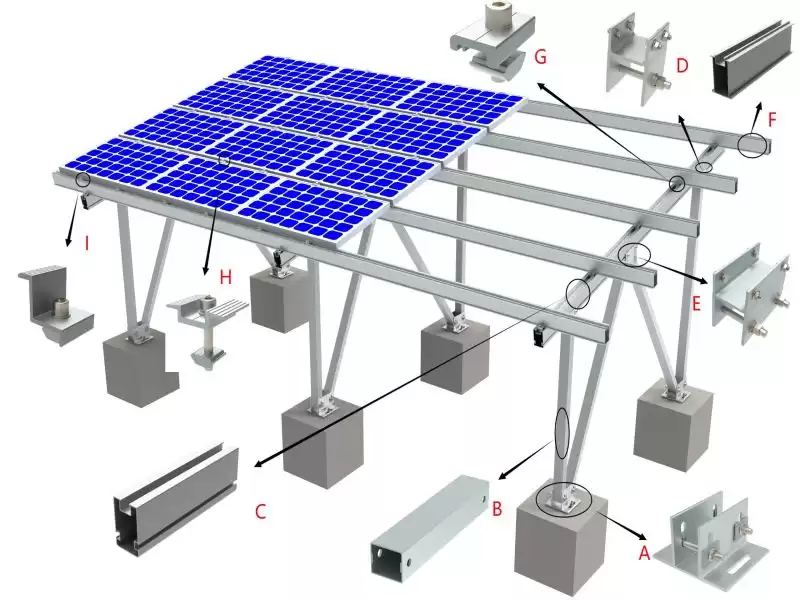

A

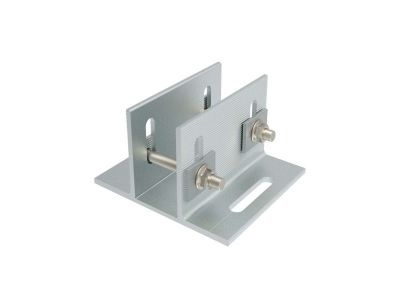

XHF-AG1-FS02, foundation base
|
B

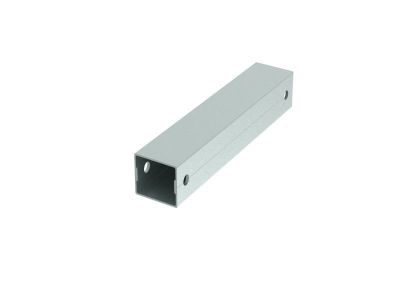

XHF-AG1-FL/RL/TL, front/rear/tilt leg
|
C
XHF-AG3, 03# beam
|
|
D

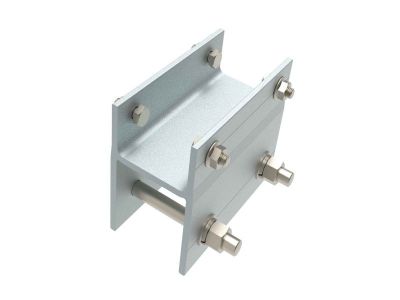

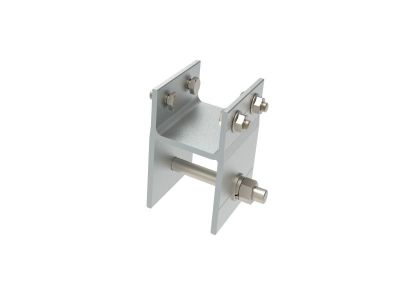

XHF-AG3-CH01,01#H connect
|
E
XHF-AG3-CH02, 02# H connect
|
F

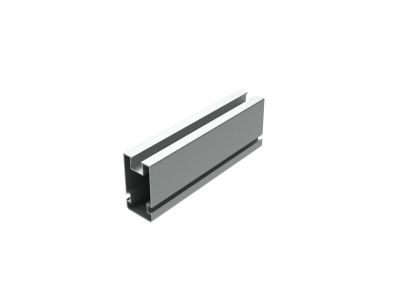

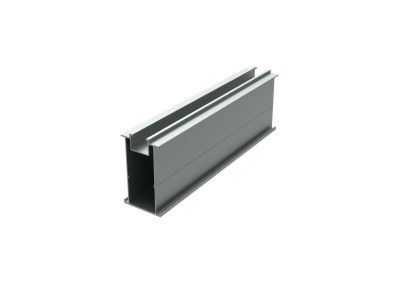

XHF-R01, 01# ground rail
|
|
G
XHF-BR-01# Rail clamp
|
H

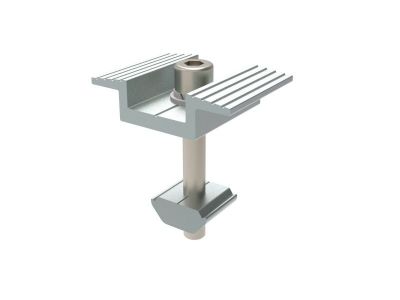

XHF-MC-40, 40mm mid clmp
|
I

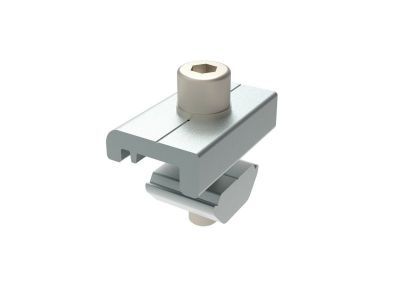

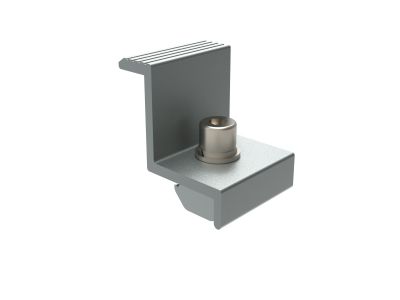

XHF-EC-40, 40mm end clamp
|
|
Parameters
|
|
Strong point
|
Light Weight, Convenient and Durable.Economical
|
Application
|

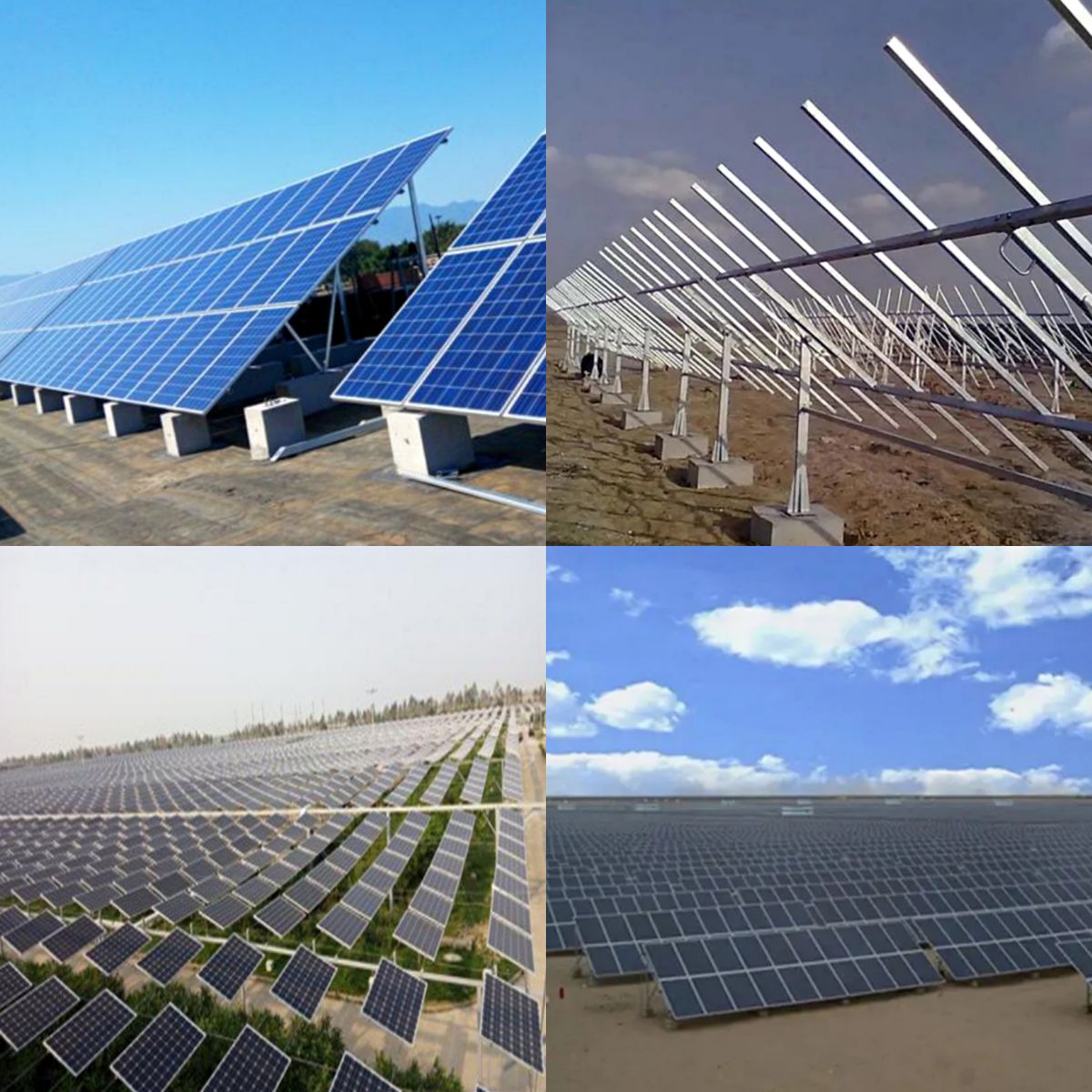

Flat Concrete Roof or Open Filed
|
Max Wind Speed
|
60 m/s
|
Snow Load
|
1.4 KN/m2
|
Material
|
Aluminum 6005-T5 & Stainless Steel 304 Warranty: 10 years warranty; 25 years service life.
|
Foundation
|
Ground screw or concrete block
|
Tile Angle
|
0-60°
|
Thesolar roof mounting systemwith high strength material and It is mostly used in solar residential installation
the side holes can be quickly fixed and meet the European standard
It can install framed or frameless solar modules.
We developed to make PV projects for flat roofs more economical, durable and reliable
1, Fast Installation: Most of parts is pre-assembled
2, Flexible Application: This system not only can be installed on ground screw for standard circumstance but also installed on concrete foundation for tricky terrain like soft or rocky ground.
3, Economical: The mounting structure is a cost effective mounting solution.
4, Long lifespan : All mounting structural components are made of high aluminum alloy, their high resistance to corrosion and complete recyclability.
|
Step1:

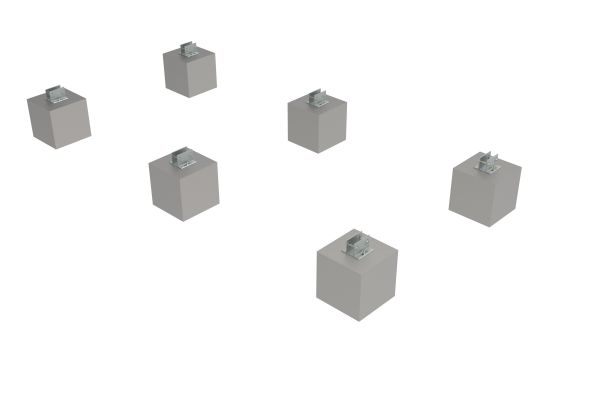

Fix foundation base on concrete block or ground screw
|
Step2:

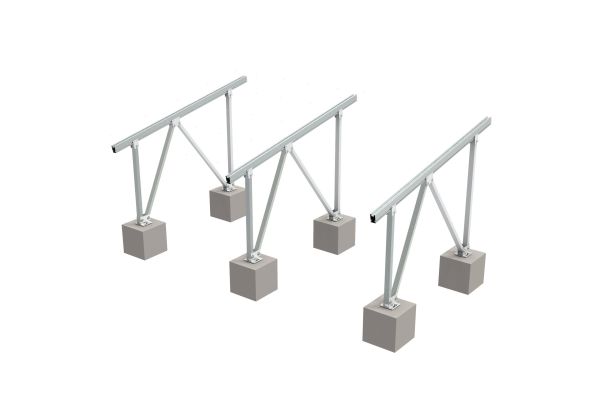

Fix pre-assembled beam
|
|
Step3:
Fix ground rail on beam one by one and fix the panel oin the rail
|
|
Xiamen Xhfsolar Industrial Co., Ltd. ("Xhfsolar") is one of the few large factories in Xiamen, Fujian Province, which was established around 2010. The factory covers an area of about 50,000 square meters, with an annual output of about 8GW.
We're a high tech enterprise specializing in design, development, production and sales for solar mounting. With more than 10 years of industry experience and experienced engineer team, Xhfsolar provides roof mounting solution, ground mounting solution, agricultural mounting solution and solar carport etc.. Besides, we also have advantages in floating mounting, vehicle bracket, aluminum alloy frame, fence. In particular, the annual production capacity of ground screws can reach 800,000pcs.
Our products conform to international standards and pass EN standards. In addition, we have passed strict international quality certification such AS JISC8955, ISO9001 quality management system, AS/NZS 1170, TUV, UL, CE and CPP. Our products are sold to more than 100 countries including Japan, Europe, the United States, North America, and southeast Asia, and have been well received by our customers due to our high quality and low costs.
Price
|
Because we are a factory with a large production scale, our price will be more competitive than other suppliers
|
Quality
|
At present, we have qualified the AS/NZS 1170, TUV, UL, CE, CPP and other international certifications , and we will strictly follow the requirements in the production process. What's more we can provide the production schedule to you so that you can understand the production schedule
|
Market
|
Up to now, we have exported to Africa, the Middle East, Southeast Asia, the United States, Japan and European markets
|
Delivery time
|
7-30 days
|
Payment term
|
Flexible
|
Tech support
|
OEM,OGM
|
After Service
|
10 years warranty+ 25 long service
|
