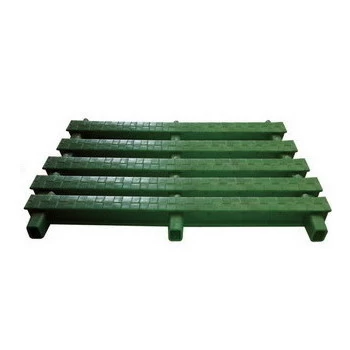

Anti-UV Swimming Pool Plastic Drain Grating Specification:
| Item No. |
MJ-G30 |
| Material |
HDPE and flat steel (Outer plastic, inner steel) |
| Size |
300x20x30mm |
| Other Available Size |
200x20x20mm, 250x20x25mm |
| Color |
Green (Other color can be customize) |
| Shape |
One faucet or two faucet |
| Pressure Strength |
400KN (41Ton/Sqm) |
| Unit Weight |
150g/pc |
| Hardness |
86 |
| Water Drainage Rate |
95% |
| Vertical Circulating Capacity |
50cm3/s |
| Water Retention |
3.5litre/m2 |
| Elongation |
9% |
| Tensile Strength |
250MPa |
| Application |
Swimming pool, gutter, ditch, landscape pool, spa, basin, anti-skid slot of drain etc. |
| Package |
45pcs/bundle, 0.6m3/bundle |
Introduction About Overflow Grating:
Overflow Dran Grating uses high density polyethylene (HDPE) and flat steel as raw material. With high strength, corrosion resistance, fast drainage, easy installation feature, overflow channel grating is the best solution for swimming pool and other grating. If combined with pebbles the drain grate will have beautiful landscape and excellent drainage effect.
Our plastic drain grating confirms to international standards, the particular comb-like structure effectively slows down the speed of waves. Our professionals make sure of injection molding, which make the products resistant to harsh weather tested of various parameters by our able quality analysts and defective parts are immediately removed.
The most popular size of pool overflow grating, the 300mm wide product can be found in pools all across China. The modular design makes our overflow grating easy to install and maintenance.
Plastic Grating Feature:
- Solid and Corrosion Resistant(Outer plastic plus inner steel);
- UV treated, high tensile strength, excellent quality;
- Durability and accurate dimensions;
- Anti-slippery and very comfortable;
- Available in different sizes and colors;
- Attractive, non-slip top surface;
- Recoverable, recycle, classical environment protection material;
- Anti-slip and wear-resistant for long life;
- Environmental friendly, non-pollution, no toxic chemicals;
- Easy installation and easy to clean and maintenance convenient;
- Water-proof, weather resistance, flexible and strong arcing curves;
- Ideal for overflow systems of swimming pool and spa;
Plastic Overflow Grating Main Material:
Overflow Grating Construction Section View:
Project:
