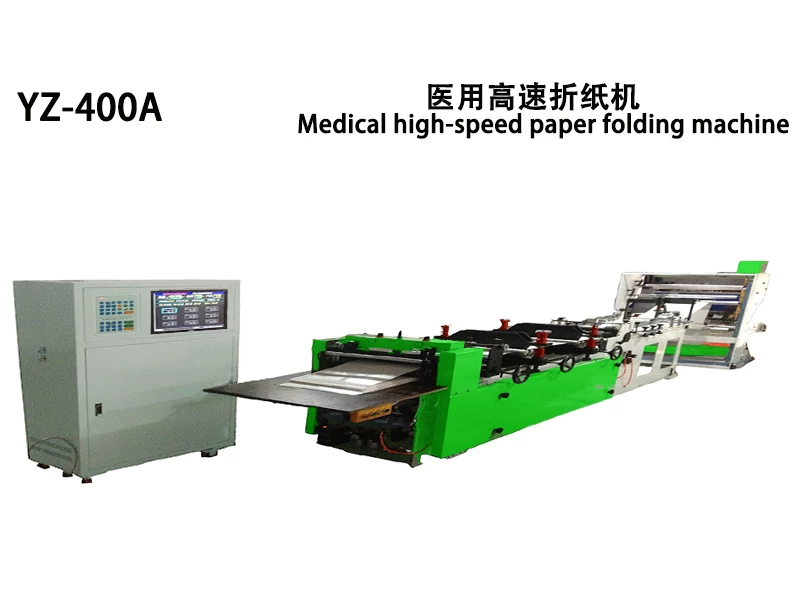

High-speed Medical Paper Folding Machine
Application:

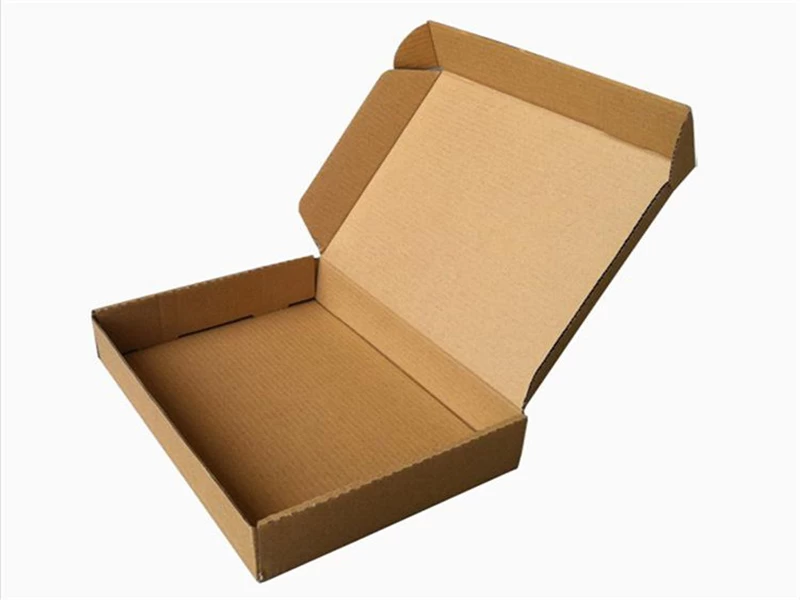

The YZ-400A medical high-speed paper folding machine is widely used to fold paper in medical industry in order to make medical paper box and instrument package. Chiefly characeterized by integrated advanced devices and parts, the machine runs smoothly in high speed so as to meet clients’ requirements.
Features:
●YZ-400A medical high-speed paper folding machine is equipped with the latest discharging device, automatic deviation correction with magnetic powder tension, pneumatic balance tension, imported photoelectric tracking device and servo motor to control fixed length.
●Controlled by industrial computer, the machine shows parameters by CRT and adjusts speed through imported frequency converter.
●It adopts synchronous control between discharging analog quantity control and host analog quantity control, also utilizes skills of single or secondary heat sealing and impressed characterized by high accuracy and speed. Pressure will be controlled by heavy-duty spring device.

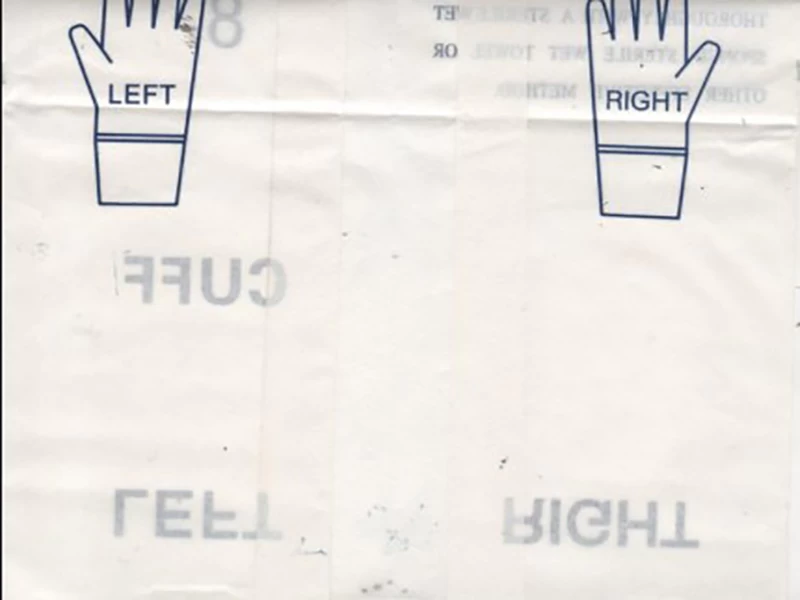

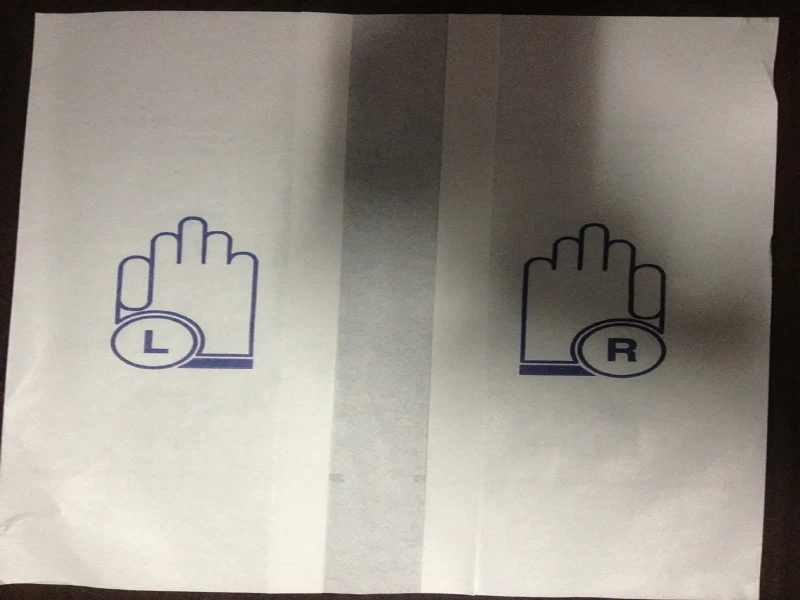

●The machine is the ideal facility to produce medical packing bag & paper, paper plastic and inside pocket of medical gloves.
Main parameter:
|
Bag-making speed
|
Max speed: 30-150 pcs/min
|
|
Bag-making length
|
30-400mm (paper folding for 800mm)
|
|
Bag-making width
|
Max width: 400mm
|
|
Unwinding diameter
|
MaxΦ700mm (double discharge)
|
|
Bag-making precision
|
≤±1mm
|
|
Temperature control
|
0-400℃
|
|
Total power
|
19kw
|
|
Weight
|
2600kg
|
|
Dimension
|
6500*1150*1600mm
|
More details
Why choose us?
●16 years focus on pouch making machine!Our expericnec is your advantage!
●Direct manufacturer(own factory)!
●Pouch making machine get Japan Panasonic and European engineer’s praise!
●480 set machine installed!
●2 years warranty time!
●Origin Idea ,design by our own engineer,accept OEM or ODM!
●Highed skilled engineer ,easy operation!
●Turn-key project, remote support on line!
●Photos and videos can be taken while testing the machine, so that you can check the specifications and quality on line!
●Qualified machine under global safety standards to guarantee production safety and workers security.
