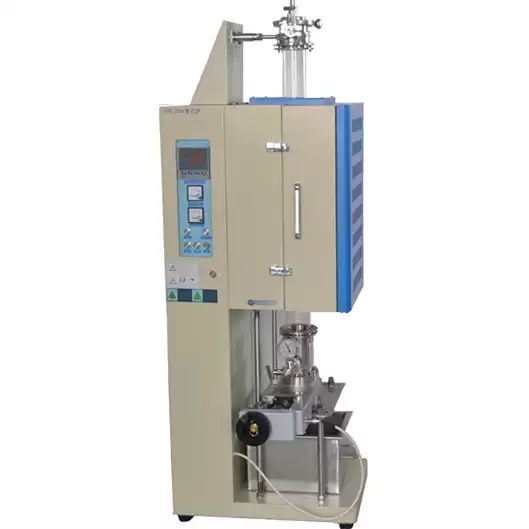

High Temperature 1200C Vertical Tube Quenching Furnace For Heat Treatment

Sales Manager: Andrea

Email: Andrea@tmaxlaboratory.com

Wechat: 18250801164


  • Warranty Two years limited warranty with lifetime technical support
  • Certificate CE, IOS, ROHS, SGS, UL Certificate

High Temperature 1200C Vertical Tube Quenching Furnace For Heat Treatment


Detailed technical parameters

Model

VTL1200-I

VTL1200-II

 Power

3.5  KW

3.5  KW

 Tube size

Dia 60(OD) X1000mm

Dia 80(OD) X1000mm

Supply voltage

220V

Phase

single phase

Heating element

Resistance wire

Control mode



 Use Yudian program temperature control instrument (standard)

1. 30-segment program temperature control intelligent PID adjustment.

2. With over-temperature protection, the electric furnace heating circuit will be automatically cut off when the temperature is over-temperature or when the couple is broken. ON, the ON light on the panel is off, the OFF light is on, and the electric furnace is limitedly protected).

3. With 485 communication interface (standard with optional software)

4. It has a power failure protection function, that is, when the furnace is powered on after the power is turned off, the program does not start from the initial temperature, but starts from the furnace temperature when the power is turned off.

5.The meter has the function of temperature self-tuning

Lab High Temperature 1200C-1700C Vertical Tube Quenching Furnace for Heat Treatment

(replacement of imported instruments requires additional payment and purchase)

 Lab High Temperature 1200C-1700C Vertical Tube Quenching Furnace for Heat Treatment

FP93 control instrument(SHIMADEN)       EUROTHERM      touch screen

Break couple protection

and display

Yes

Over-temperature protection

Yes

Overcurrent protection

Yes

Control precision

+/- 1 ℃

Flip-flop

Phase-shifted trigger

Electric appliance

Zhejiang chint

Silicon controlled

106/16E SEMIKRON

Max temp

1200 ℃

Rated temp

1150 ℃

Heating rate

≤30 ℃/ Min (can be modified as required)

Recommended heating rate

≤15℃/ Min

Thermocouple Type

Heating length

440mm

Electrical certification

CE

Ambient surface temperature

≤45℃

Vacuum seal flange

and valve

1. A stainless steel sealing flange and stainless steel needle valve are installed on the top of the furnace body.

2. A plug-in valve, a non-mechanical pressure gauge and a KF-25 vacuum interface are used to connect the vacuum pump at the bottom of the furnace body.

3. Vacuum degree: The vacuum degree of the mechanical pump can reach below 1Pa. If you want to obtain a higher vacuum degree, you can choose a domestic or imported high vacuum unit.

Optional: The following accessories increase vacuum efficiency

4.KF25 stainless steel bellows, KF25 quick remover clamp

5. Optional anti-corrosion digital vacuum gauge with a measurement range of 3.8x10-5 to 1125 Torr. No coefficient conversion is required due to different types of measurement gases.



6. At the top of the flange is installed an electromagnet sample hanging device that can withstand a maximum of 500g. As shown in Figure 1, the sample is hung on the hook through the hanging wire, as shown in Figure 2. Click the control button of the sample hanging device of the electromagnet. The hanging wires fall together into the quenching box, as shown in Figure 3. Before releasing the sample, 5 PSI of argon must be flushed in and the manual flapper valve at the bottom of the furnace tube opened. Pic 4 is the hanging wire



      Pic 1               Pic 2                   Pic 3               Pic 4

Quenching container

1.A stainless steel box for quenching liquid is fixed at the bottom of the furnace tube

2. A large manual plug valve is installed between the bottom of the furnace tube and the liquid box

Warranty period

One year warranty and lifetime technical support

Special Note:

1. Consumable parts such as heating elements, furnace tubes, sample crucibles, etc. are not included.

2. Damage caused by the use of corrosive gases and acid gases is not covered by the warranty.



Precautions

1. The air pressure in the furnace tube cannot be higher than 0.02MPa.

2. Due to the high internal pressure of the gas cylinder, a pressure reducing valve must be installed on the gas cylinder when gas is introduced into the furnace tube. To ensure safety, it is recommended to use a pressure below 0.02MPa.

3. When the furnace tube used is corundum tube, when the furnace temperature is higher than 1500 ° C, the furnace tube cannot be in a vacuum state, and the pressure in the furnace tube must be equal to the atmospheric pressure.

4. The gas flow entering the furnace tube needs to be less than 200SCCM to avoid the impact of the cold air flow on the hot furnace tube.

5. For the experiment of sample heating, it is not recommended to close the suction valve and inlet valve of the flange end of the furnace tube. If you need to close the gas valve to heat the sample, you must always pay attention to the indication of the pressure gauge. If the pressure is greater than 0.02MPa, you must immediately open the exhaust valve to prevent accidents (such as furnace tube rupture, flange flying out, etc.) .

6. Do not use graphite crucibles in alumina tubes.
