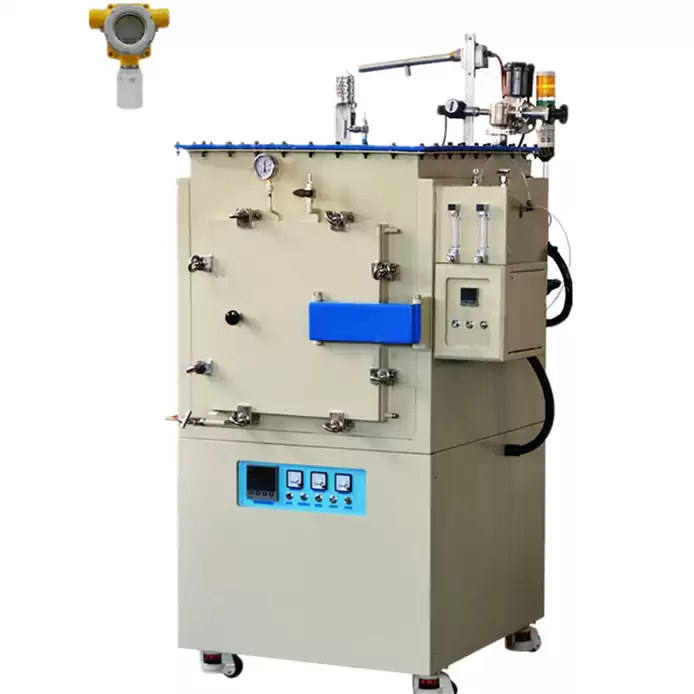

High Temperature 1700C H2 Hydrogen Atmosphere Furnace

Sales Manager: Andrea

Email: Andrea@tmaxlaboratory.com

Wechat: 18250801164


  • Warranty Two years limited warranty with lifetime technical support
  • Certificate CE, IOS, ROHS, SGS, UL Certificate

High Temperature 1700C H2 Hydrogen Atmosphere Furnace

Detailed technical parameters

Model

1700C-1

1700C-2

  1700C-3

Power

4 KW

8KW

16KW

Chamber size(mm)

160X150X150

300X200X200

400X300X300

Overall dimensions

(mm)

550X470X810

600X 610X860

700X 710X1355

Voltage

220V

380V

phase

one-phase

one-phase

Heating element

Type 1800 molybdenum wire

Control mode

 UAV program temperature control instrument (standard)

1, 30-stage program temperature control intelligent PID adjustment.

2, with over-temperature protection When the electric protection furnace is over-temperature or broken, the electric furnace heating circuit is automatically cut off, (when the electric furnace temperature exceeds 1720 degrees or the thermocouple is blown,

The AC relay on the main circuit will be automatically disconnected, the main circuit will be disconnected, the ON light on the panel will be off, the OFF light will be on, and the electric furnace will be limited.

3, with 485 communication interface (standard when purchasing software)

4, with power-off protection function, that is, when the power is turned off after the power is turned off, the program does not start from the starting temperature, but rises from the power-off time.

5. The instrument has the function of self-setting temperature


(replacement of imported instruments, additional charge is required, optional)



FP93 temperature controller        European instrument       Touch screen instrument


Chamber materials

Type 1800 alumina polycrystalline fiber (over 95% alumina content)

control precision

+/- 1℃

flip-flop

Phase shift trigger (with soft start and current limit function)

Current limiting function: No matter how to adjust the heating time, the secondary current of our electric furnace after passing through the transformer is limited to 160A, which has limited protection of the equipment, no matter how you operate, it will not burn out the equipment.

Soft start function: the current will increase slowly when starting up, and the impact on the heating element is small, which is beneficial to the extension of the life of the heating element.

electric appliance

Zhejiang chint

silicon controlled

106/16ESEMIKRON

maximum temperature

1600℃

rated temperature

1550℃

heating rate

≤20℃/ Min(can be modified as required)

Recommended heating rate

≤10℃/ Min

Thermocouple Type

Type B

air switch

The furnace body is equipped with an air switch

Explosion-proof valve (optional)

 Electronic explosion-proof pressure can be set as required

Peripheral surface temperature

≤45℃



Hydrogen Atmosphere Furnace


 Tmax CE

 TMAX Partner

CVD furnace


tube furnace


muffle furnace



1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
