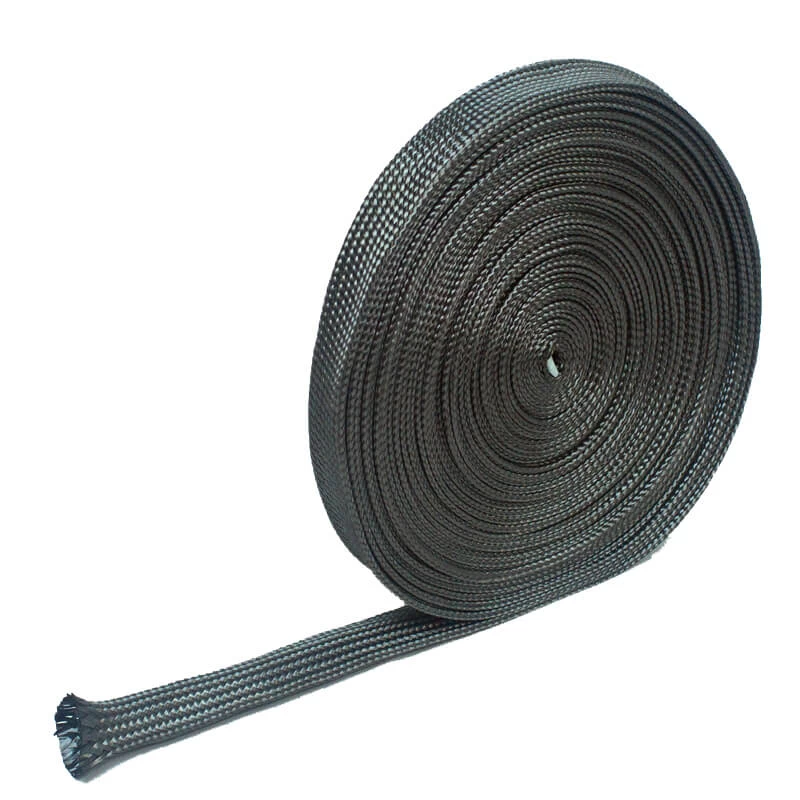

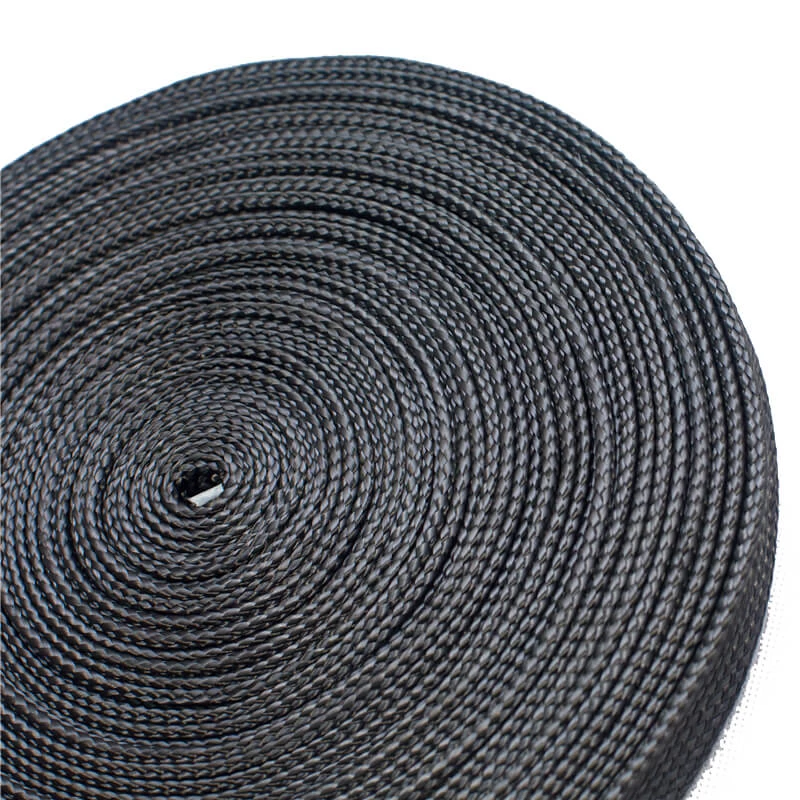

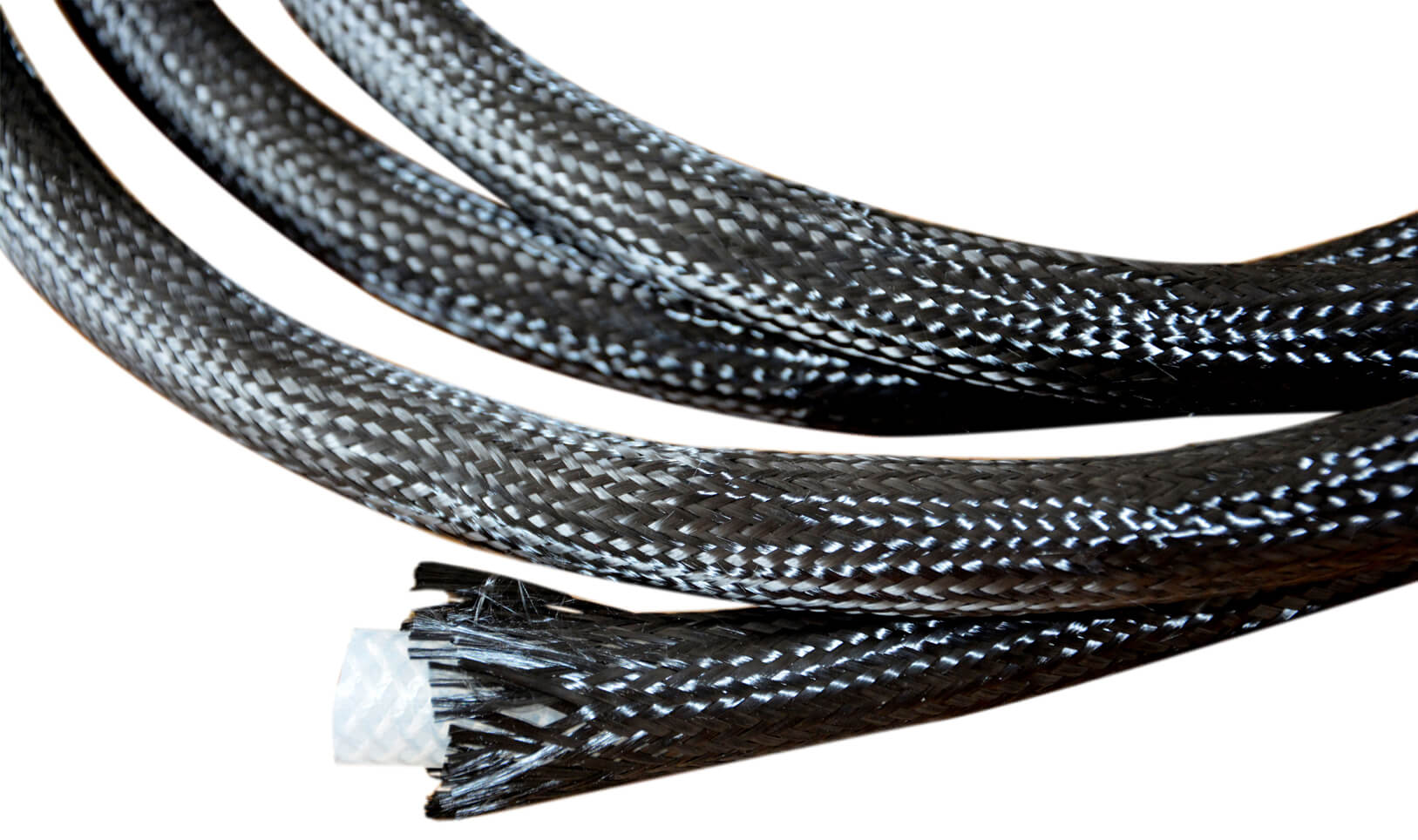

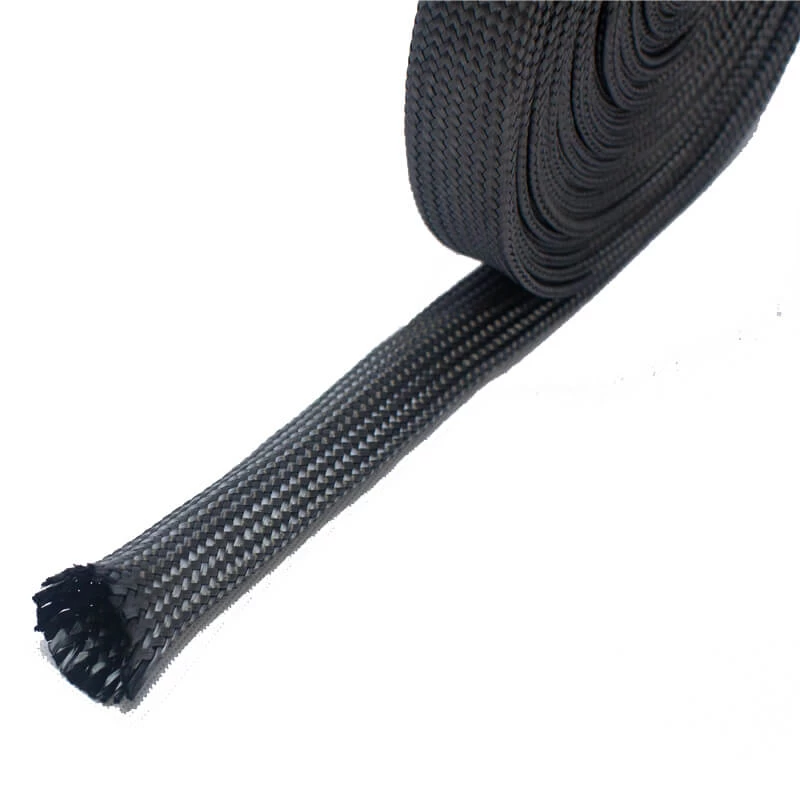

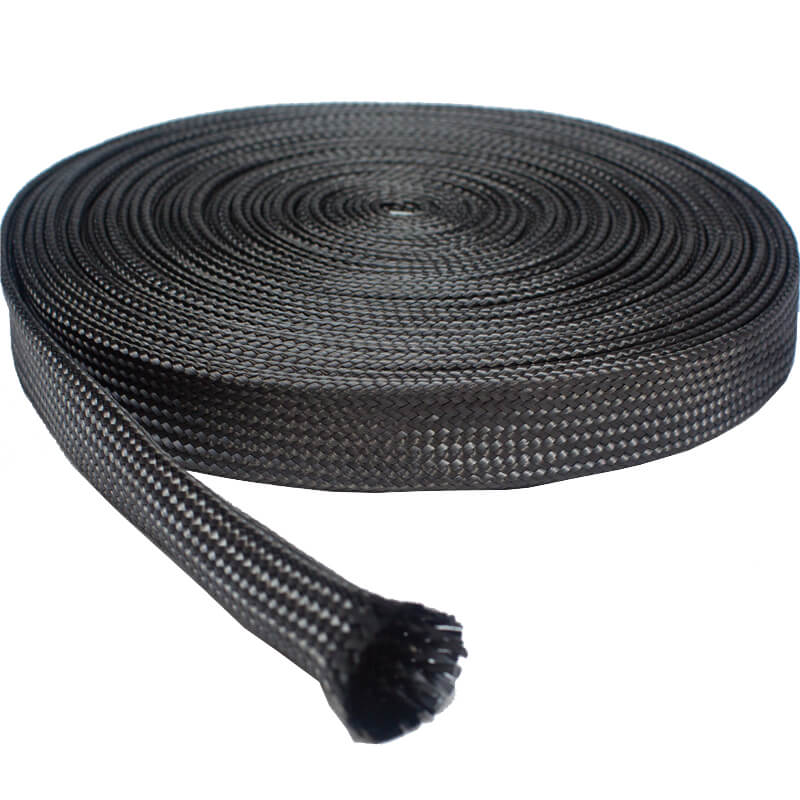

High temperature resistant carbon fiber sleeve
1.Product Introduction
ZBAO Carbon Fiber Sleeve is braided by high quality carton fiber. Carbon fiber is a kind of new material with excellent mechanical property. It has good character of high strength, light weight, good flexibility, fire proof, high temperature resistance, anti-aging, acid and alkali resistance. The carbon fiber sleeve widely used to protect hoses, wires and cables from high temperature in Automotive industry, Aerospace industry, Medical equipment industry and Rail vehicles industry.
2.Product Characters
|
Size/Inner diameter
|
8mm-80mm
|
|
Working temperature
|
650 ℃
|
|
Flammability
|
VW-1
|
|
Colour
|
Black
|
|
Character
|
High strength, light weight, good flexibility, fire proof, high temperature resistance,anti-aging, acid and alkali resistance
|
|
Other Character
|
Electric conductivity, Thermal conductivity
|
3.Standard Specifications
|
ZBAO Part No.
|
Inner Dia./mm
|
Thickness/mm
|
Weight. g/m
|
|
ZBCF-S-8-12
|
8-12
|
0.8-0.9
|
10
|
|
ZBCF-S-20-40
|
20-40
|
0.8-0.9
|
20
|
|
ZBCF-S-15-25
|
15-25
|
1.3-1.5
|
20
|
|
ZBCF-S-30-50
|
30-50
|
1.3-1.5
|
40
|
|
ZBCF-S-20-35
|
20-35
|
1.8-1.9
|
40
|
|
ZBCF-S-40-70
|
40-70
|
1.8-1.9
|
80
|
|
ZBCF-S-20-30
|
20-30
|
1.3-1.5
|
18
|
|
ZBCF-S-50-80
|
50-80
|
0.8-0.9
|
29
|
ZBAO fire sleeve guard your personnel and cut your energy losses,factory direct sale! Contact now.
