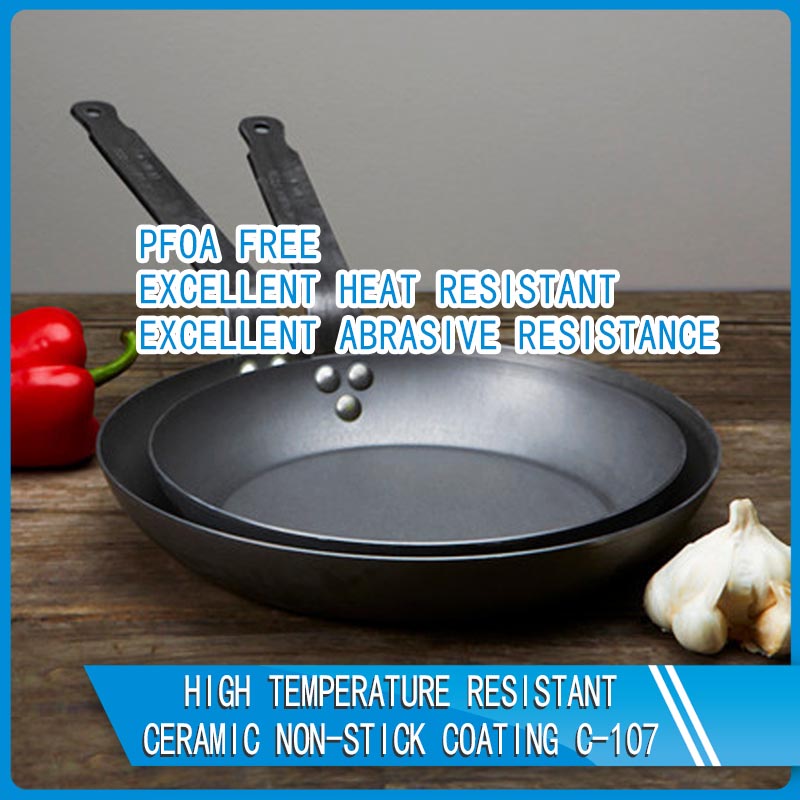

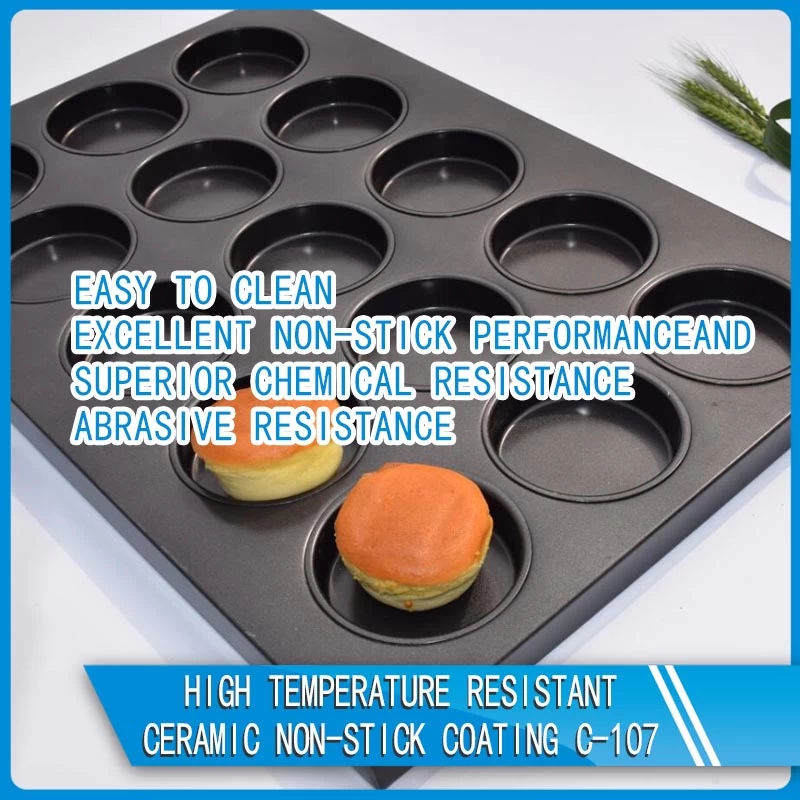

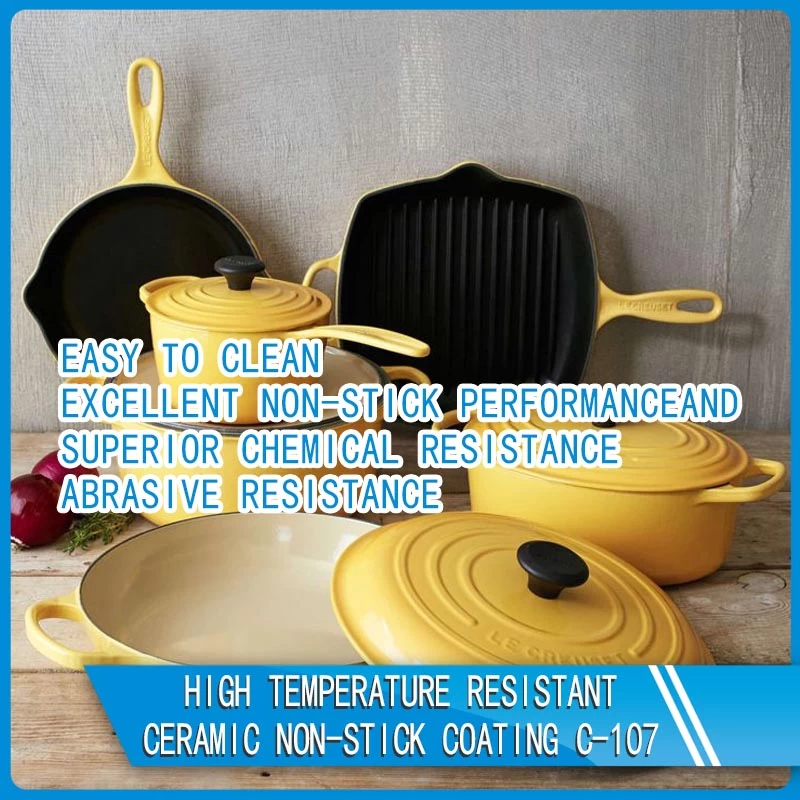

High temperature resistant ceramic non-stick coating C-107

S-200 is particularly designed for baking operation, and features extraordinarily glossy surface, outstanding stain resistance, non-stick performance and superior scratch resistance. The surface is easy to clean after baking operation. It has a very good operability, it is workable at 200℃, can be widely applied on the inside coating of iron bakeware.



Description

High temperature resistant ceramic non-stick coating C-107 is High temperature resistant ceramic non-stick coating composed of nano ceramic materials. It can resistant to 800℃ with superior chemical resistance and abrasive resistance.


Type

Ceramic nano material


Key features

-PFOA free

-Excellent high temperature resistant (>800℃)

-Excellent non-stick performance and easy to clean

-Superior chemical resistance and abrasive resistance


Typical properties

Appearance: Black

Solid content (%): 40±1

Viscosity (cp): 400~800

Density (g/ml): 1.18

Color of the film surface: Black

Curing temperature (℃): 250-280

Gloss (60° glossimeter): 0-5

Film thickness (μm): 12-20

Corrosion resistance: No blister (5% H2SO4 for 24 hours)

Corrosion resistance: No blister (Boling 10% salt water for 24 hours)

Abrasion resistance 3KG/21cm2: >20000 cycles

Hardness (ZHONGHUA pencil): ≥8H


Application

-Aluminum and stainless steel fry pan, wok, soup pot, rice cooker, electric pressure cooker, electric saucepan, electric baking tray, cake mould etc.


Storage and handling

-Available in 20 kg/ barrel or 30 kg/ barrel

-Store products in tightly closed original containers at 5-40℃

-Shelf life: 9 months from delivery date

-According to non-dangerous goods transport


Non-stick Coating Type

↓ ↓ ↓ Please click product model for more informations

Model Layer Thickness Curing temperature Non stick property Anti-corrosion Abrasion resistant
  Water based fluororesin non-stick coating
PF-600 2 25-40 380-400 A A A A A A A A A A A A
PF-601 2 25-35 380-400 A A A A A A A A A A A
PF-602 2 25-40 380-400 A A A A A A A A A A A A
PF-610 3 20-35 380-420 A A A A A A A A A A A A A
PF-611 3 20-35 380-420 A A A A A A A A A A A A A
PF-612 3 20-35 380-420 A A A A A A A A A A A A A
  Water based ceramic non-stick coating
C-104 1 30-45 280-300 A A A A A A A A A A A A A A
C-105 1 30-45 280-300 A A A A A A A A A A A A A A
C-106 2 34-50 280-300 A A A A A A A A A A A A A A
C-107 1 12-20 250-280 A A A A A A A A A A A A A A
C-108 2 34-50 280-300 A A A A A A A A A A A A A A
C-109 2 34-50 280-300 A A A A A A A A A A A A A A
  Silicone resin non-stick coating
S-200 1 15-20 280-300 A A A A A A A A A A A A A
S-201 1 15-20 280-300 A A A A A A A A A A A A A A
S-202 1 15-20 280-300 A A A A A A A A A A A A A
