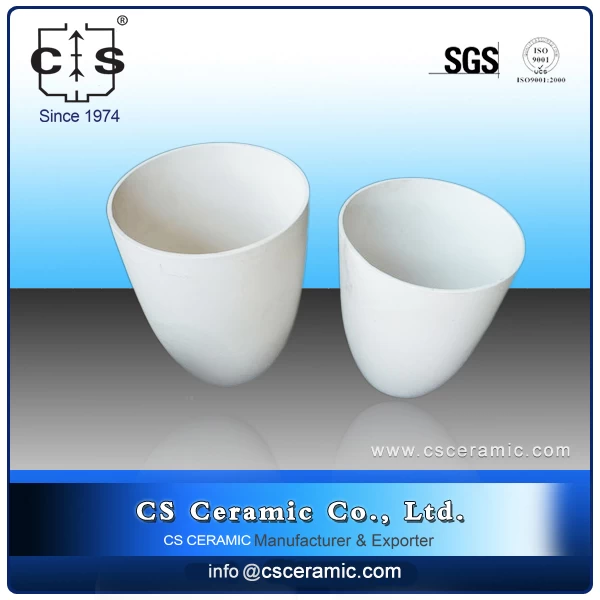

Product Item: High Temperature Y2O3-ZrO2 Zirconia Ceramic Crucible
Brief Introduction.
CS Ceramic CO.,Ltd supply high quality zirconia ceramic crucible.
Material is yttria fully stabilized zirconia (Y203-ZrO2), other material like Cao-ZrO2, MgO-ZrO2 are available.
Our Zirconia ceramic crucible can be used at very high temperature, 2200C at most.
Our zirconia ceramic crucible is made by ISO pressing, It can be machnined to make a tight tolerance.
|
Chemical content
|
ZrO2
|
86 wt%
|
|
Y2O3
|
14 wt%
|
|
Physical Properties
|
Melting point
|
≥2500℃
|
|
Max. operating temperature
|
2200℃
|
|
Color
|
White
|
|
Density
|
5.8g/cm3
|
|
Mechanical properties
|
Flexural strength
|
200MPa
|
|
Young’s module
|
200GPa
|
|
Hardness(HRA)
|
86
|
|
Thermal properties
|
Thermal expansion coefficient(20℃)
|
8-10X10-6
|
|
Thermal conductivity
|
1-2W/mk
|
|
Electrical properties
|
Dielectric constant(1MHz25℃)
|
12
|
|
Electrical resistivity(25℃)
|
109
|
If need open new mould, please send us detail specification and design drawing firstly, we'll reply you in 24 hours. Contact email: info@csceramic.com
