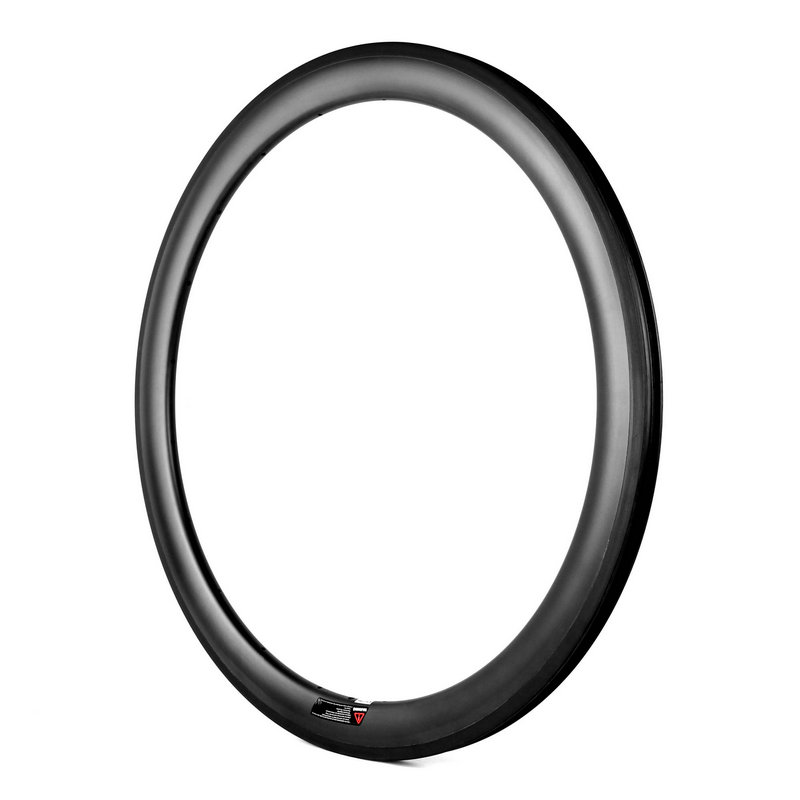

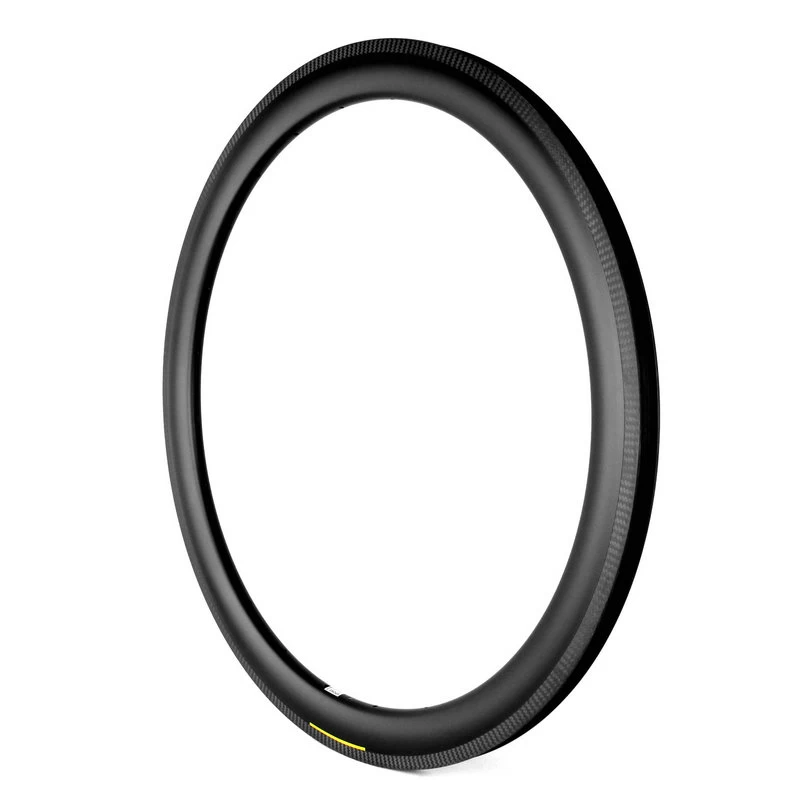

High TG resin carbon rims 700c clincher 50mm deep tubeless compatible

Item RX50SH, weight 500g, ERD 545mm. U shape 50mm deep rim profile makes this road clincher rim pretty stiff, but still aerodynamic performance. Durable and aerodynamic enough for road racing, training, climbing, and also cyclocross riding.


  • Max spoke tension140kgf
  • Max weight limit125kg
  • Depth50mm
  • Outer width25mm
  • Inner width18mm
  • ERD545mm
  • Weight500g±20
  • Brakerim brake
  • Typeclincher (tubeless ready)
  • Materialfull carbon Toray T700
  • Size700C

Product Item: High TG resin carbon rims 700c clincher 50mm deep tubeless compatible

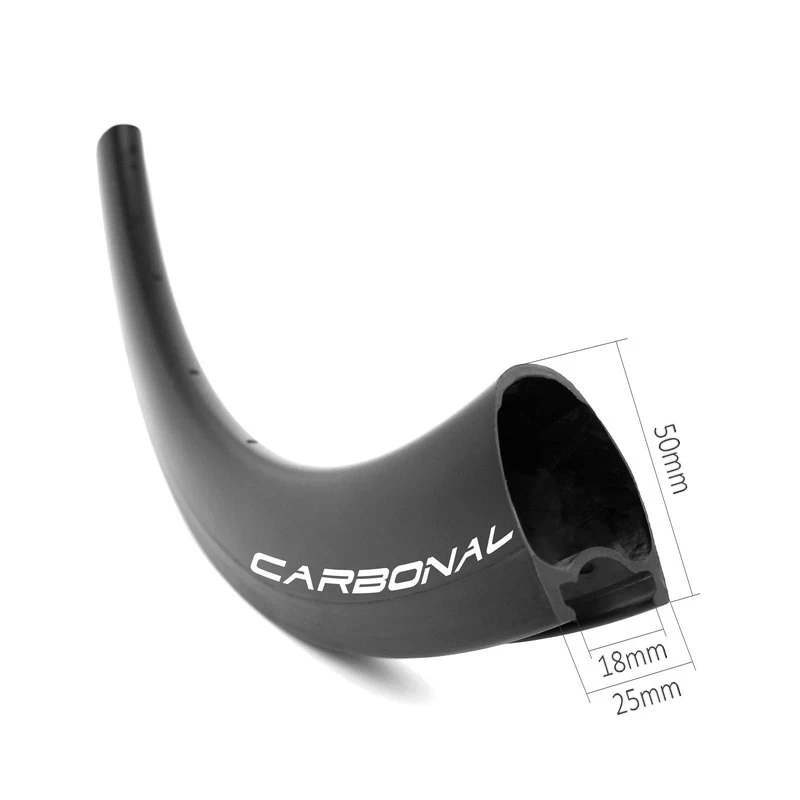

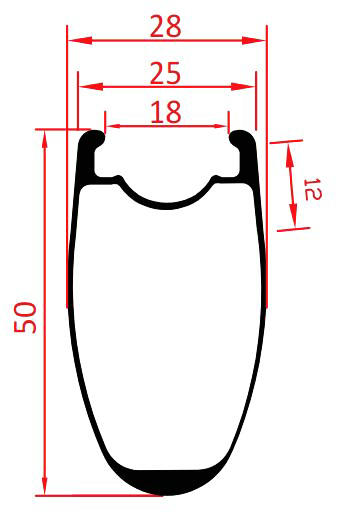

carbon rim clincher 50mm profile

U shape 25mm wide and 50mm deep rim profile makes these road clincher bicycle rims pretty stiff, but still aerodynamic performance. Durable and aerodynamic enough for road racing, training, climbing, triathlon and also cyclocross riding.


Specification:

 Item:
 RX50SH
 Use:
 road bike, cyclocross
 Rim type:
 700C clincher - *rim brake
 Material:
 Toray T700 carbon fiber
 Tubeless ready:
 Yes
 Weight:
 500g±20
 External/Internal width:
 25mm / 18mm
 ERD:
 545mm
 Depth:
 50mm
 Weight limit:
 125kgs
 Weave:
 UD / 3k twill / Marble *
 Finish:
 Matte, glossy
 Spoke hole count:
 16 - 36
 Assemble hole diameter:
 8.5mm
 Spoke hole diameter:
 4.5mm / 2.5mm or customized
 Valve hole diameter:
 6.5mm
 Max spoke tension:
 140kgf (recommended 110~130kgf)
 Max tire pressure:
 130psi
 Decal:
 Customized
 Min tire pressure:
 80psi
 High TG resin temperature:
 255°C
 Standard:
 EN standard


*See different carbon weave & finishes here.

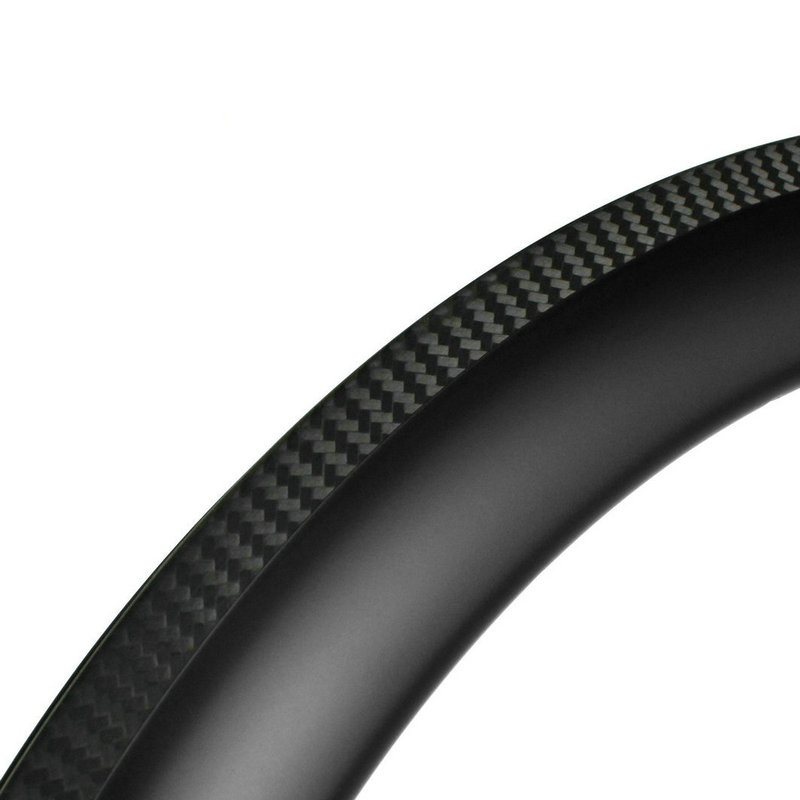

*Rim brake track available in 3k twill (recommended why 3k twill brake track is better?) or basalt surface.

carbon rim with basalt & 3k twill brake track


Features:

  • Wider rim system offers improved aerodynamics, better handling in crosswinds condition and faster riding.
  • U aerodynamic shape makes road tubeless rims lightweight but still stiff, keeping them stable in cross winds condition.
  • Tubeless ready design, it makes road clincher rims better tubeless setup and better sealing.
  • Super lightweight, rim constructed with premium Toray T700 carbon fiber, best strength to weight ratio with no expense spared.
  • High TG resin temperature 255° brake track, solve the heating problem on the rim brake clincher bicycle wheels.
  • Angled spoke holes allows the nipple to pull straight in line with the spoke for reduced stress, this results in fewer broken spokes and nipples.

5 years warranty:

Carbonal warrants its products to be free from manufacturing defects for a period of 5 years after original date of purchase.

This warranty only applies to the original owner and is not transferable.

Valid proof of purchase, pictures of the defect and the product serial number is required for a warranty claim.

Please retain your proof of purchase for any future warranty claims.


This warranty does not cover:

1. Normal wear and tear;

2. Any damage caused by accident, misuse, neglect, abuse, or any other fractious reasons;

3. Improper assembly, maintenance, or maintenance by an unauthorized technician.


1.3 million liability insurance worldwide, included commercial general liability and occurrence basis.


More information about our Warranty Policy.


Manufacturing process:

Our Engineering team creates a unique fiber orientation which amplifies the desired riding characteristics for a given rim. And each rim carries its own layup schedule documents which are followed meticulously by the layup workers, it ensures the accuracy of each rim in the production process.


Our carbon rims are made in one piece molding, each rim is made by one piece long carbon fiber, no wrinkles, to make the strength of rim is the strongest. And we use a unique process to remove the air bladder from the valve hole, so that the rim does not have to be patched like traditional manufacturers use.


100% Quality Inspection:

Carbonal does 100% quality inspection and record in database, each carbon rim is given a unique ID number, which allow us to deliver the highest quality product possible and track every rim to ensure the best after-sale service.


Read more about Carbonal carbon rim Quality Control.
