High Thermally Aluminum Nitride Ceramic Substrate AlN Conductive Insulating Sheet
Product Description:
AlN ceramics are widely used in various fields of aerospace electronics due to their excellent overall performance. The spacecraft solar cell wing will generate more that tens of kilowatts of electrical power transmission to the interior of the module. According to the requirements of the agency to choose materials, power transmission insulation materials need to have a certain degree of electrical insulation properties and high thermal conductivity, but also need to have excellent mechanical load-bearing capacity.
Therefore, the structure of functional integration materials must be chosen. High thermal conductivity materials need to be selected to conduct the heat gradually accumulated inside to the heat sink to avoid the internal temperature of the component from being too high.Among the high thermal conductivity broadband nitride semiconductor materials, AlN has a thermal conductivity of 320W/(m.K), which is higher than single crystal GaN's 230W/(m.K), and AlN has more heat transfer advantages and GaN in terms of heat conduction.

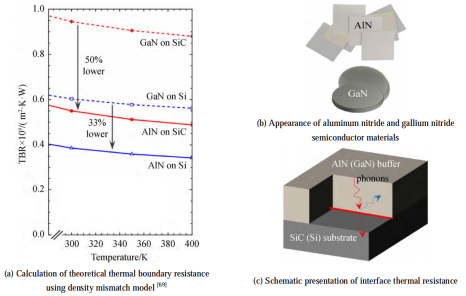

This image is taken from Development on High Thermal Conductive and Electric Insulative AlN Ceramics in Aerospace Devices

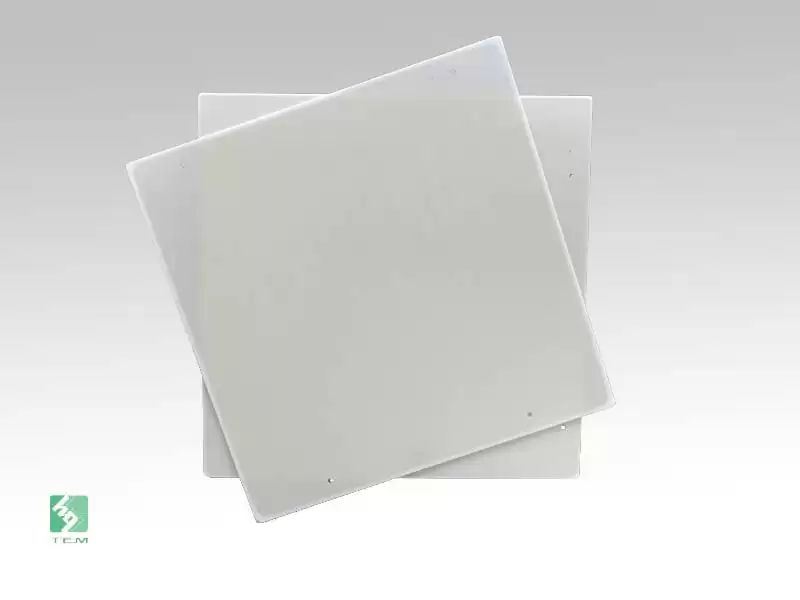

Our Aluminum Nitride ceramic substrates are available in various sizes and thickness.
Our Service:
Please contact us for customization.
Specification:
| Dimension(LxW) |
50.8*50.8mm etc. |
| Thickness |
0.1-10mm |
| Thermal Conductivity |
170-230W/m.K |
| Dielectric Constant |
8-9 (MHz) |
| Bulk Density |
3.3 g/cm³ |
| Surface Roughness |
Ra < 0.6 μm on both sides |
Company Advantage:
Huaqing founded in 2004, with sum investment of 80 million RMB, registered capital 40 million RMB. Huaqing's AlN &Al2O3 ceramic products have high thermal-conductivity, low dielectric constant, good dissipation factoe and excellent mechanical property compared with the other factories in the industry. AlN&Al2O3 ceramic are widely used in HBLED, opto-communication, IGBT, power devices, TEC and the other high-end applications.

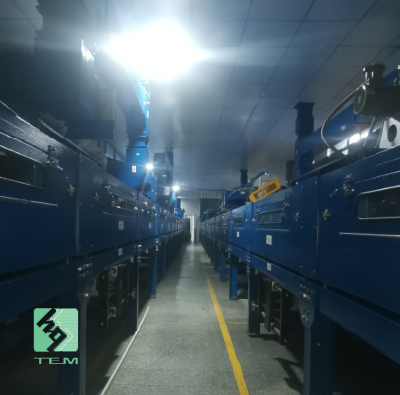

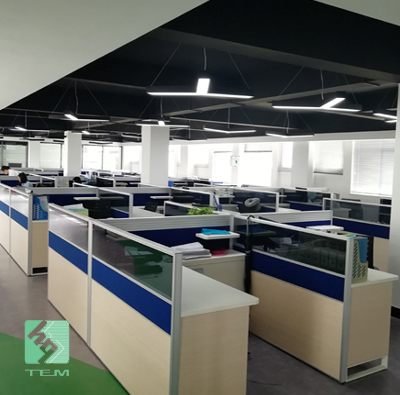

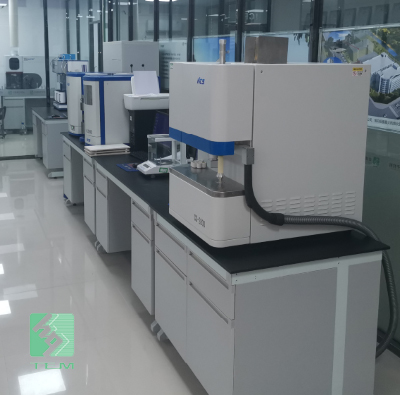

Workshop&Equipment:
Packaging & Delivery:
Deliver by UPS,DHL,Fedex etc.
