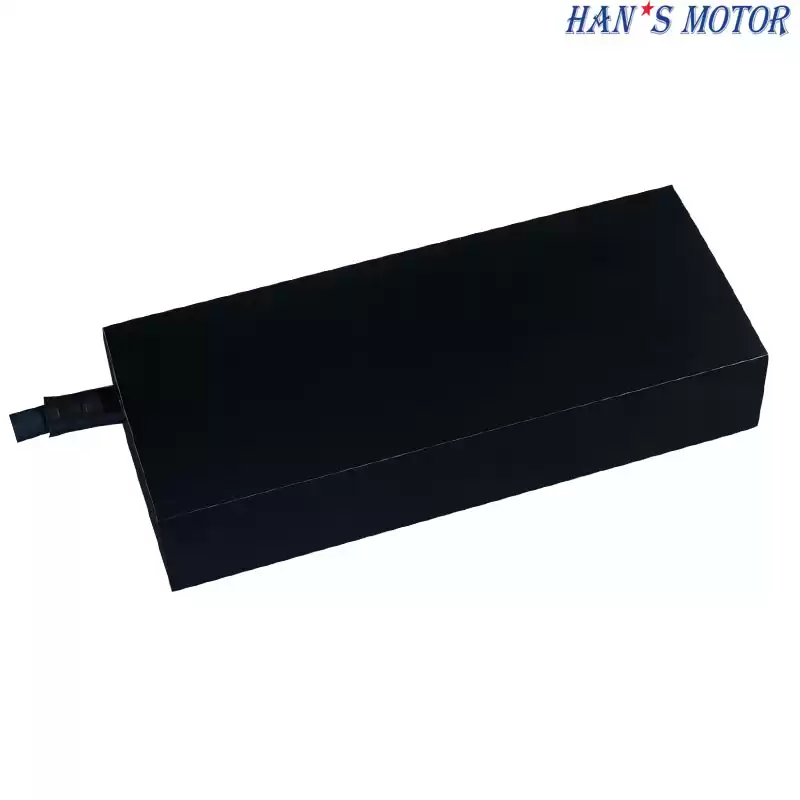

Product name: High thrust flat iron core linear motor LSMF6-96 for forming machine
Specifications
Mover Spec: LSMF610xxxx-x-H-NC-N-C00.5
|
301A-S
|
302A-S
|
302A-P
|
303A-P
|
303B-P
|
303C-P
|
304A-P
|
304B-P
|
Performance Parameters
|
Symbol
|
Units
|
Series
|
Series
|
Parallel
|
Parallel
|
Parallel
|
Parallel
|
Parallel
|
Parallel
|
Continuous Force (Tmax）
|
Fc
|
N
|
293
|
606
|
606
|
1250
|
1097
|
1097
|
972
|
960
|
Peak Force
|
Fp
|
N
|
694
|
1426
|
1426
|
2930
|
2524
|
2523
|
2236
|
2209
|
Motor Constant (25℃)
|
Km25
|
N/Sqrt(W)
|
31.5
|
46.8
|
46.1
|
69.4
|
69.4
|
66.9
|
60.4
|
60.2
|
Max.Continuous Power Dissipation
|
Pc
|
W
|
119
|
230
|
237
|
445
|
343
|
369
|
356
|
349
|
Continuous Current (Tmax）
|
Ic
|
Arms
|
6.0
|
6.0
|
12.0
|
12.0
|
8.0
|
16.0
|
8.0
|
11.0
|
Peak Current (1S)
|
Ip
|
Arms
|
18.0
|
18.0
|
36.0
|
36.0
|
24.0
|
48.0
|
24.0
|
33.0
|
Force Constant (25℃，±5%）
|
Kf
|
N/Arms
|
48.8
|
101.0
|
50.5
|
104.2
|
137.2
|
68.6
|
121.5
|
87.3
|
Back EMF Constant (25℃，±5%）
|
Ke
|
Vrms/m/s
|
16.3
|
33.7
|
16.8
|
34.7
|
45.7
|
22.9
|
40.5
|
29.1
|
Resistance(25℃，±5%）P-P
|
R
|
Ω
|
1.6
|
3.1
|
0.8
|
1.5
|
2.6
|
0.9
|
2.7
|
1.4
|
Inductance(25℃，±20%）P-P
|
L
|
mH
|
25.0
|
50.0
|
12.5
|
25.0
|
43.4
|
13.5
|
48.6
|
25.1
|
Max Coil Temperature
|
Tmax
|
℃
|
120
|
120
|
120
|
120
|
120
|
120
|
120
|
120
|
Polar Distance (N-N) (360℃ Electrical cycle)
|
2τ
|
mm
|
42
|
42
|
42
|
42
|
42
|
42
|
42
|
42
|
Magnetic Attraction
|
Fa
|
kN
|
1.3
|
2.7
|
2.7
|
5.3
|
5.3
|
5.3
|
3.9
|
3.9
|
Max.DC Bus Voltage
|
Ubus
|
V
|
600
|
600
|
600
|
600
|
600
|
600
|
600
|
600
|
Vmax,Fc@Vbus=310Vdc
|
|
m/s
|
6.0
|
2.8
|
5.9
|
2.7
|
2.1
|
4.2
|
2.2
|
3.2
|
Vmax,Fp@Vbus=310Vdc
|
|
m/s
|
3.0
|
1.3
|
3.0
|
1.3
|
1.0
|
2.1
|
1.0
|
1.5
|
Vmax,0@Vbus=310Vdc
|
|
m/s
|
7.7
|
3.7
|
7.4
|
3.6
|
2.7
|
5.4
|
3.1
|
4.3
|
Vmax,Fc@Vbus=537Vdc
|
|
m/s
|
10.7
|
5.1
|
10.5
|
5.0
|
3.9
|
7.5
|
4.1
|
5.8
|
Vmax,Fp@Vbus=537Vdc
|
|
m/s
|
5.5
|
2.6
|
5.5
|
2.6
|
2.1
|
3.8
|
2.0
|
2.9
|
Vmax,0@Vbus=537Vdc
|
|
m/s
|
13.4
|
6.4
|
12.9
|
6.2
|
4.7
|
9.5
|
5.3
|
7.4
|
Mover Mass
|
Mp
|
Kg
|
2.9
|
5.7
|
5.7
|
10.6
|
10.6
|
10.6
|
8.3
|
8.3
|
Stator Mass within unit length
|
Ms
|
Kg/m
|
6.8
|
6.8
|
6.8
|
6.8
|
6.8
|
6.8
|
6.8
|
6.8
|

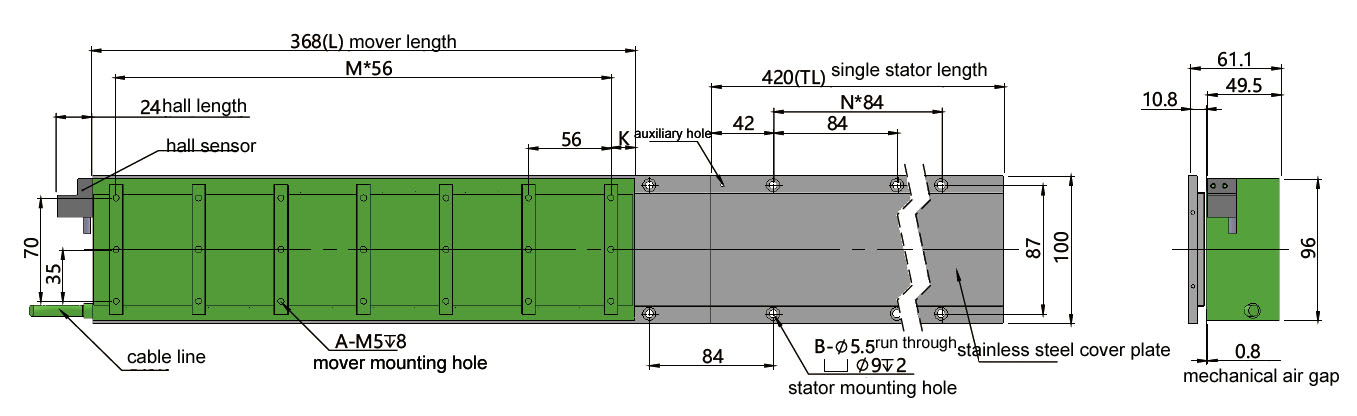

Dimension
|
Mover Length
|
Mover model
|
Mover length L
|
M
|
Mover mounting hole A
|
K
|
LSMF610301A-S-H-NC-N-C00.5
|
101
|
1
|
6
|
22.5
|
LSMF610302A-S-H-NC-N-C00.5
|
200
|
3
|
12
|
16
|
LSMF610302A-P-H-NC-N-C00.5
|
200
|
3
|
12
|
16
|
LSMF610303A-P-H-NC-N-C00.5
|
368
|
6
|
21
|
16
|
LSMF610303B-P-H-NC-N-C00.5
|
368
|
6
|
21
|
16
|
LSMF610503C-P-H-NC-N-C00.5
|
368
|
6
|
21
|
16
|
LSMF610304A-P-H-NC-N-C00.5
|
278
|
4
|
15
|
27
|
LSMF610304B-P-H-NC-N-C00.5
|
278
|
4
|
15
|
27
|
Remarks: 1. Standard cable length is 0.5m (with aviation plug), Continuous current Ic≤10A/10＜Ic≤12A/ 12＜Ic≤16A maximum outer diameter of used cable is 7.5mm/8.0mm/9.0mm, the fixed laying minimum bending radius is 3*dmm, the moving minimum bending radius of chain is 5*dmm the cable length and terminal can be customized if there are special requirements.
2. Optional temperature sensor.
Stator Length
|
Stator model
|
Stator length TL
|
N
|
Stator mounting hole B
|
|
LSMF6201C
|
168
|
1
|
4
|
|
LSMF6202C
|
252
|
2
|
6
|
LSMF6203C
|
420
|
4
|
10
|
Suitable for any mover of this series.
Application Case：PCB industry
Advantages: Smooth thrust, small inertia, large acceleration, strong overload capacity, no cogging force and electromagnetic suction.
Cumulative usage of iron core linear motors exceeds 100,000 axes. The customer's market share of drilling machine is No. 1 in the world.
Industry Applications:
it is widely used in wafer cutting, glass scribing, UV printingmachine and measurement system,six-axis drilling machine, single-axis drilling machine, two-axis drilling machine, forming machine, laser direct imaging machine (LDI), automatic optical inspection machine (AOI), reinforcement machine (FPC).
