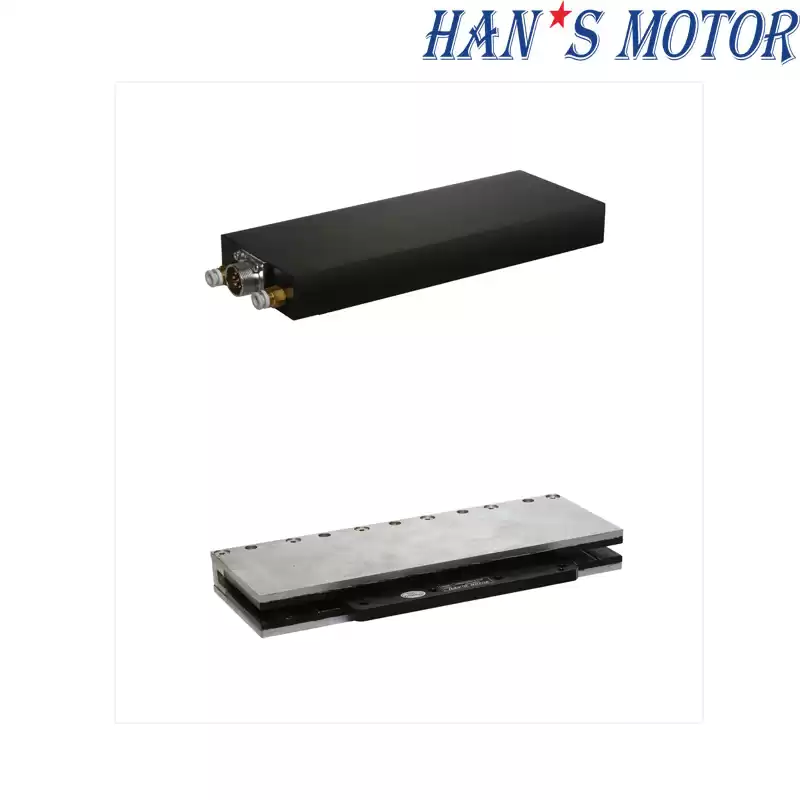

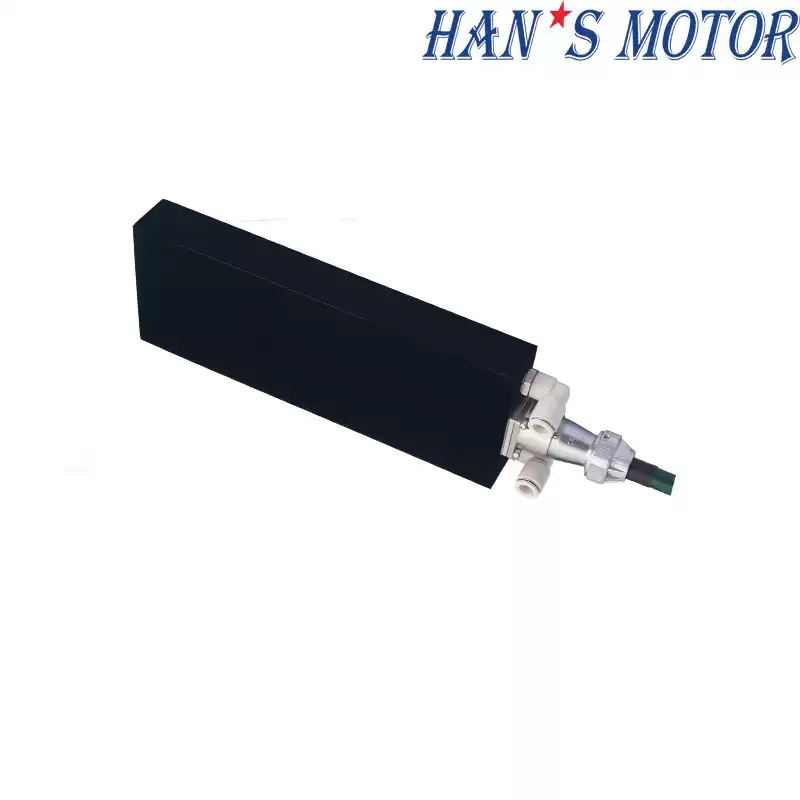

Product name: high thrust reliable riron core linear motor LSMF6-121 for laser cutting machine
Specifications
Mover Spec: LSMF610xxxx-x-H-NC-N-C00.5
|
101G-S
|
101A-S
|
102G-S
|
102A-S
|
102G-P
|
102A-P
|
103G-P
|
103A-P
|
103B-P
|
104A-P
|
104B-P
|
Performance Parameters
|
Symbol
|
Units
|
Series
|
Series
|
Series
|
Series
|
Parallel
|
Parallel
|
Parallel
|
Parallel
|
Parallel
|
Parallel
|
Parallel
|
Continuous Force (Tmax）
|
Fc
|
N
|
391
|
366
|
715
|
755
|
715
|
755
|
1475
|
1562
|
1562
|
1296
|
1280
|
Peak Force
|
Fp
|
N
|
926
|
896
|
1778
|
1836
|
1778
|
1836
|
3650
|
3767
|
3767
|
2981
|
2945
|
Motor Constant (25℃)
|
Km25
|
N/Sqrt(W)
|
37.6
|
37.4
|
52.0
|
54.5
|
54.4
|
54.5
|
74.8
|
79.7
|
72.8
|
71.7
|
72.9
|
Max.Continuous Power Dissipation
|
Pc
|
W
|
148
|
132
|
259
|
264
|
237
|
262
|
534
|
527
|
633
|
448
|
424
|
Continuous Current (Tmax）
|
Ic
|
Arms
|
6.0
|
4.0
|
6.0
|
4.0
|
12.0
|
8.0
|
12.0
|
8.0
|
16.0
|
8.0
|
11.0
|
Peak Current (1S)
|
Ip
|
Arms
|
18.0
|
12.0
|
18.0
|
12.0
|
36.0
|
24.0
|
36.0
|
24.0
|
48.0
|
24.0
|
33.0
|
Force Constant (25℃，±5%）
|
Kf
|
N/Arms
|
65.2
|
91.5
|
119.0
|
189.6
|
60.0
|
94.8
|
123.0
|
195.3
|
97.6
|
162.0
|
116.4
|
Back EMF Constant (25℃，±5%）
|
Ke
|
Vrms/m/s
|
21.7
|
30.5
|
39.7
|
63.2
|
20.0
|
31.6
|
41.0
|
65.1
|
32.5
|
54.0
|
38.8
|
Resistance(25℃，±5%）P-P
|
R
|
Ω
|
2.0
|
4.0
|
3.5
|
8.0
|
0.9
|
2.0
|
1.8
|
4.0
|
1.2
|
3.5
|
1.8
|
Inductance(25℃，±20%）P-P
|
L
|
mH
|
28.0
|
63.0
|
50.0
|
126.0
|
12.0
|
32.0
|
25.0
|
64.0
|
16.0
|
64.8
|
29.3
|
Max Coil Temperature
|
Tmax
|
℃
|
120
|
120
|
120
|
120
|
120
|
120
|
120
|
120
|
120
|
120
|
120
|
Polar Distance (N-N) (360℃ Electrical cycle)
|
2τ
|
mm
|
42
|
42
|
42
|
42
|
42
|
42
|
42
|
42
|
42
|
42
|
42
|
Magnetic Attraction
|
Fa
|
kN
|
1.6
|
1.6
|
3.4
|
3.4
|
3.4
|
3.4
|
6.8
|
6.8
|
6.8
|
5.3
|
5.3
|
Max.DC Bus Voltage
|
Ubus
|
V
|
600
|
600
|
600
|
600
|
600
|
600
|
600
|
600
|
600
|
600
|
600
|
Vmax,Fc@Vbus=310Vdc
|
|
m/s
|
4.7
|
3.2
|
2.4
|
1.4
|
5.2
|
3.1
|
2.3
|
1.4
|
3.0
|
1.6
|
2.5
|
Vmax,Fp@Vbus=310Vdc
|
|
m/s
|
2.5
|
1.6
|
1.2
|
0.6
|
2.9
|
1.6
|
1.2
|
0.5
|
1.5
|
0.7
|
1.2
|
Vmax,0@Vbus=310Vdc
|
|
m/s
|
5.7
|
4.1
|
3.1
|
1.9
|
6.2
|
3.9
|
3.0
|
1.9
|
3.8
|
2.3
|
3.2
|
Vmax,Fc@Vbus=537Vdc
|
|
m/s
|
8.4
|
5.8
|
4.5
|
2.7
|
9.3
|
5.6
|
4.3
|
2.6
|
5.4
|
3.0
|
4.5
|
Vmax,Fp@Vbus=537Vdc
|
|
m/s
|
4.7
|
3.1
|
2.4
|
1.3
|
5.4
|
3.0
|
2.4
|
1.3
|
2.9
|
1.4
|
2.3
|
Vmax,0@Vbus=537Vdc
|
|
m/s
|
10.0
|
7.1
|
5.5
|
3.4
|
10.9
|
6.9
|
5.3
|
3.3
|
6.7
|
4.0
|
5.6
|
Mover Mass
|
Mp
|
Kg
|
3.9
|
3.9
|
7.4
|
7.4
|
7.4
|
7.4
|
13.6
|
13.6
|
13.6
|
10.8
|
10.8
|
Stator Mass within unit length
|
Ms
|
Kg/m
|
8.5
|
8.5
|
8.5
|
8.5
|
8.5
|
8.5
|
8.5
|
8.5
|
8.5
|
8.5
|
8.5
|

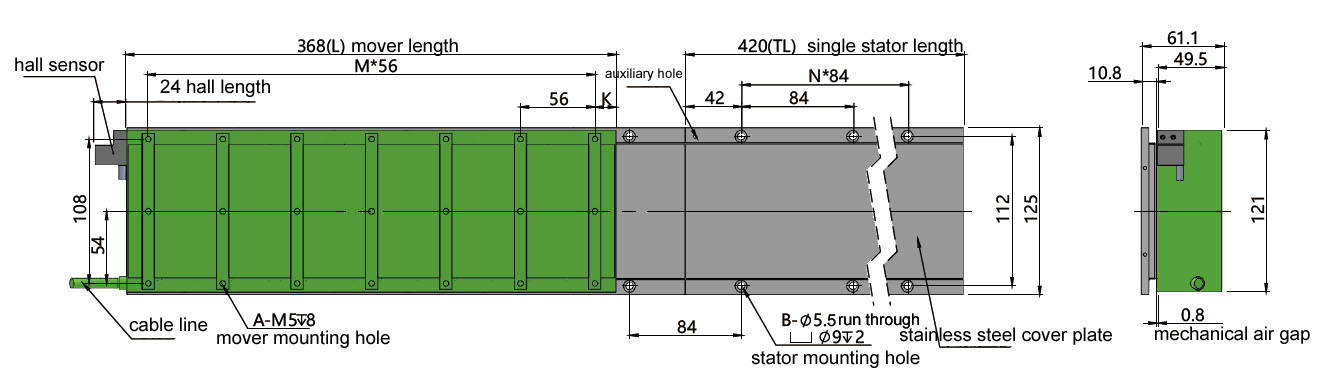

Dimension
|
Mover Length
|
Mover model
|
Mover length L
|
M
|
Mover mounting hole A
|
K
|
LSMF610101G-S-H-NC-N-C00.5
|
101
|
1
|
6
|
22.5
|
LSMF610101A-S-H-NC-N-C00.5
|
101
|
1
|
6
|
22.5
|
LSMF610102G-S-H-NC-N-C00.5
|
200
|
3
|
12
|
16
|
LSMF610102A-S-H-NC-N-C00.5
|
200
|
3
|
12
|
16
|
LSMF610102G-P-H-NC-N-C00.5
|
200
|
3
|
12
|
16
|
LSMF610102A-P-H-NC-N-C00.5
|
200
|
3
|
12
|
16
|
LSMF610103G-P-H-NC-N-C00.5
|
368
|
6
|
21
|
16
|
LSMF610103A-P-H-NC-N-C00.5
|
368
|
6
|
21
|
16
|
LSMF610104A-P-H-NC-N-C00.5
|
278
|
4
|
15
|
27
|
LSMF610104B-P-H-NC-N-C00.5
|
278
|
4
|
15
|
27
|
Remarks: 1. Standard cable length is 0.5m (with aviation plug), Continuous current Ic≤10A/10＜Ic≤12A/ 12＜Ic≤16A maximum outer diameter of used cable is 7.5mm/8.0mm/9.0mm, the fixed laying minimum bending radius is 3*dmm, the moving minimum bending radius of chain is 5*dmm the cable length and terminal can be customized if there are special requirements.
2. Optional temperature sensor.
Stator Length
|
Stator model
|
Stator length TL
|
N
|
Stator mounting hole B
|
|
LSMF6201B
|
168
|
1
|
4
|
|
LSMF6202B
|
252
|
2
|
6
|
LSMF6203B
|
420
|
4
|
10
|
Suitable for any mover of this series.
Advantages：
1. Fast speed, high acceleration
2. High accuracy, high rigidity, large thrust
3. No mechanical wear, long service life
4. Simple structure and high transmission
efficiency
5. Low noise, quiet operation
Industry Applications:
Packaging & Delivery:
Packaging Details.: plywood packing
Port.: Shenzhen (Sea / Air shipping, TNT, UPS, FedEx and DHL ect.)
Leading time: According to the order quantity, 10 days for the small order and 20 days for the bulk order
