The power can be customized to meet the requirements of various product equipment and environmental factors, and the motor speed can automatically adapt to the load.

About this item

• Dimension of the motor is 10 mm(D) x 15 mm(L) / 0.39" (D) x 0.59" (L).

• Shaft Diameter: 1.0 mm / 0.04" | Motor Diameter: 10 mm / 0.39" | Motor Length: 15 mm / 0.59".

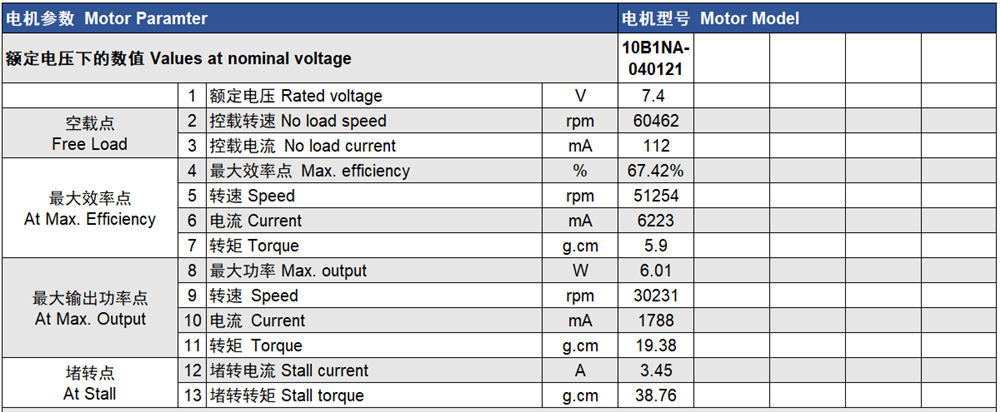

• Rated Voltage Range: DC 7.4V | Speed: 60000 RPM (the actual speed may be high or low).
• Weight: 5.8 g/pcs;  Lead wire: (+): Red wire; (-): Black wire.
• Please Comfirm the Motor Size, Voltage, Current and other parameters before purchase.

DC Brushes Micro Motor 10B1015

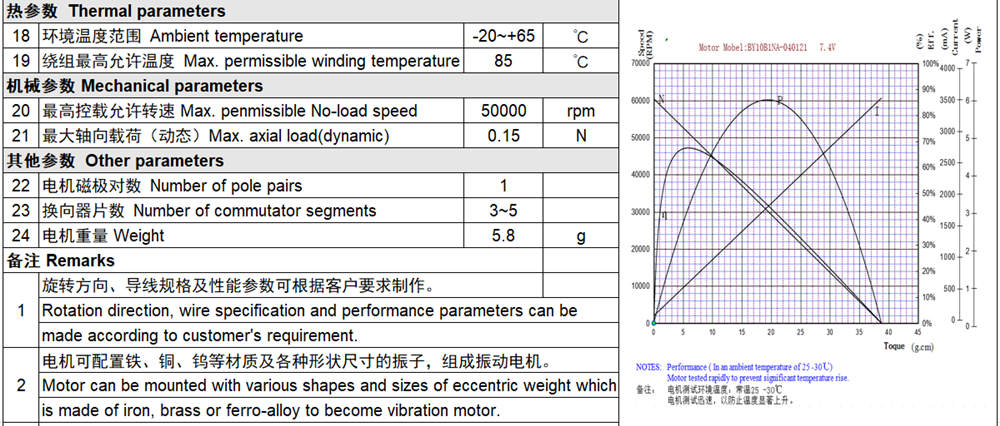

• Rotation direction, wire specification and performance performance parameters can be made according to customer's requirement.
• Motor can be mounted with various shapes and sizes of eccentric weight which is made of iron, brass or ferro-alloy to become vibration motor.

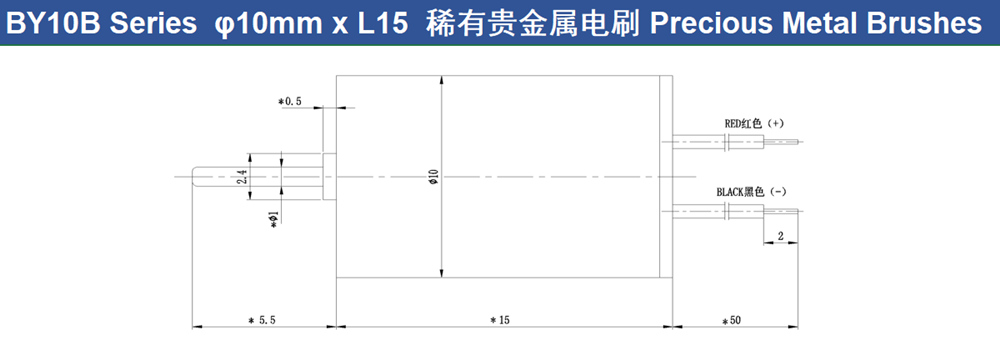

• Dimension with " * " in the drawing can be adjusted according to customer's requirement.

Feature

• Speeds up to 60,000 rpm;
• Long life, high efficiency, small size and compact structure;

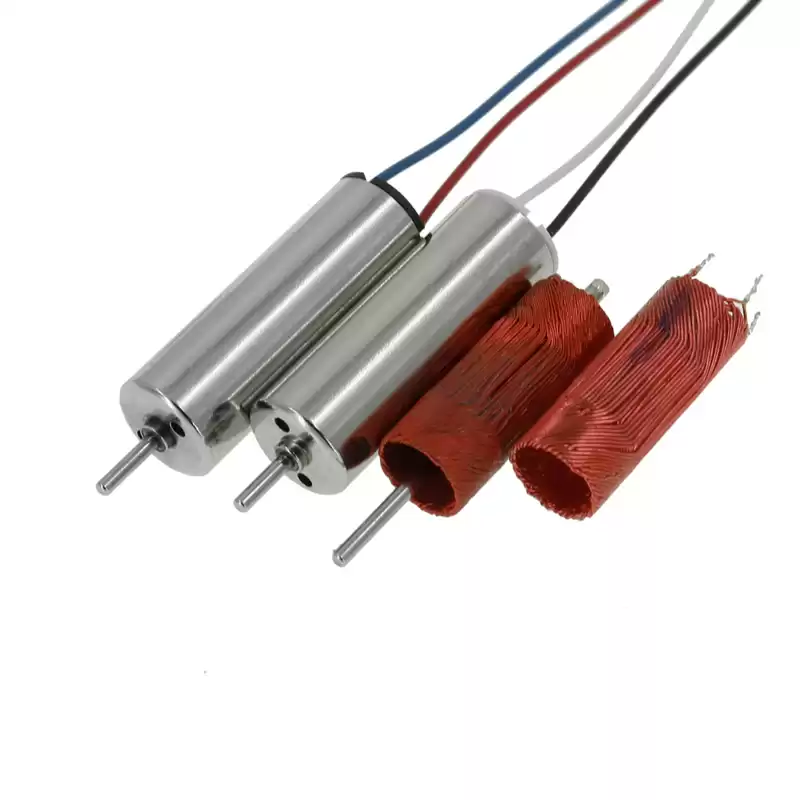

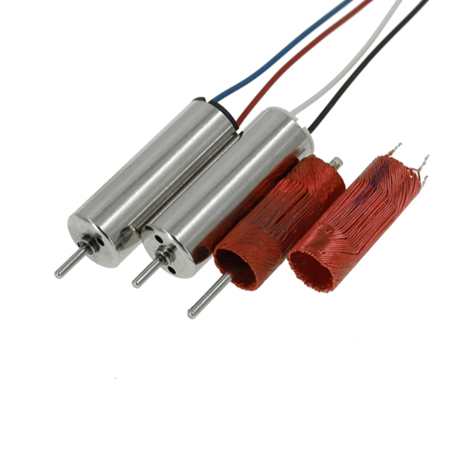

• Mini coreless motor, suitable for small steering gear, aircraft model;
• Quick starting and braking, fast response, excellent thermal conductivity;
• DC coreless motor has outstanding energy-saving characteristics, sensitive and convenient control characteristics and stable operation characteristics.

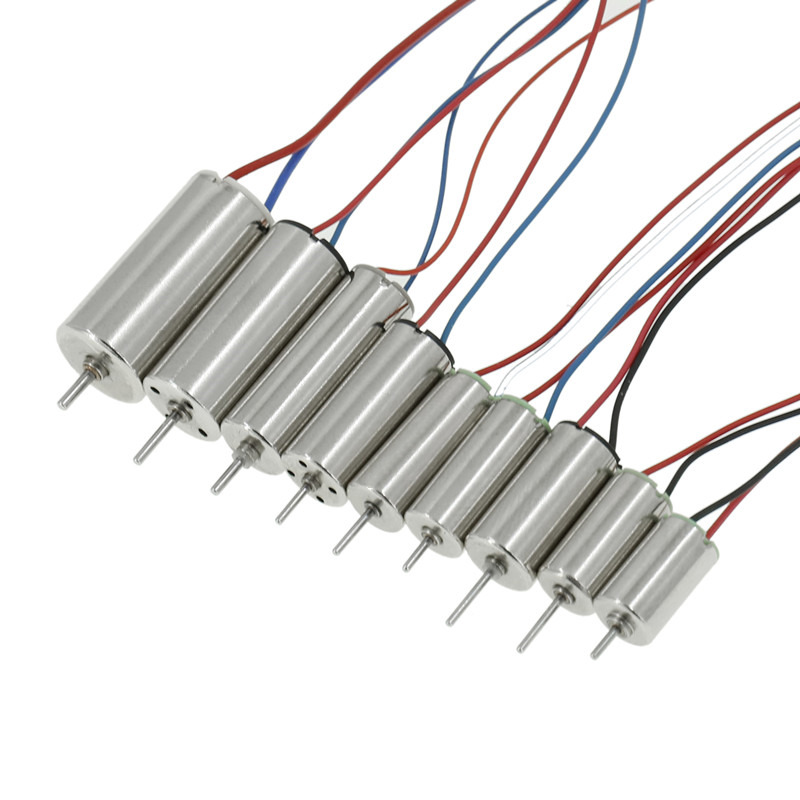

More Models

These micro motors come in a variety of different sizes and can be adapted to various applications to meet customer needs.

Application

These vibration motors are useful in many electronic projects such as Bristlebots, remote control aircraft, miniature trains, Radio control remote, Camera, Electric Shaver, Mobile devices, Vibration series of mobile phones, toys, game pads, massage, medical, sex accessories etc.

Quality Control

CHUNGFO has strict delivery inspection standard to ensure that the products quality meets customer’ requirements.

In addition, our motors are tested for quality to ensure the best possible performance. Our quality control staff is highly trained to perform stringent testing procedures.
