High Voltage Battery Tester for Pack or Car Battery






High Voltage Battery Tester  for Pack or Car Battery






Product Specification


1 TOB-BTS-60V50A Battery test system is mainly used for Electric Car battery pack testing, it can test lithium battery pack voltage up to 60v with Max current 50A.

2 It can also test battery pack with protect board (PCB/PCM)


Project index

Parameter index

Input Power

AC 380V ±10% / 50Hz

Resolution

AD:15bit;DA:12bit

Input Resistance

≥1MΩ

Input Power

7848W

Channel Features

Constant Current Source and Constant Voltage Source

with Independent  pairs of Closed-loop Structure

Channel Control Mode

Independent Control

Voltage

Per Channel Voltage Range

Charge:300mV~60V;Discharge:2.5V~60V

Discharge Min Voltage

2.5V

Accuracy

± 0.1% of  FS

Stability

± 0.1% of  FS

Current

Per Channel Current Range

250mA~50A

Accuracy

± 0.1% of  FS)

Stability

± 0.1% of  FS

Power

Per Channel Output Power

3000W

Stability

± 0.2% of  FS

Time

Current Response Time

The Current rise Response Time is 20ms

Step Time Range

1s≤Single Step Time Range≤365*24 h,

Time Form Support 00:00:00(h、min、s)

Data Recording

Record Condition

Lower sampling time:100ms

Lower sampling Voltage:150mV

Lower sampling Current:5mA

Record Frequency

10Hz

Charge

Charge Mode

Constant Current Charge、Constant Voltage Charge、

Constant Current and Constant Voltage Charge

End Conditon

Voltage、Current、Relative Time、Capacity

Discharge

Discharge Mode

Constant Current Discharge

End Condition

Current、Current、Relative Time、Capacity

Cycle

Loop Measure Range

1~65535 times

Per Loop Step No.

254

Nested Loop

Nested loop Function,Max Support 3 Layers

Protection

Software Protection

l Power-down Data Protection

l Off-line Testing Function

lSetting Protection Condition,Setting Parameter:

Voltage Low limit、Voltage Upper limit、Current Low limit、

Current Upper limit、Delay Time

Hardware Protection

Addition Avoiding Reverseconnection Protection Model

Voltage and Current Testing Sample

4-wire connecting

Noise

<80dB

Database

My SQL Databace

A Means of Communication of Upper Machine

TCP/IP Protocol

Data Output

EXCEL、TXT、Graph

Operation system

Offioce 2010  ,  Win 7 system

Communication Interface

Ethernet Port

Per Unit Main Channels No.

1

Dimensions

18U,W*D*H:606*606*990(mm)

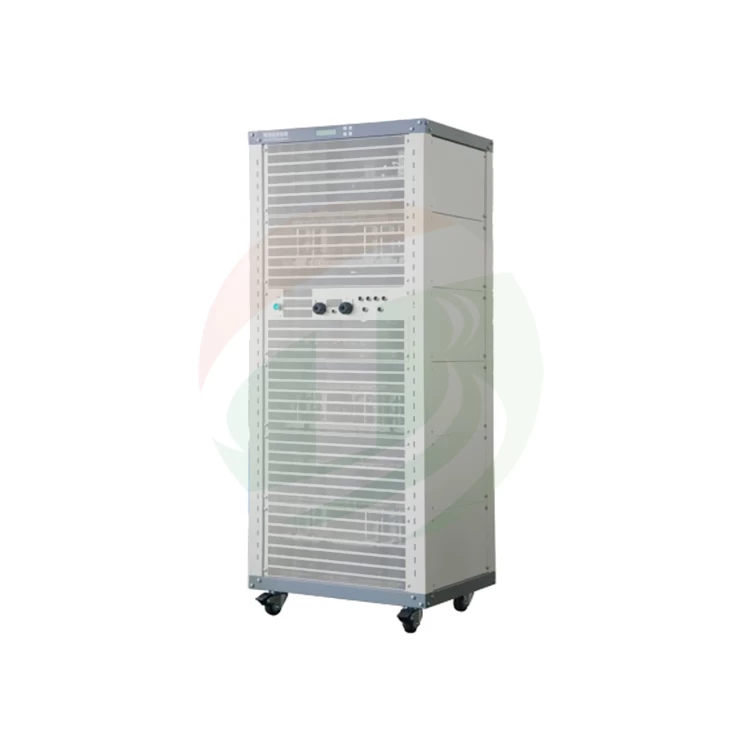

Product Image

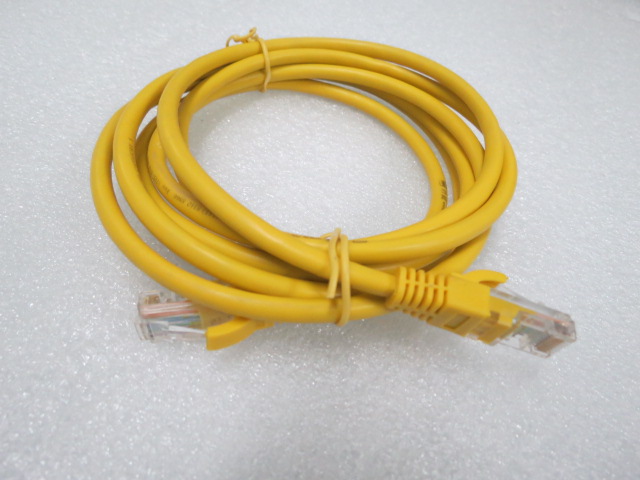

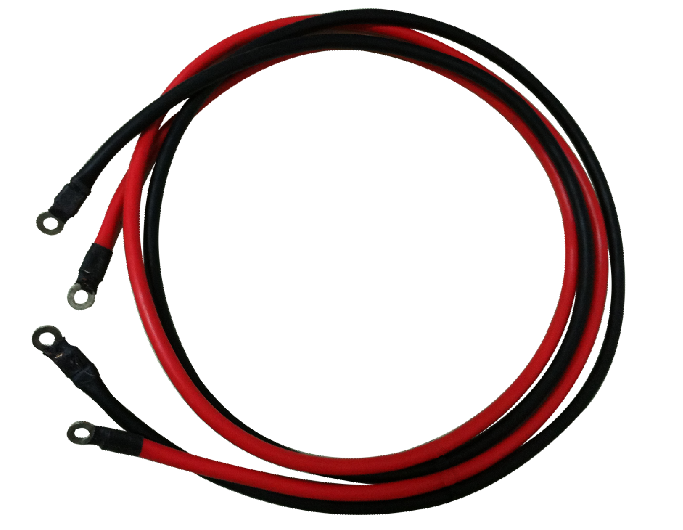

connect wirenose linebattery pack tester
