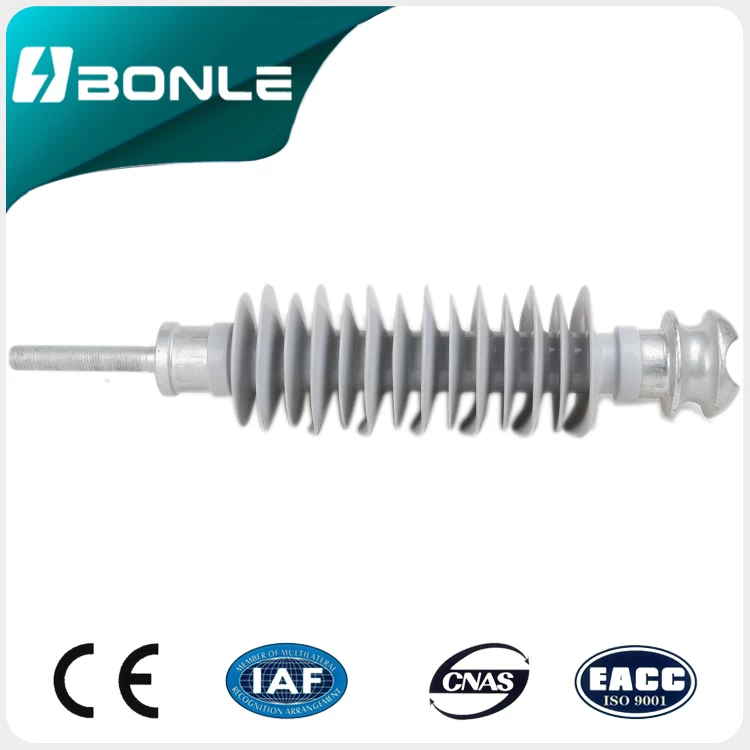

High voltage composite pin post insulator FPQ

1).Silicon Rubber for sheds/housing

2).Glass-fiber reinforced epoxy resin rod(ECR type)for core

3).Hop dip galvanized cast steel for metal fittings

4).IEC standard.

5).ISO9001 and ISO14001 manufacturer.

Facebook Twitter Pinterest LinkedIn 分享

Feature:



1.The Pin post insulators are made of glassfiber epoxy core rod,silicone rubber shed and metal fitting.



2.The silicone rubber shed adopt the whole packing pressure technique.



3.Small volume,light weight,corrosion prevention and reliable structure.



4.Sheath thickness is more than 5mm and in accordance with IEC international standard.


Our insulator price is very reasonable. BONLE can manufacture all types of Composite Horizontal Line Post Insulators according to drawings and samples from clients.






 Product Description

Product Name

 High-End Handmade Cost-Effective Custom Logo Porcelain Products Insulators

Product No.

 B-FC

Type

 line post

Material

 composite polymer & silicon

Color

 red or grey

Weight(kgs)

 19.5

Application

 high voltage

Standard

 IEC

Packaging Details

 Carton

Delivery Detail

 25 DAYs

Payment

 L.C,T/T, WU, MG, PayPal

Carton Size(cm)

 40x50x50

High voltage composite pin post insulator FPQ





High voltage composite pin post insulator FPQ
