High volatge DC80V 1400W AC DC switching power supply
Description:
K50-UP1500S series 1400W 80Vdc is a single output type AC/DC switching power supply,these series operates for 90-264Vac input voltage,each model is cooled by built-in fan with fan speed control, working for the temperature up to 70℃.
Features:
1, High voltage 80V DC power supply is high efficiency, low temperature rise;
2, 1400W DC power supply;
3, 1400W Industrial Power Supply with short circuit, overload, overvoltage protection.
Parameter
|
|
Item NO
|
K50-UP1500S80F
|
|
Output
|
Output Voltage
|
+80VDC
|
|
Rated Current
|
17.5A
|
|
Current Range
|
0-17.5A
|
|
Rated Power
|
1400W
|
|
Ripple & Noise
|
800mVp-p
|
|
Adjustable Output Range
|
75-83V
|
|
Output Accuracy
|
±2%
|
|
Line Regulation
|
±1%
|
|
Load Regulation
|
±1%
|
|
Set up,Rise,Keep up time
|
600ms, 30ms, 12ms
|
|
Input
|
Input Voltage Range
|
100~264vac
|
|
Input Current
|
16A/100V,7A/230V
|
|
Input Frequency
|
47~63Hz
|
|
Efficiency
|
92%@230V
|
|
Power Factor
|
PF＞0.98/115V or PF＞0.95/230V
|
|
Inrush Current
|
Cool start 60A/230V
|
|
Leakage Current
|
<0.5mA@240V
|
|
Protection
|
Over Load Protection
|
105~150%,Hiccup protection,automatic recovery
|
|
Short Circuit Protection
|
Lock protection,automatic recovery after 2 minutes.
|
|
Output over-voltage protection
|
＞120% shut down,Lock protection,automatic recovery after 2 minutes.
|
|
Over-temperature protection
|
TS1＞105 degree,it will be protected,automatic recovery.
|
|
Environment
|
Working Temp.,Humidity
|
-20~60℃,10~90% RH,No condensation
|
|
Storage Temp.,Humidity
|
-20~85℃,10~95% RH
|
|
Temp.,Drift
|
±0.03%/℃(0~50℃)
|
|
Vibration
|
10~500Hz, 2G 10min /1cycle,PERIOD FOR 60min EACH AXES
|
|
Safety&EMC Standards
|
Safety Standards
|
GB4943 EN60950-1
|
|
Withstand Voltage
|
I/P-O/P:4KV;I/P-FG:1.8KV;O/P-FG:0.5KV AC
|
|
Insulation Resistance
|
I/P-O/P,I/P-FG,O/P-FG:500VDC / 100M Ohms
|
|
EMC Standards
|
............
|
|
Others
|
Dimension
|
205*100*65mm(L*W*H)
|
|
Weight
|
1.5kg
|
|
MTBF
|
>50hrs
|
|
Fan Supply
|
YES
|
|
Notes
|
1. All parameters 230VAC input, rated load, ambient temperature 25 ℃, measured under conditions of 70% humidity;
2. Accuracy: includes set up tolerance, line regulation, load regulation and so on;
3. Ripple Test: 30cm long strands connect the power supply and the load on the load side and 0.1u and 47u capacitor to 20MHz oscilloscope measured at the load end;
4. Line regulation: at rated load conditions, the input voltage changes from low to high measured;
5. Load regulation: the measured output load from 0 to 100% load change measured.
|

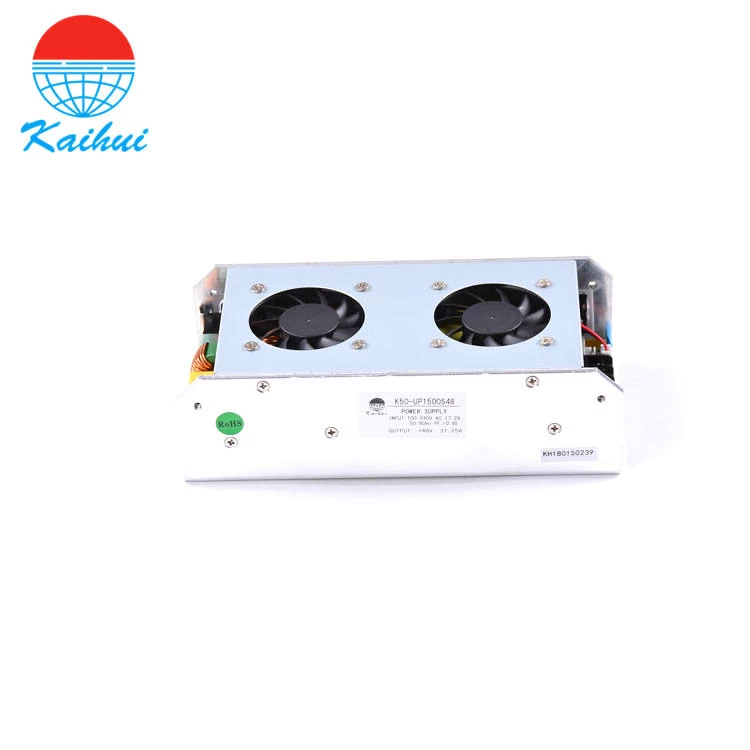

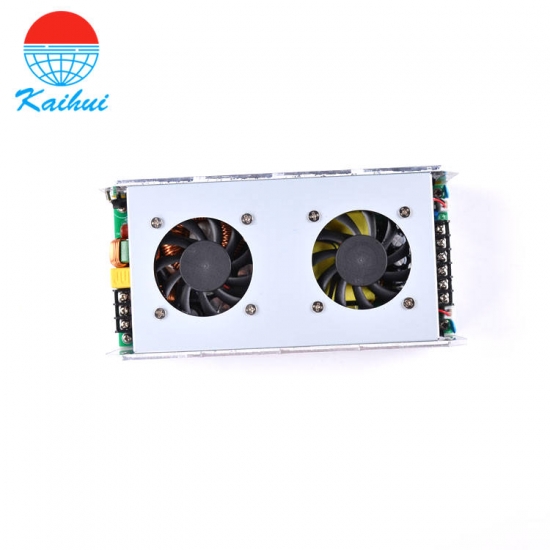

Product picture:
