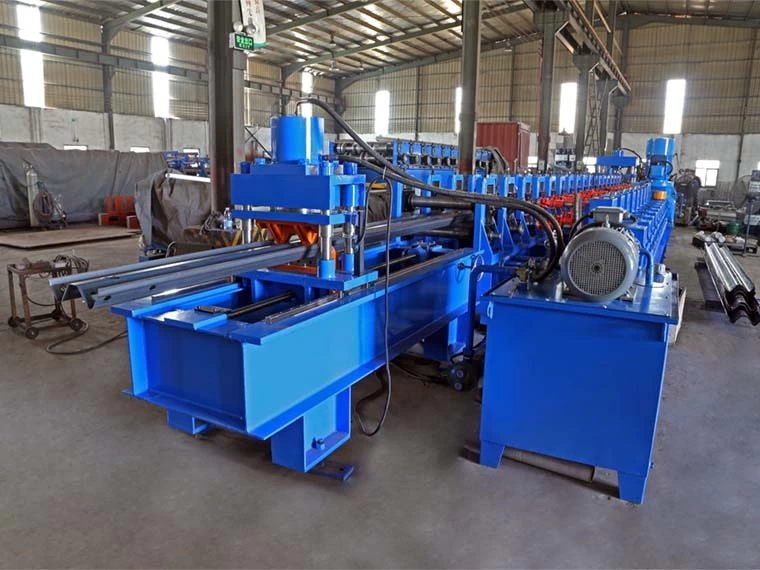

Highway Guardrail Roll Forming Machine

High Quality and Full AUTO





                  Highway Guardrail Roll Forming Machine





Click here to check the video:Highway Guardrail Roll Forming Machine

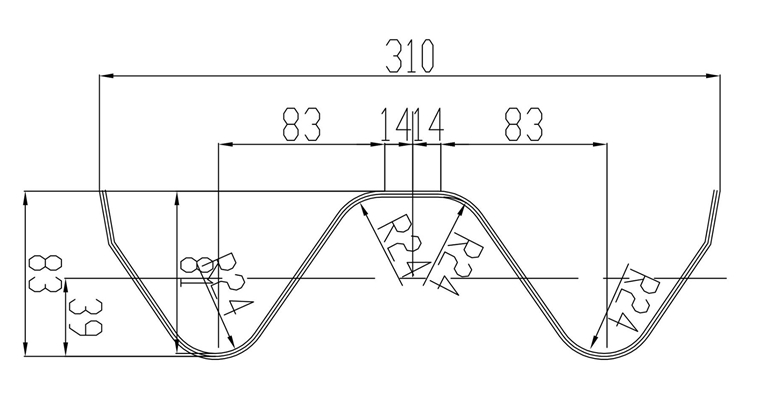

1.Main features of highway guardrail roll forming machine


    The advantages of highway guardrail machine are as follows:

    1.Beautiful appearance

    2.Accuracy profile

    3.Easy operation, low maintenance cost


2.Detailed Images of highway guardrail roll forming machine


    Machine Parts

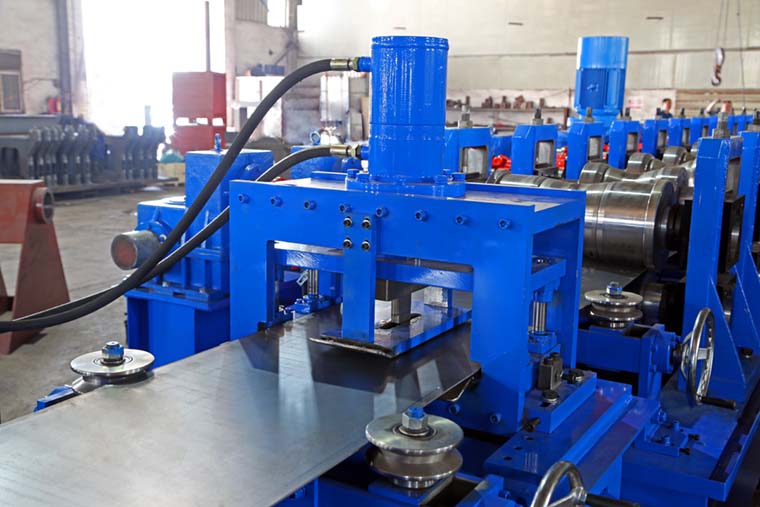

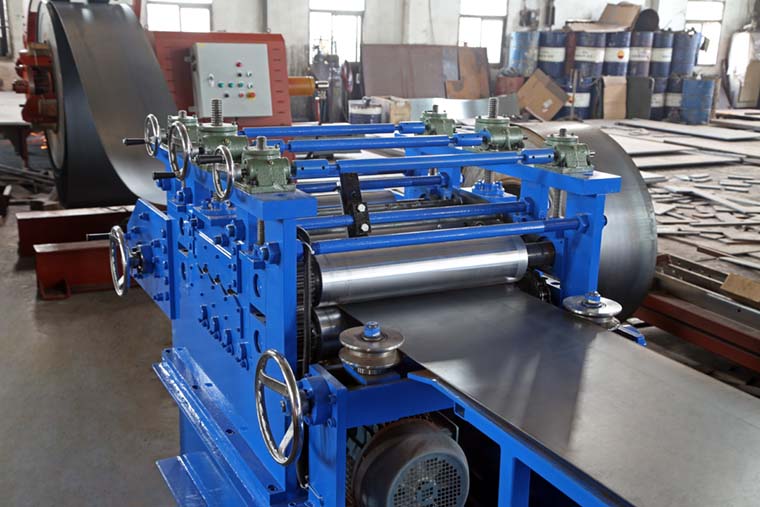

        1) Highway guardrail roll forming machine feeding and leveling

        Brand: BMS    Original: China

        Feeding motor: 11 KW, Servo Motor.

        With Connection platform

        A coiling tail and a roll of material is easy to set welding platform

        Welding machine is provided by the buyer

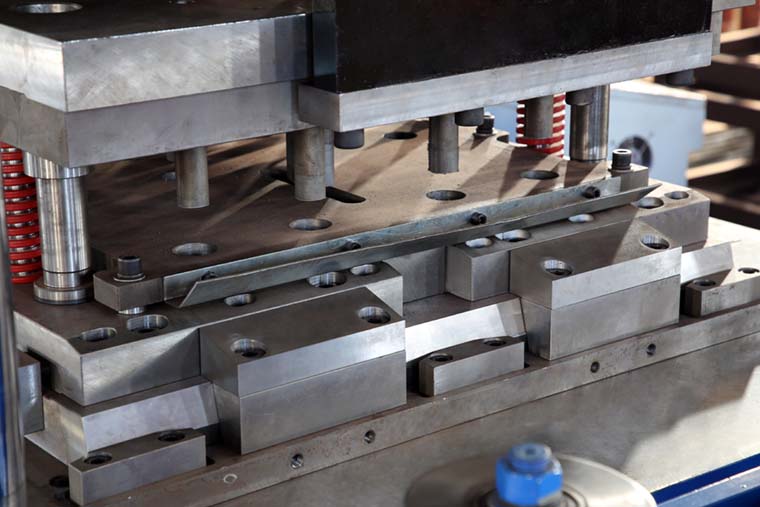

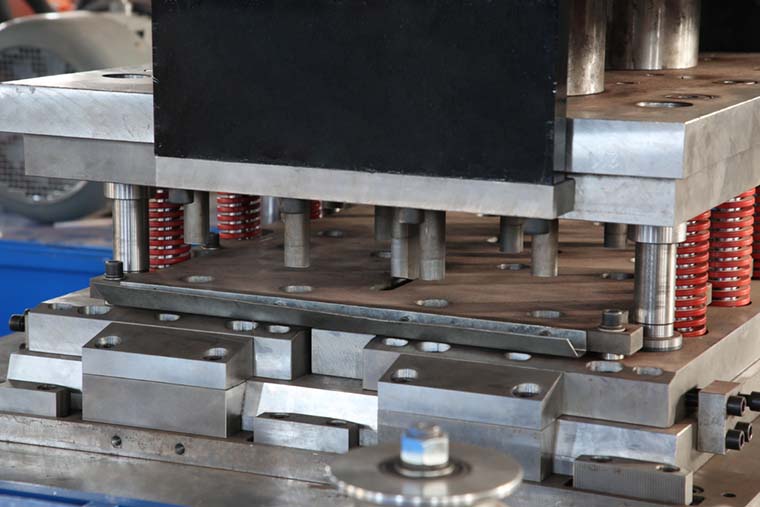

        2) Highway guardrail machine hydraulic pre-punching device

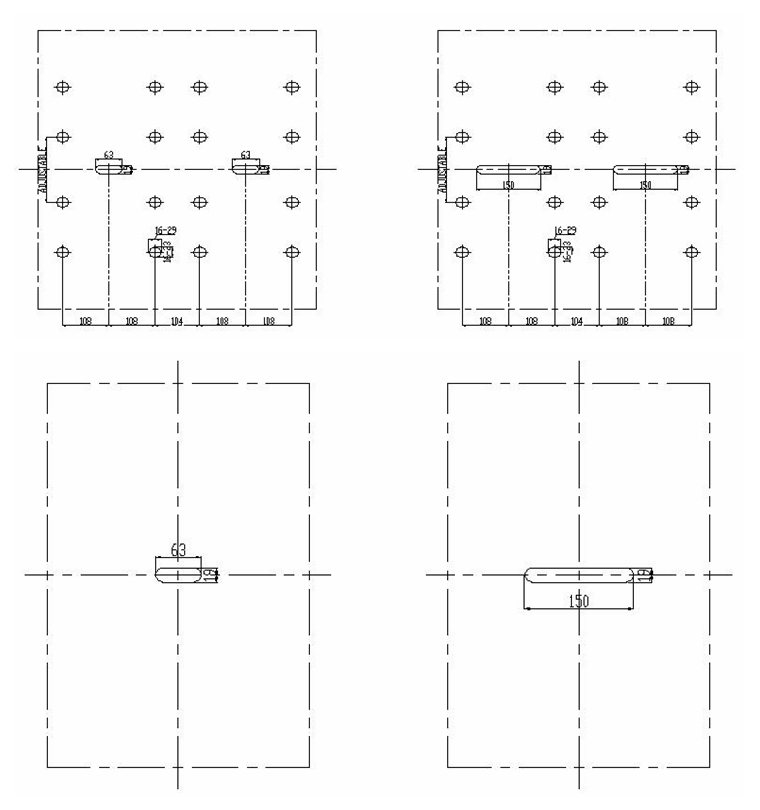

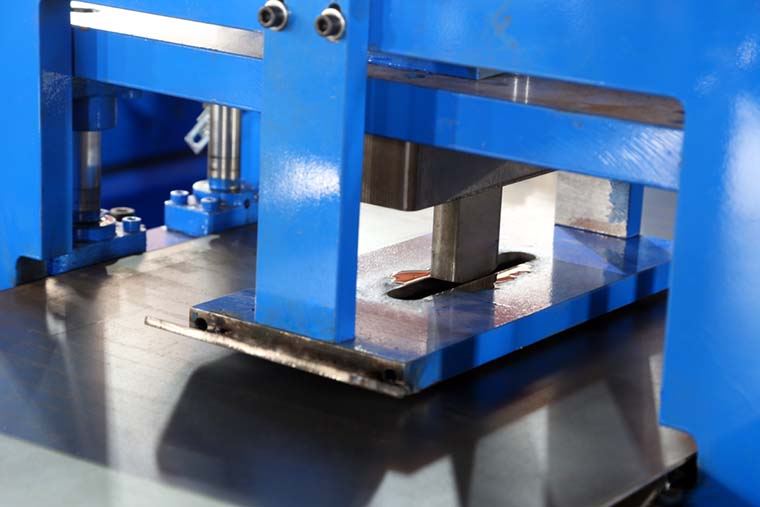

        The main oil press (200 tons); Two sets of punching mould, changing different die for different mould.

        Two sets of punching mould; The material of Punching pin and die: Cr12MOV.

        Punching single hole; Two sets of punching mould, changing different die for different mould.

        Two sets of punching mould; The material of Punching pin and die: Cr12MoV .Hydraulic Group: 22KW

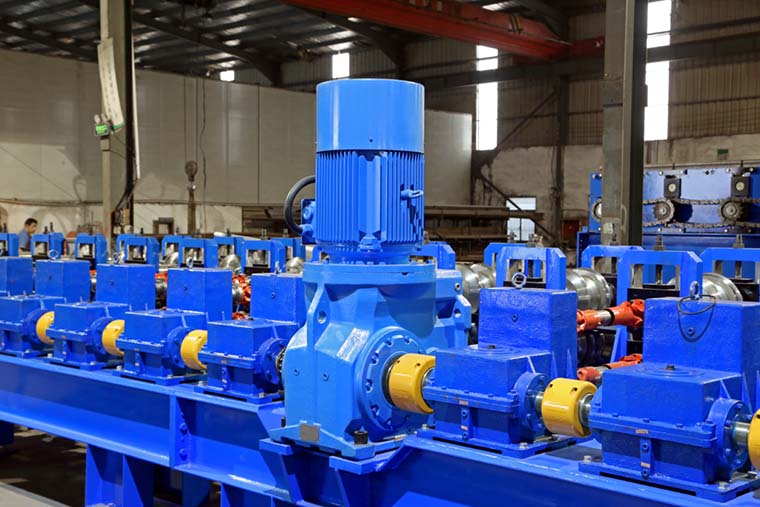

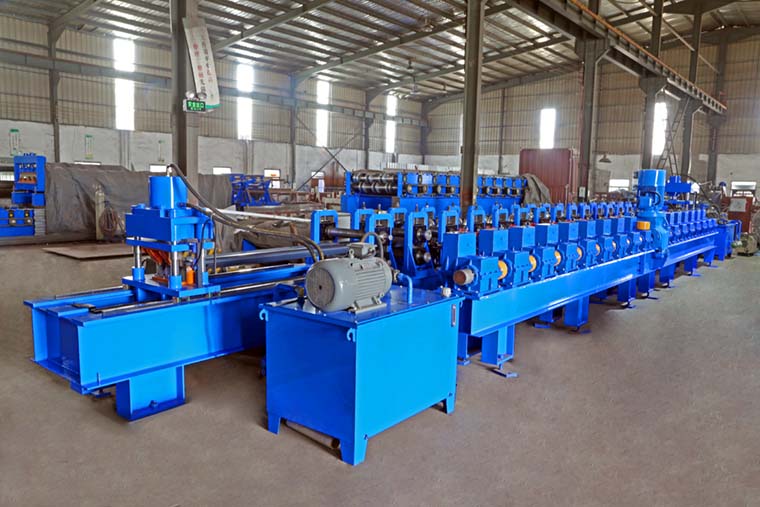

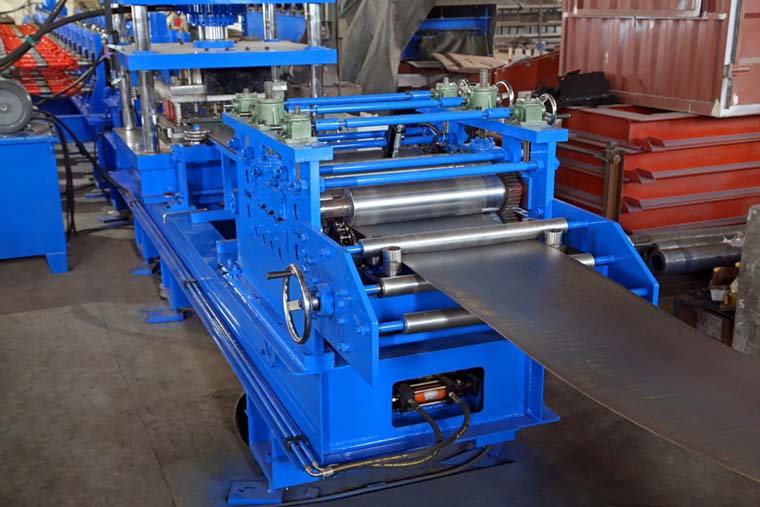

        3) Main Highway guardrail roll forming machine

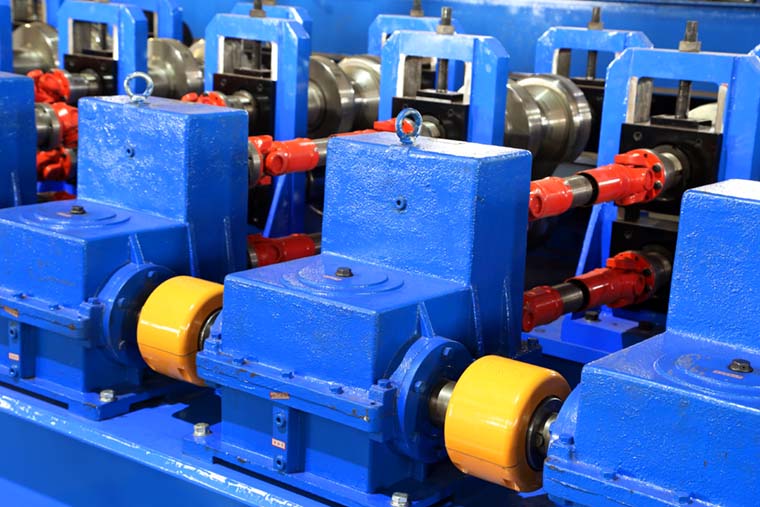

        Gear box drive (upper and lower rollers with power) ; Column type structure Design

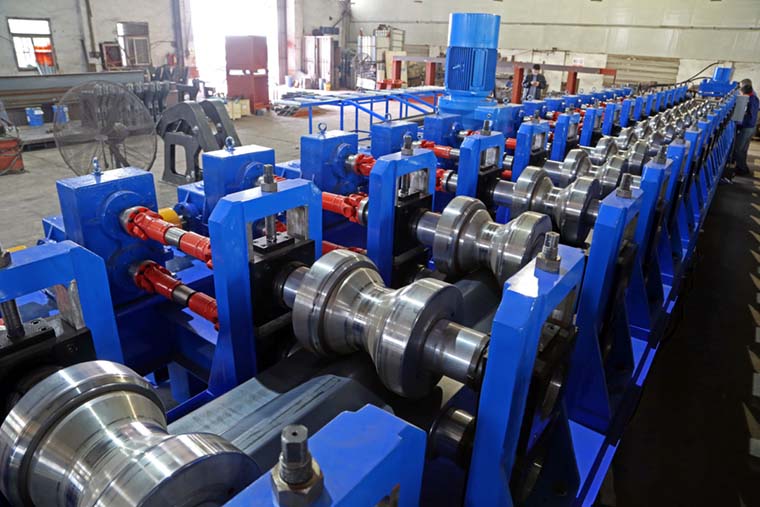

       18-step to form; Designing 16-step and keep 2-step for spare use

        Rollers manufactured from Cr12MOV (SKD11), precision machined

        Rack using 45# wage steel seal plate, the overall processing

        Main Motor=45KW , Frequency speed control

        Forming speed: 1pcs per minute based on 4320mm length


                                                Cr12MOV(SKD11)Rollers, Free Standing Structure



                                                                   45KW Powful Motor



                                                                   Gearbox Driving

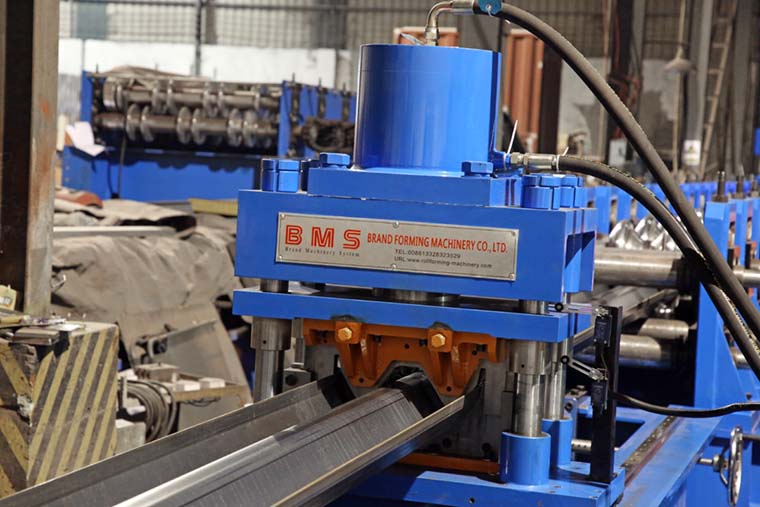

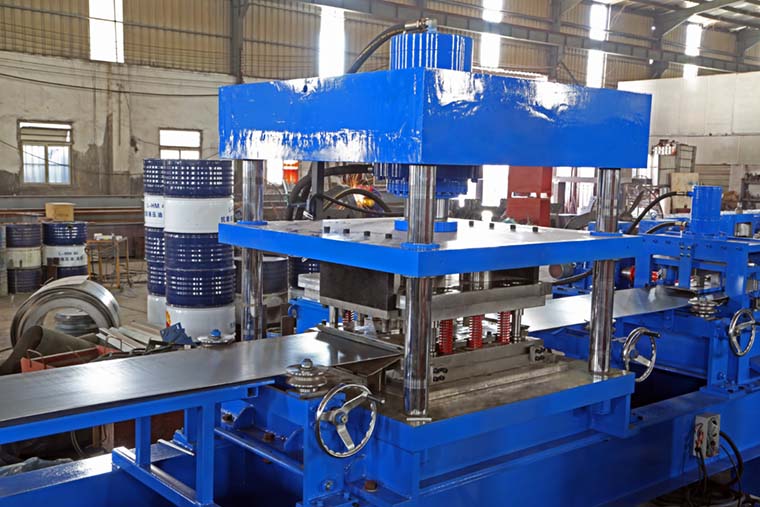

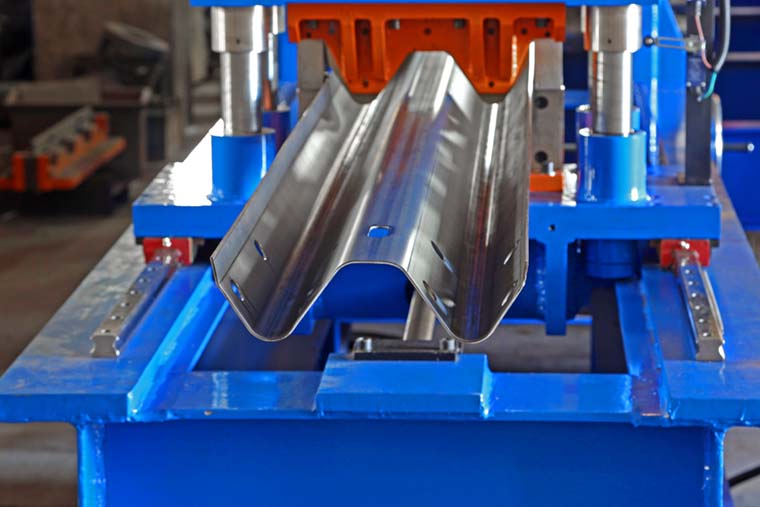

        4) highway guardrail roll forming machine post cutter

       When producing different length profiles, adjust the distance between the Cutting and punching

       To achieve a stop, once the completion of punching and cutting action

       Stop to cutting, No blanking cutting

       Hydraulic Group: 22 KW; Independent hydraulic station,

      Cutting tool material: Cr12MOV






        5) Highway guardrail roll forming machine decoiler

        Hydraulic system expand coil inner hole, Pump motor: 4KW

        Frequency Inverter to regulate turning speed, Motor: 2.2KW

        Coil inner–diameter=518±30mm ;Coil outer–diameter=1600mm

        Load capacity = Max.10Tons; Coil width = Max.600mm

        Pneumatic arm, air supply by the buyer

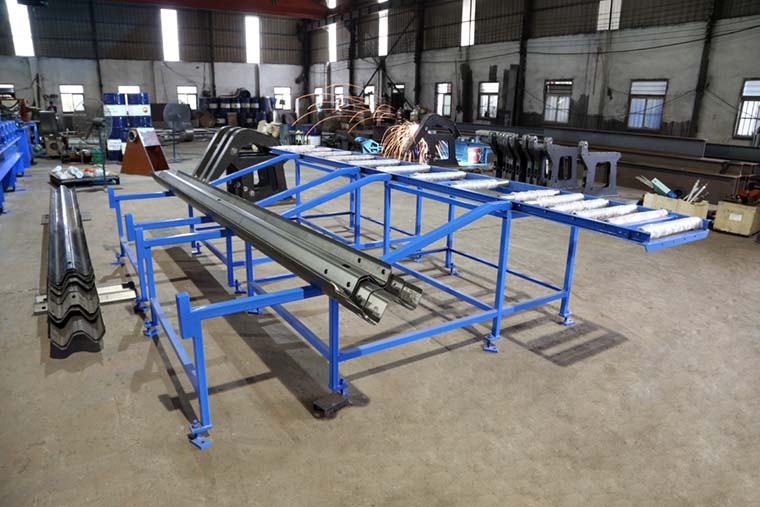

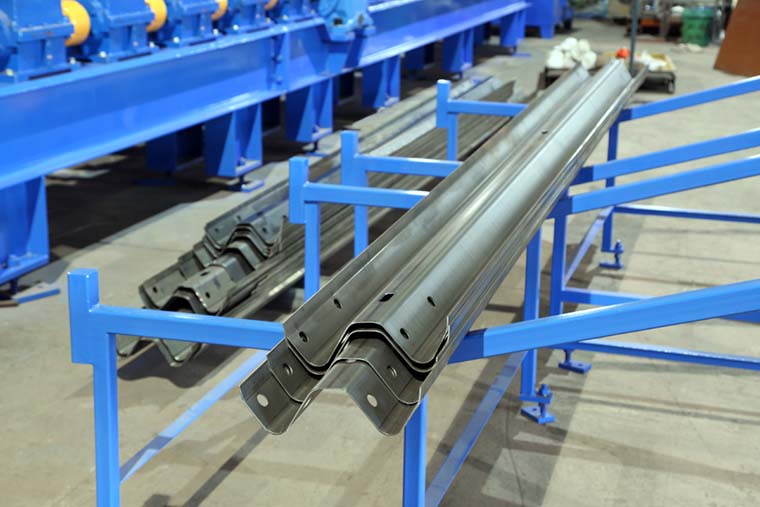

        6) highway guardrail machine exit rack

        Brand: BMS    Original: China

        Un-powered,one unit, 5.5 meters long






Other detailes of highway guardrail roll forming machine


Suitable for material with thickness 2.7- 3.4mm

Shafts manufactured from 45#,Main shaft diameter=φ105mm,precision machined

Motor driving,Gear chain transmission, 16 rollers to form and 4 rollers for straightening and levelling

Main motor=18.5KW , Frequency speed control. Forming speed approx.18m/min



PLC Control System (Touch screen:German Siemens , PLC: German Siemens

Inverter: Finland VOCAN/Taiwan DELTA/ALPHA, Encoder d:Japan Koyo/OMRON)


Combined with: PLC, Inverter, Touch Screen, Encoder, etc

Cut-to-lengthtolerance≤±2 mm

Control Voltage 24V

User's manual in English



After-sale service of highway guardrail machine

1. The warranty of highway guardrail machine

    is one year after the client receives the machine.

    Within the one year, we will courier the replacement parts to the client free of charge.

2. We offer technical support for the entire life of our machines.

3. We can send our technicians to install and train the workers in the clients' factories with extra cost.


Terms of trade

1. Minimum order quantity (MOQ): 1 piece

2. Delivery time: about 45 workdays

3. Port of loading: port of Xiamen

4. Type of payment: by T/T or by L/C

5. Export: Australia, UK, Ireland, Mexico, Brazil ,Israel ,Dubai, Russia ,India, Taiwan, Singapore,

    Malaysia ,Thailand,  Philippines, Myanmar ,Vietnam, South Africa, Mozambique,

    Zambia, Zimbabwe, Nigeria, Egypt, Sudan, etc.
