Products Detail:
|
Brand
|
HIMA
|
|
Part Number
|
F3330
|
|
Product Type
|
Output Module
|
|
Payment
|
T/T,100% advance payment
|
|
Shipping Port
|
Xiamen,China
|
|
Lead Time
|
In stock
|

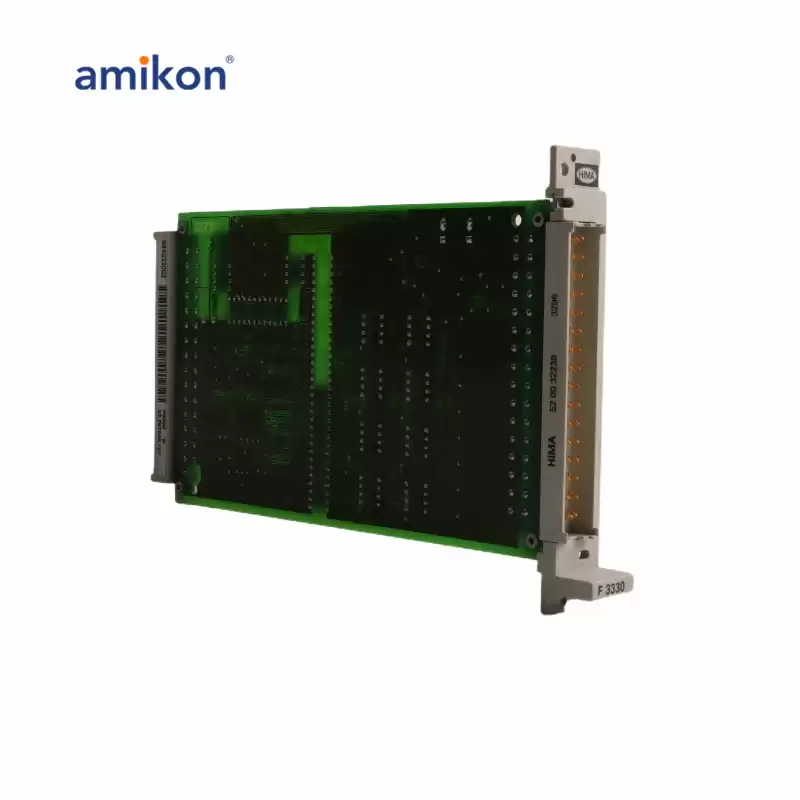

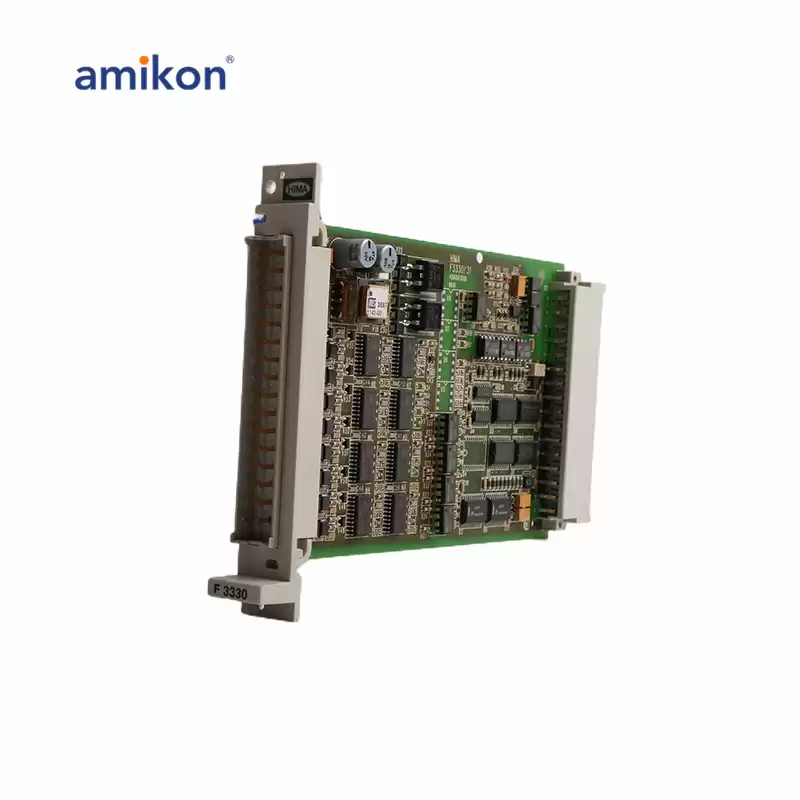

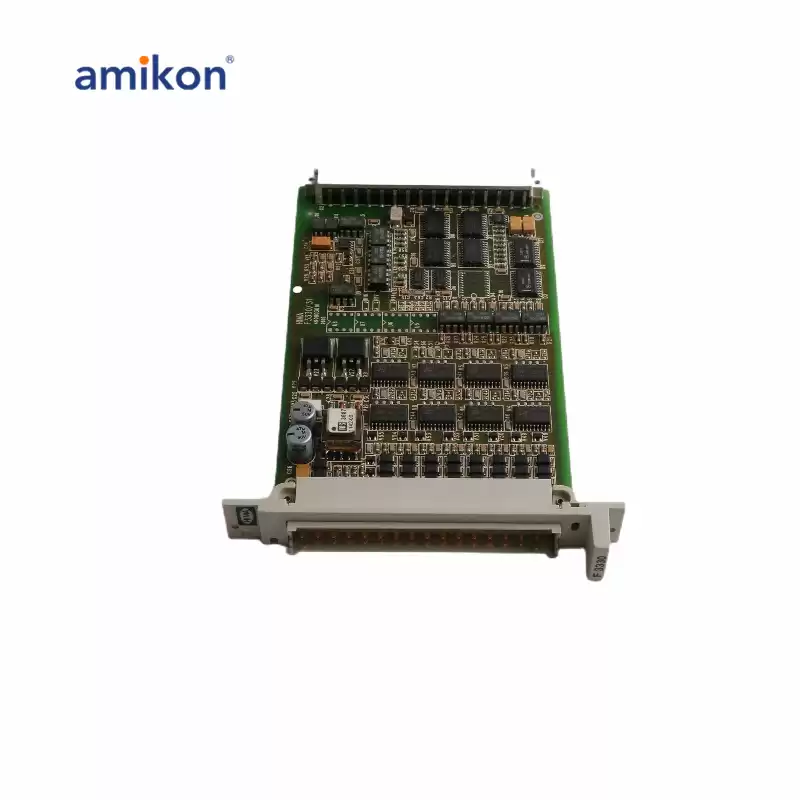

Manufacturer : HIMA
Product No. : F 3330
Product type : 8 fold Output module, safety related
resistive load or inductive load up to 500 mA (12 W), lamp connection up to 4 W, with integrated safety shutdown, with safe isolation, no output signal with break of the L- supply requirement class AK 1 ... 6
Outputs 500 mA, k short circuit proof
Internal voltage drop max. : 2 V at 500 mA load
Admissible line resistance (in + out) : max. 11 Ohm
Undervoltage tripping : at = 16 V
Space requirement : 4 TE
Operating data : 5 V DC =110 mA, 24 V DC = 180 mA in add. load
The F 3330 is an 8-channel output module designed for safety-related applications. It is capable of driving resistive or inductive loads up to 500 mA (12 W), with the ability to control lamp connections up to 4 W. The module includes integrated safety shutdown and safe isolation. It ensures that no output signal is generated in the event of a break in the L-supply, complying with requirement class AK 1 to 6.
Key Specifications:
Internal Voltage Drop: Max. 2 V at a 500 mA load
Admissible Line Resistance (in + out): Max. 11 Ohm
Undervoltage Tripping: Activated at 16 V
Space Requirement: 4 TE
Operating Data:
5 V DC: 110 mA
24 V DC: 180 mA (with additional load)
