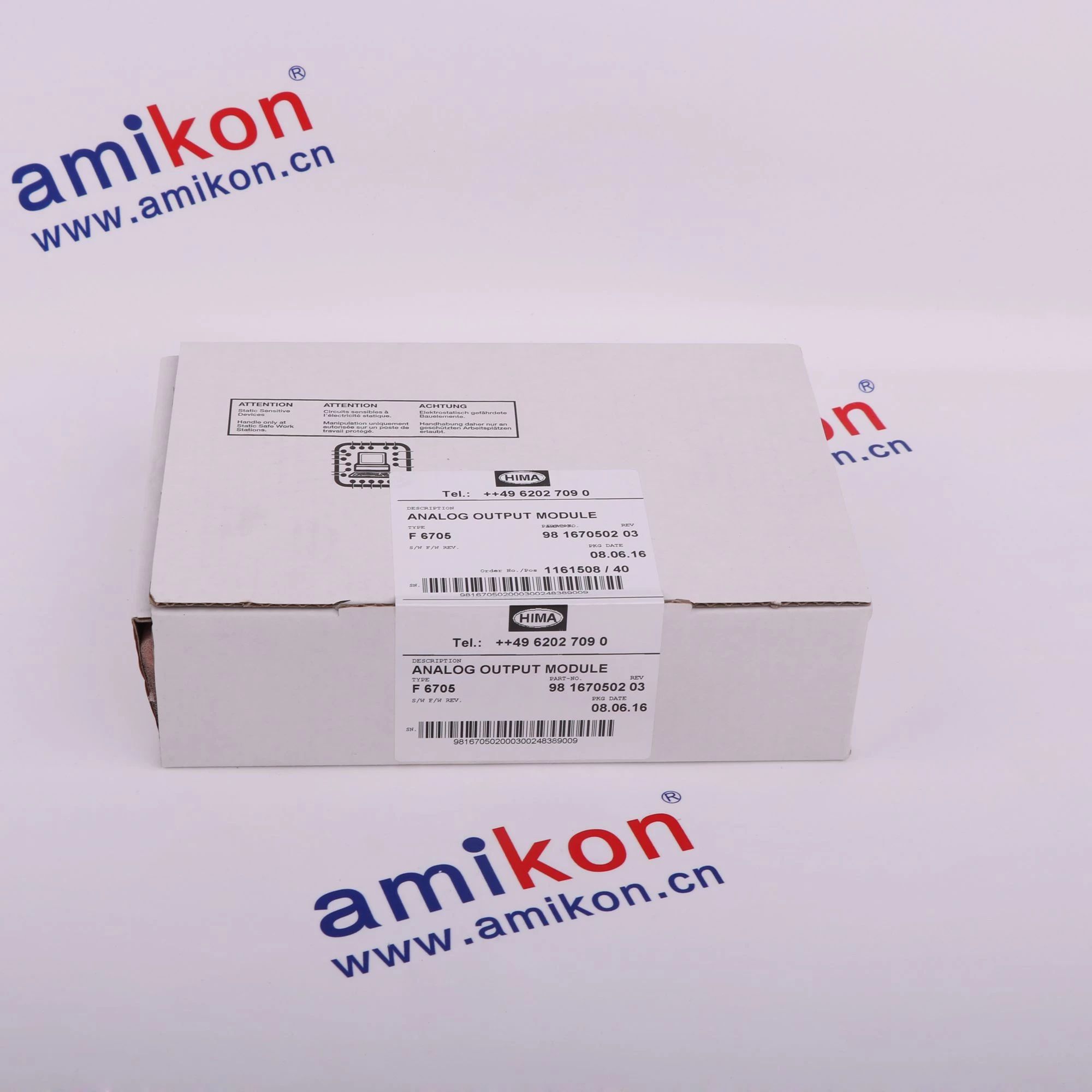

F 6705: 2-fold Converter digital/analog, safety related
Contact: Miya
Skype: live:miyazheng520
Email: sales@amikon.cn
Tel: 86-18020776792(Whats App )
QQ :2851195450
Description
The module is automatically fully tested during operation. The main test routines are:
– Linerarity of the DA-converter
– Cross-talk between the outputs
– safety shut down
|
Resolution
|
12 bits (4095 steps)
0 = 0 mA, 3840 = 20 mA
|
|
source mode
|
≤ 550 Ohm incl. line resistance to the burden
|
|
sink mode
|
≤ (UQ - 10 V) / 21.2 mA UQ = source voltage
|
|
Basic error
|
≤ 0.2 % (40 µA) at 25 °C
|
|
Operating error
|
≤ 0.4 % at 0...+60 °C
|
|
Line length
|
max. 1000 m (watch for burden)
|
|
Electric strength
|
250 V against Analog-GND
|
|
plug-in
|
I ≤ 40 µA
|
|
Source voltage UQ (sink mode)
|
10 ... 30 V
|
|
Operating data
|
5 V DC: 85 mA, 24 V DC: 130 mA
|
