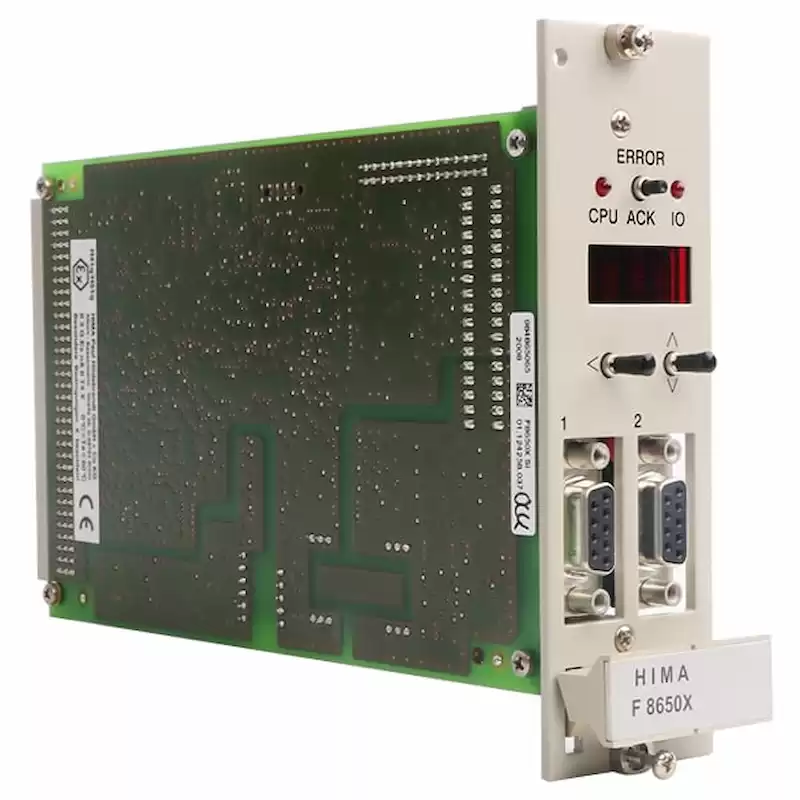

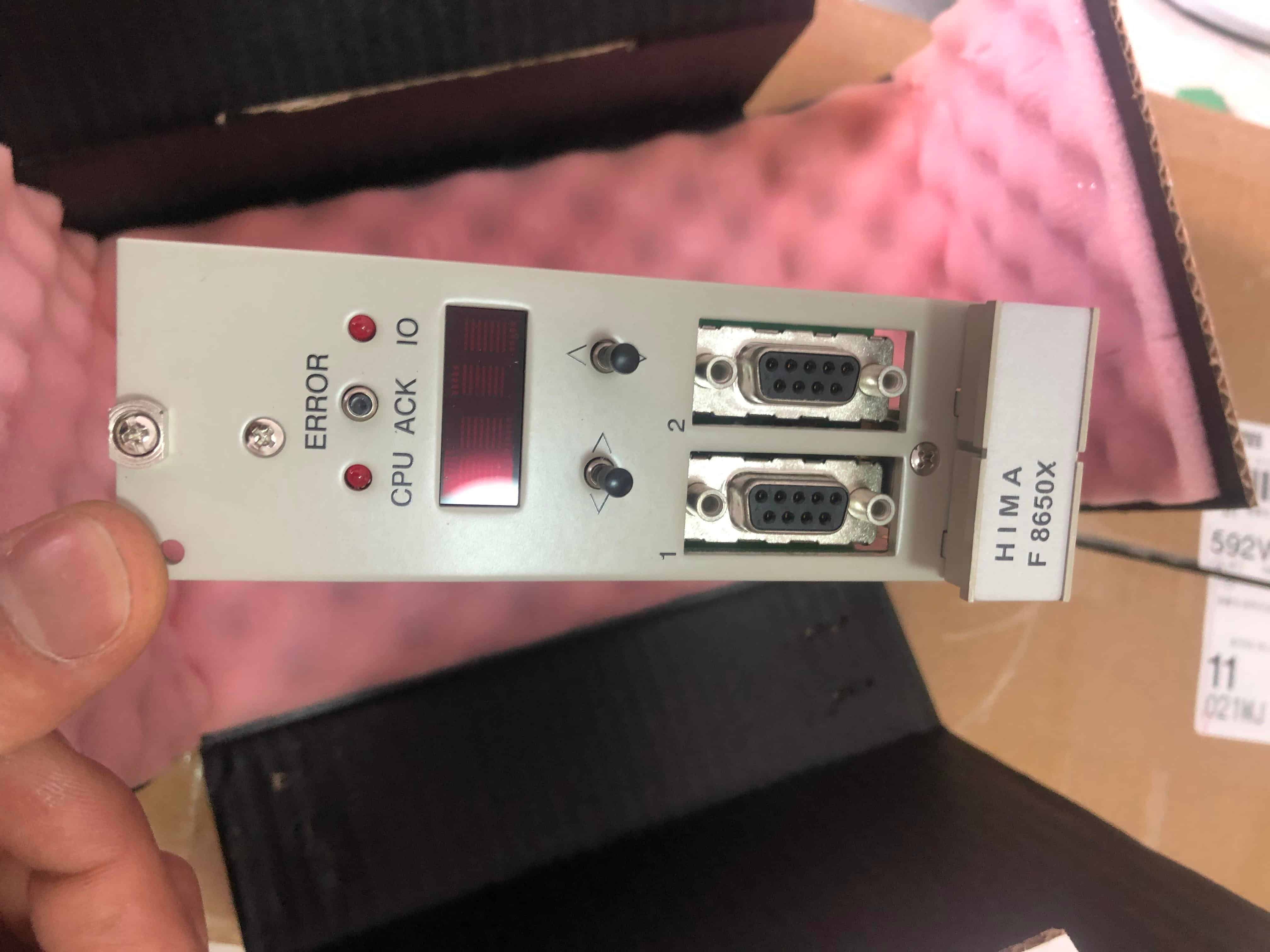

F 8650X Central module
Use in the PES H51q-MS, -HS, -HRS,Safety-related, applicable up to SIL 3 according to IEC 61508 Central module with two clock-synchronized microprocessors.
These essential functions are:
· two clock-synchronised micro processors
· each mikroprocessor with an own memory, one processor operates with real data and program and the other one with inverted data and program
· testable hardware comparer for all the external accesses of both micro processors, in case of a fault the watch dog will be set to the safe status and the status of the processor is announced
· Flash-EPROMs of the program memory for the operating system and the user's program usable for min. 100.000 writing cycles
· Data memory in sRAM
· Multiplexer to connect I/O bus, DPR and redundant CU (not used in the H51q-MS system)
· Battery backup of the sRAMs via batteries on the central module with monitoring
· 2 interfaces RS 485 with galvanic isolation. Transm. rate: max. 57600 bps. Set to 9600 bps and to 57600 bps by switch, or setting also of other transm. rates by software (the software values have priority)
· Diagnostic display and 2 LEDs for information out of the system, I/O level and user's program
· Dual Port RAM for fast memory access to the second central module (not used in the H51q-MS system)
· hardware clock, battery backed
· I/O bus logic and connection to the input-/output modules
· Fail-safe watchdog
· power supply monitoring, testable (5 V system voltage)
· Battery monitoring
Technical Specifications
| Manufacturer |
Hima |
| Part Number |
F 8650X |
| Ordering Information |
F 8650X |
| Product Catalog |
H51q system |
| Description |
Central Module |
| Voltage |
5 V |
| Current |
2 A |
| Dimension |
20.3 cm x 12.7 cm x 2.5 cm |
| Weight |
0.2 kg |
100% brand new and original,All the goods will be tested before shipment.
For the in stock items, we will send the order out within 5-7 days after receive the payment.
Global supplier of quality automation and control components.
Topteng offers a 12-month warranty from the date of delivery.
In the event of non-conforming product ( if damaged or incorrect product is received ),
Any nonconformity must be reported within 7 days of receipt of goods.
Questions? Call +86 18050017653 or Email sales4@nseauto.com
