Histology instruments Tissue embedding center
with cold plate with capacity 6L
The model number: BM-IV
Specifications
----5 independent heating controlling parts
---Big capacity 6L of paraffin container
---Two histo-trimmer on the working plate

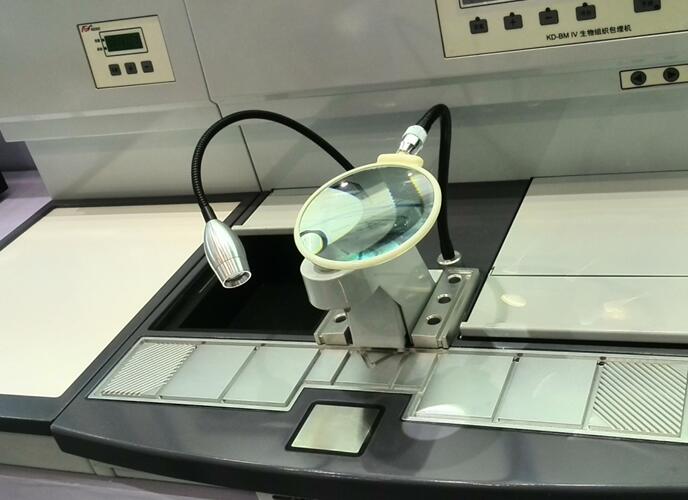

---With Magnifier
Features:
---Use OLED screen which is energy-saving, good and clear vision from any angle

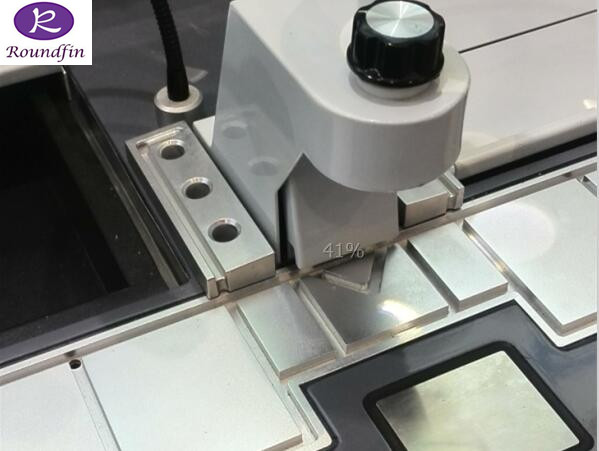

---Adopt advanced heating techonology and PID temperature controlling procedures. Embedding center has left and right thermal chambers, hot plate, forcep wells, dispenser, cryo-plate. The temperatures for these 6 parts are controlled separately.Adjustable gravity-feed paraffin dispenser.
---Histo-trimmers on two ends of the hot plate is convience for user to clean the cassttes.
---Adjustable magnifier
---Two modes of operation: Automatic and manual.
---Keys with light indicator
---Low voltage and adjustable LED illuminating system with bent copper pipe
---Two module configuration options (left to right or right to left)
Technical specifications for embedding center:
---Adopts advanced heating technology
---Volume of paraffin tank:≥6 liters
---Temprature range: ambient~85°C
---Temprature for cryo-plate:30~-15°C
---Presion error:±1%
---Paraffin control:Finger touch plate, foot pedal
---Fully programmable ON/OFF control: Allows automatic system start and stop, Permits manual override to bypass timer operation
---Left and Right Thermal Chamber size:235×160×50 mm
---working plate size:513×93mm
---Voltage: AC220V 50HZ / AC110V 60HZ
---Power: 1000VA
Overall Dimension:680×580×420mm
Weight: 35kgs(KD-BMIV)
Technical specifications for cooling plate:
Use green digital screen which indicates the setting temperature and real temperature.
The cooling plate could connect to embedding center and controlled by embedding center to start and stop.
Temprature setting range:30~-35°C
Chilling area: 315×380mm
Voltage: AC220V 50HZ / AC110V 60HZ
Power: 100VA
Fuse:F3A/AC250V
Overall Dimension:680×360×400mm
Weight: 25kgs
