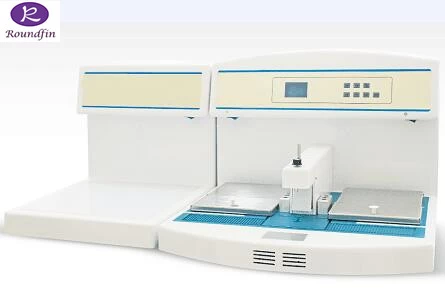

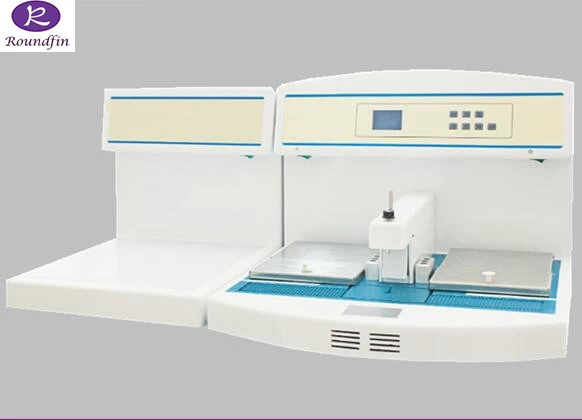

Histology Products Tissue embedding working station with cold plate with capacity 6L

Model Number: RD-98

Feature:

For a long time excellent quality, performance, safety and reliability and ahead of other similar products.

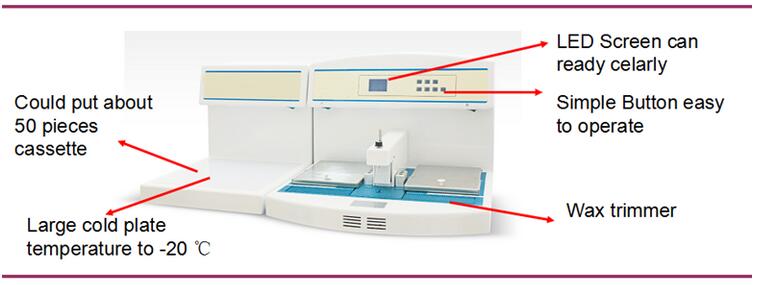

0.1- Use OLED screen which is energy-saving, good and clear vision from any angle .

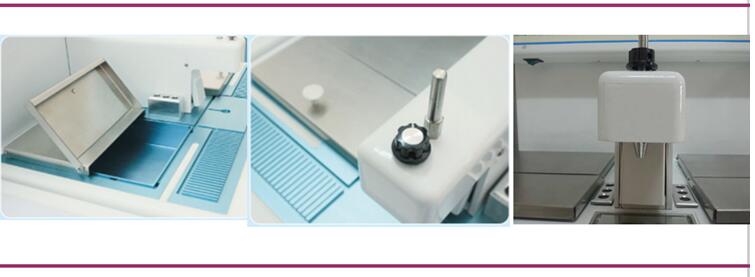

0.2- Adopt advanced heating techonology and PID temperature controlling procedures. Embedding center has left and right thermal chambers,

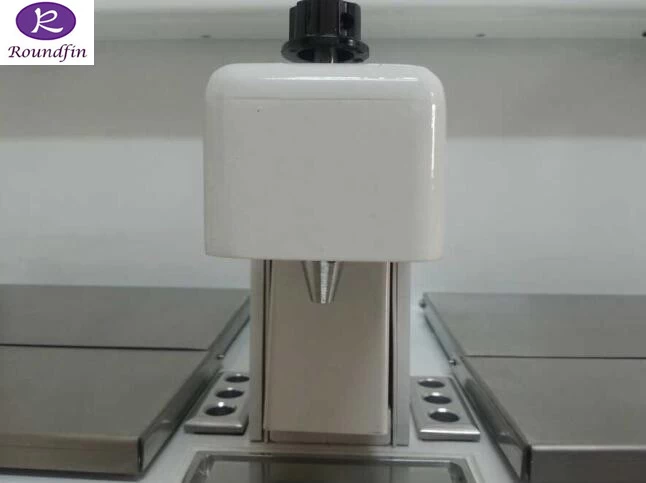

hot plate, forcep wells, dispenser,  cryo-plate. The temperatures for these 6 parts are controlled separately.Adjustable gravity-feed paraffin dispenser.

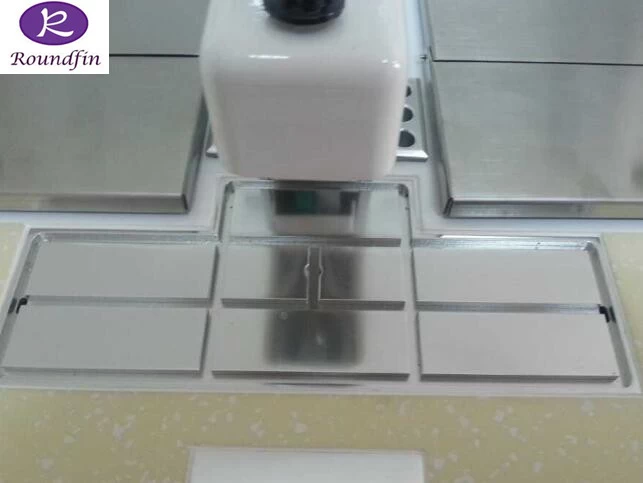

0.3-The tissue embedding cassettes and base molds trays are removable and can be set at different temperatures.

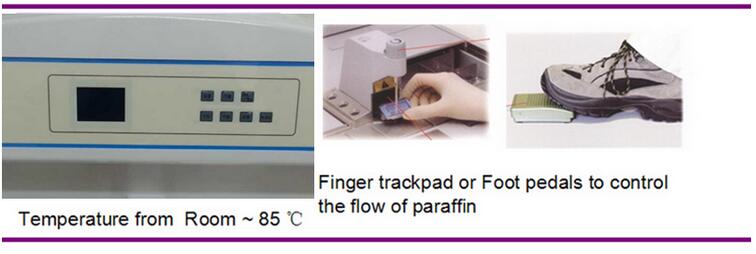

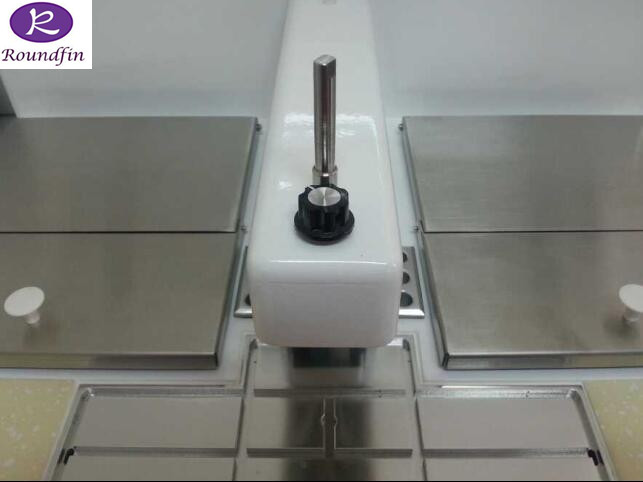

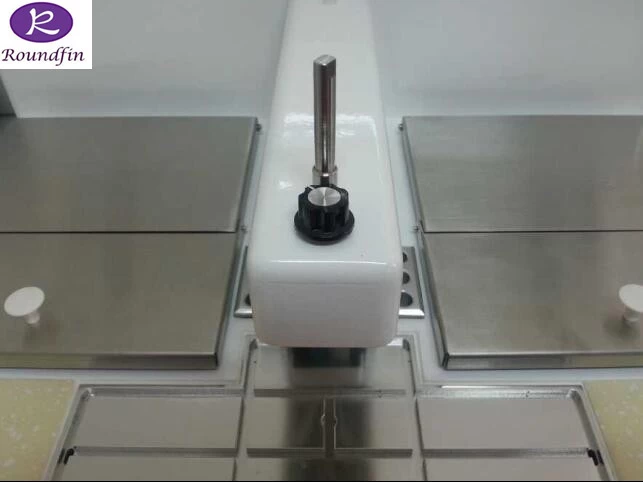

The setting knobs allow to adjust the precise paraffin flow.

Technical Specification :

---Nominal supply voltage: 220V/50HZ or 110V/60HZ

---Maximum power draw: 1500VA

---Working temperature: From ambient to 99 centigrade

---Increments: 1 centigrade.

---Capacity: Paraffin reservoir: 6.0L

---Cassetes/molds tray: 1.4L

---Dimensions: (W*D*H) 600mm * 650mm * 450mm

---Weight: 40kg

Cryo Console:

---Nominal supply voltage: 220V/50HZor110V/60HZ

---Maximum power draw: 100VA

---Working temperature: From ambient to –20 centigrade

---Increments 1 centigrade

---Dimensions: (W*D*H) 410mm * 660mm * 450mm

---Weight: 26k

Thermal Console:

---Nominal supply voltage: 220V/50HZor110V/60HZ

---Maximum power draw: 400VA

--Working temperature: From ambient to 100 centigrade, Increments 1 centigrade

---Capacity: 2.5L

---Dimensions: (W*D*H) 600mm * 650mm * 450mm

---Weight: 14kg
