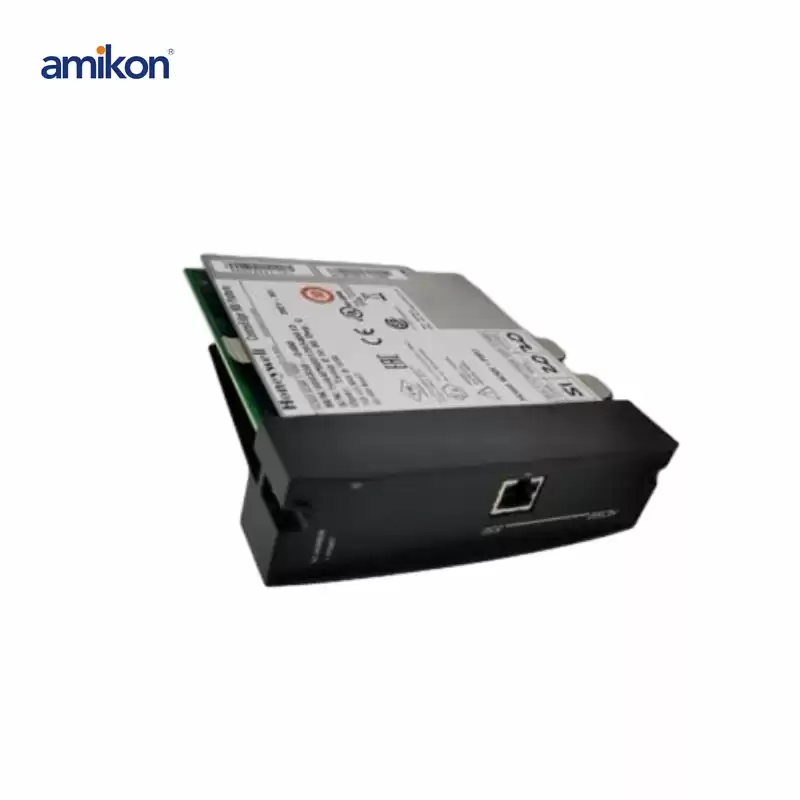

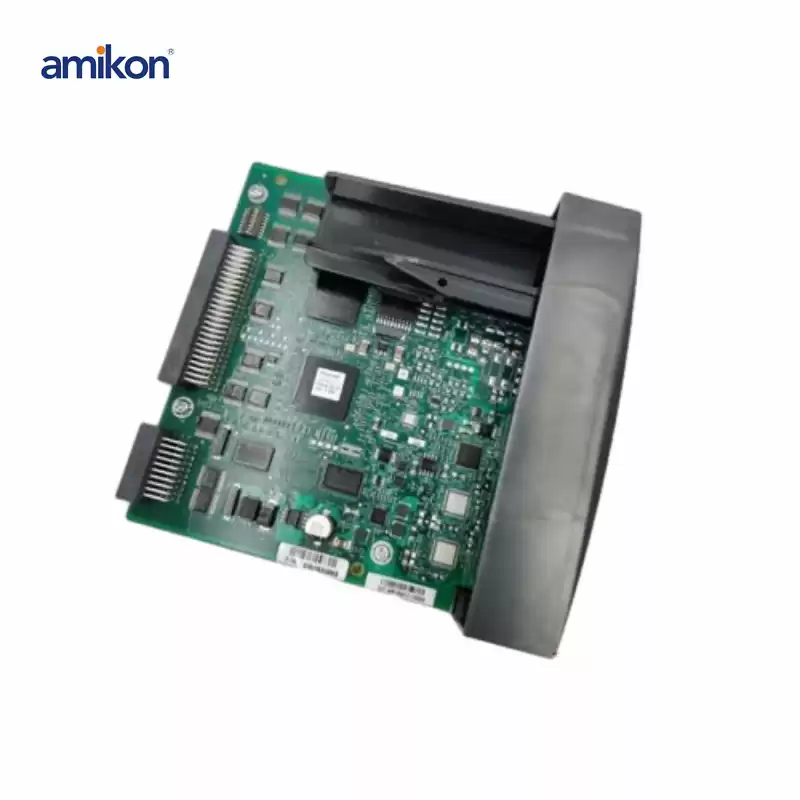

Honeywell 900S50-0460 I/O Scanner Module
1.The I/O Scanner 1 module resides in a remote I/O rack along with the I/O modules.
2.The Scanner 1 and the controller are connected to each other’s I/O port.
3.The scanner collects data from the Input modules populated in its remote rack and communicates the information to the controller.
4.Output data is sent from the controller to the Scanner 1 module which in turn sends the data to appropriate output module.
5.Data exchanges are synchronous with the controller scan time to maintain deterministic operation.
6.Diagnostic status of I/O modules is also monitored and reported to the controller when detected.
Contact Information!
Discuss pricing and delivery time with a sales representative
+86 189 6519 6563
sales17@amikon.cn
+86-189 6519 6563
Product Details
|
Module Number
|
900S50-0460
|
|
Dimension
|
144 x 145 x 35 mm
|
|
Weight
|
2104g
|
|
Item
|
4 I/O slot Rack1,2
|
|
Lead/Reserve indication
|
Green arrow LEDs
|
|
Mode Switch
|
Removable key ( 2 keys supplied)
|
|
Power Supply Loading
|
5V; 22mA max
|
