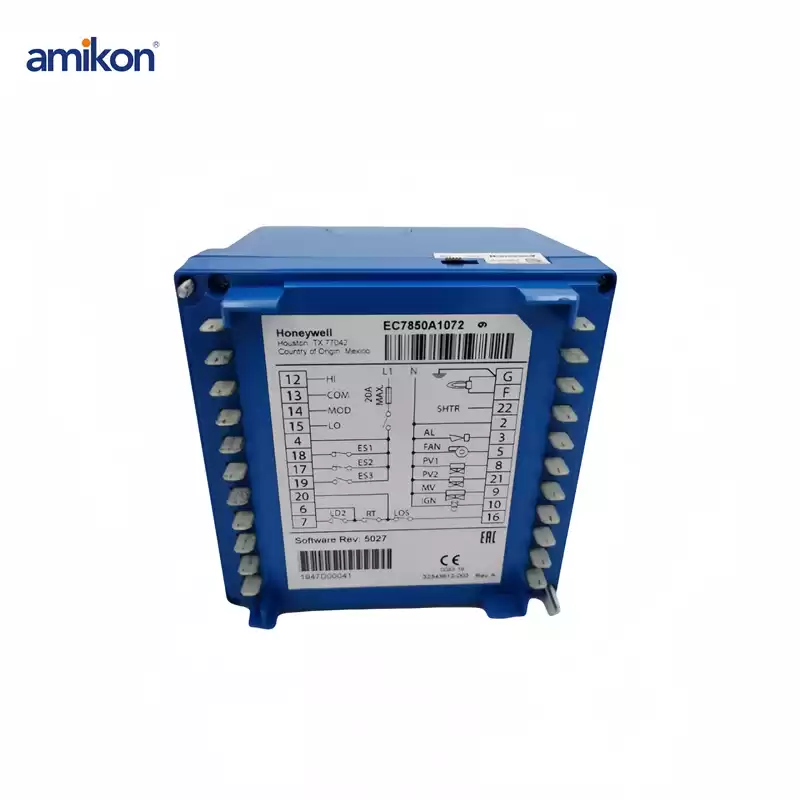

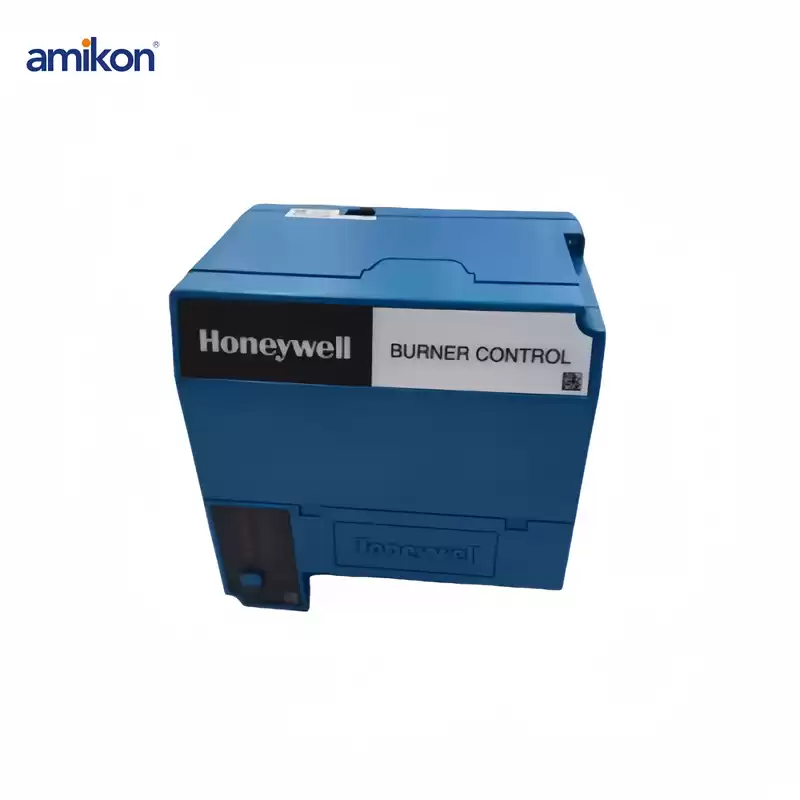

Honeywell EC7850A1072 burner control
|
Product Number
|
EC7850A1072
|
Order(MOQ):
|
1
|
|
Product Origin:
|
USA
|
Payment:
|
T/T
|
|
Manufacturer:
|
Honeywell
|
Service:
|
One-Stop Service
|
|
Weight:
|
0.7 KG
|
Shipping Port:
|
XIAMEN
|
|
Specification Data
|
 (PDF)
|
Order(MOQ):
|
1
|
The Honeywell EC/RM7830, EC/RM7850 Relay Module is a microprocessor-based integrated burner control for automatically fired gas, oil, or combination fuel single burner on/off (EC/RM7830A) or full modulation (EC/RM7850A) power burner applications. The EC/RM7830A or EC/RM7850A system consists of the relay module, wiring subbase, amplifier and purge card. Options include the keyboard display module (KDM), personal computer interface, Data ControlBus™ Module, and Combustion System Manager® Software. The KDM can be mounted on the relay module or on the face of a
panel door. The KDM can also be remotely mounted from the panel if this is approved for the application.The EC/RM7830, EC/RM7850 is programmed to provide a level of safety, functional capability and features beyond the capacity of conventional controls.The basic functions of the EC/RM7830A, EC/RM7850A includes automatic burner sequencing, flame supervision, system status indication, system or self-diagnostics, and troubleshooting.
FEATURES
• Safety Features:
— Interlock check.
— Dynamic Ampli-Check™.
— Closed loop logic test.
— Dynamic input check.
— Dynamic safety relay test.
— Dynamic self-check logic.
— High Fire Purge Switch test (EC/RM7850A).
— Expanded safe-start check.
— Internal hardware status monitoring.
— Low Fire Start Switch test (EC/RM7850A).
— Tamper-resistant timing and logic.
• Ignition attempts: 1 or 5. Selectable by model number.
• Access for external electrical voltage checks.
• Application flexibility.
• Microcomputer technology allows dependable,
long-term operation.
