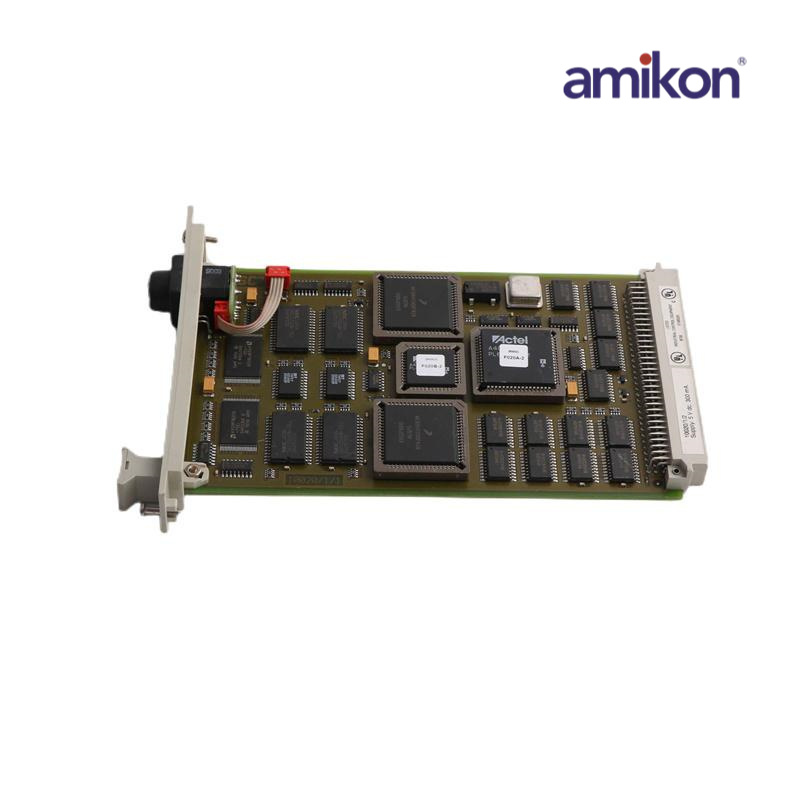

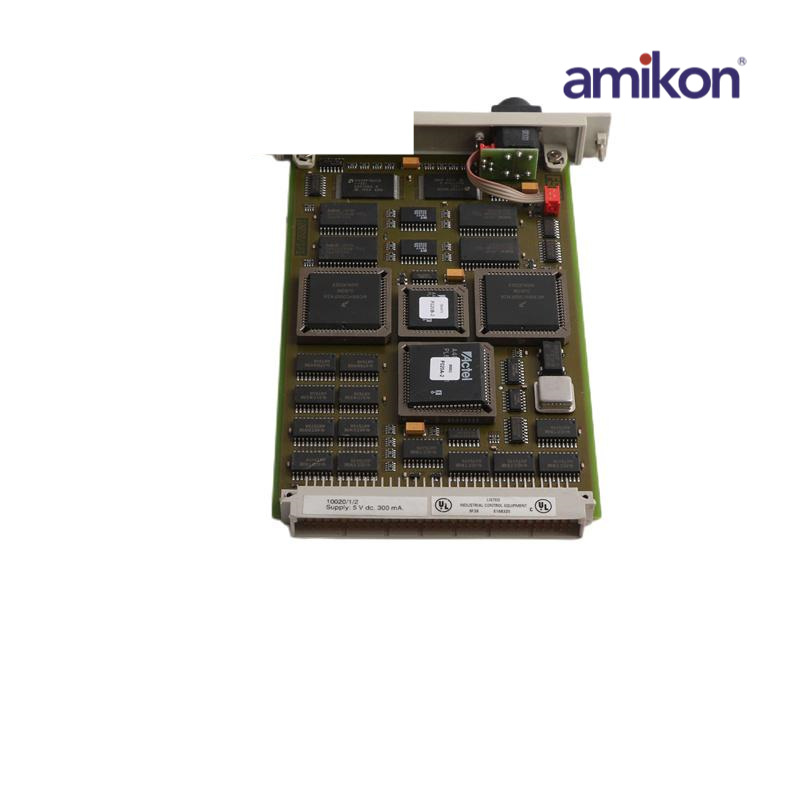

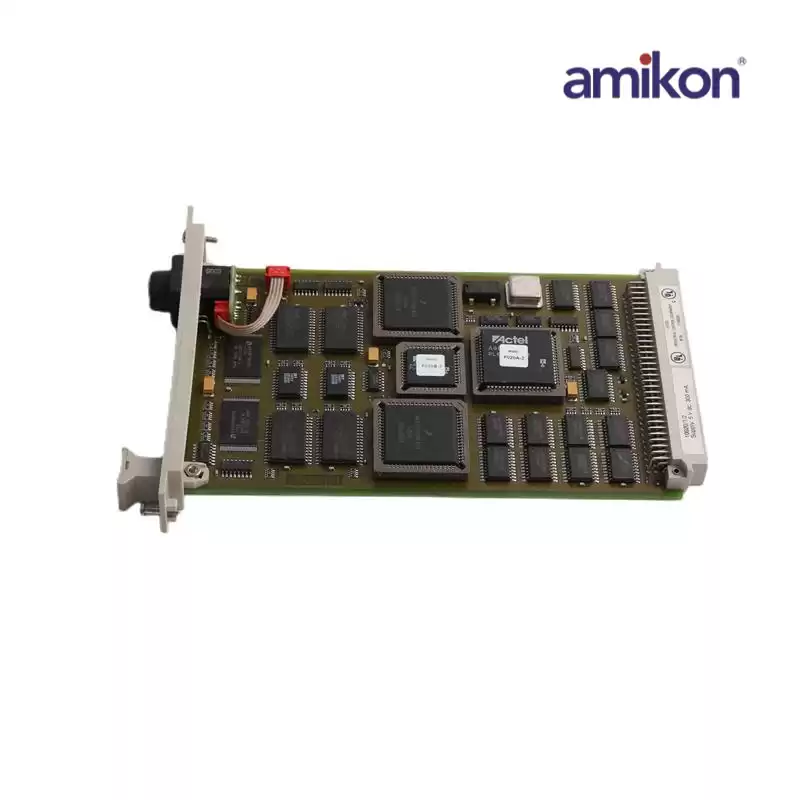

Honeywell 10020/1/2 FSC CPU Module

Manufacturer/Brand：Honeywell

Product Package：Serial Interface

Part Number：10020 1 2

Shipping Term：TNT DHL FEDEX EMS UPS

Dimensions ：2.5cmx15.2cmx20.3cm

Weight:：0.1KG

The 10020/1/2 is FSC CPU Module.The Central Part (CP) of the FSC system is connected to the I/O level via the vertical bus driver (VBD) modules, which are located in the Central Part rack. A maximum of 14 vertical bus drivers can be installed per Central Part. Each vertical bus driver can support up to 10 horizontal bus driver (HBD) modules.

The maximum distance between a vertical bus driver and any I/O rack on the vertical bus is 5 m (16.4 ft).The bolts on the 96-pin connector are used to secure the 10001/A/1 part of the VBD to the 19-inch rack. This allows exchange of the electronic part of the VBD without disconnecting the vertical bus flatcable.
