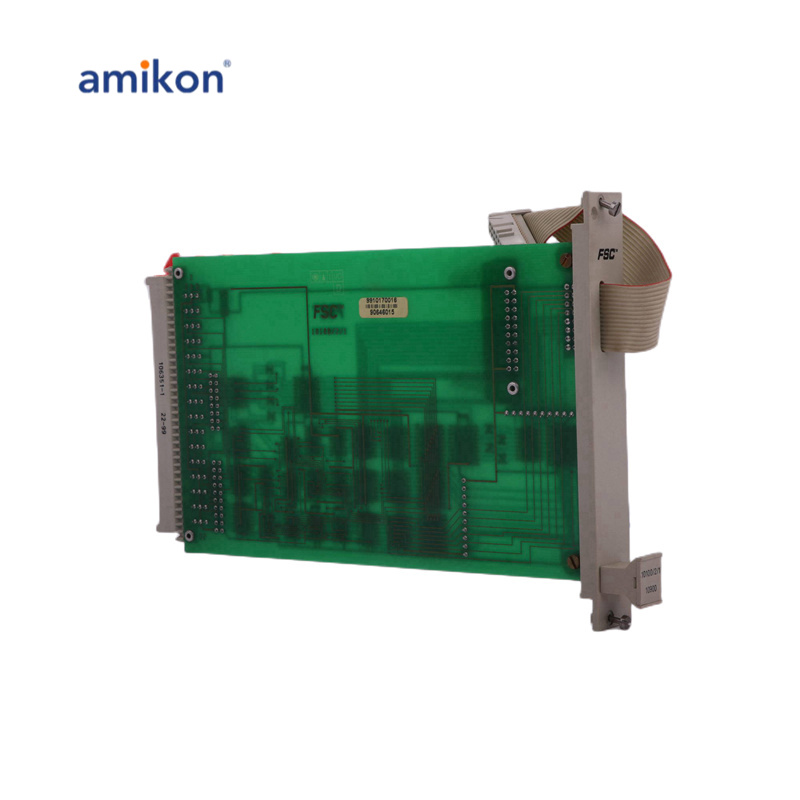

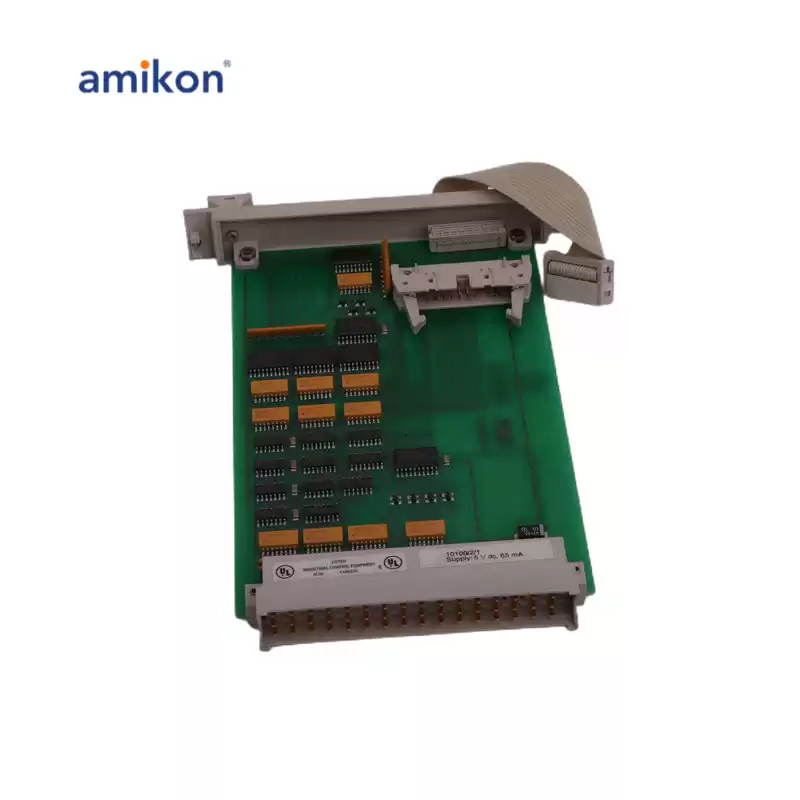

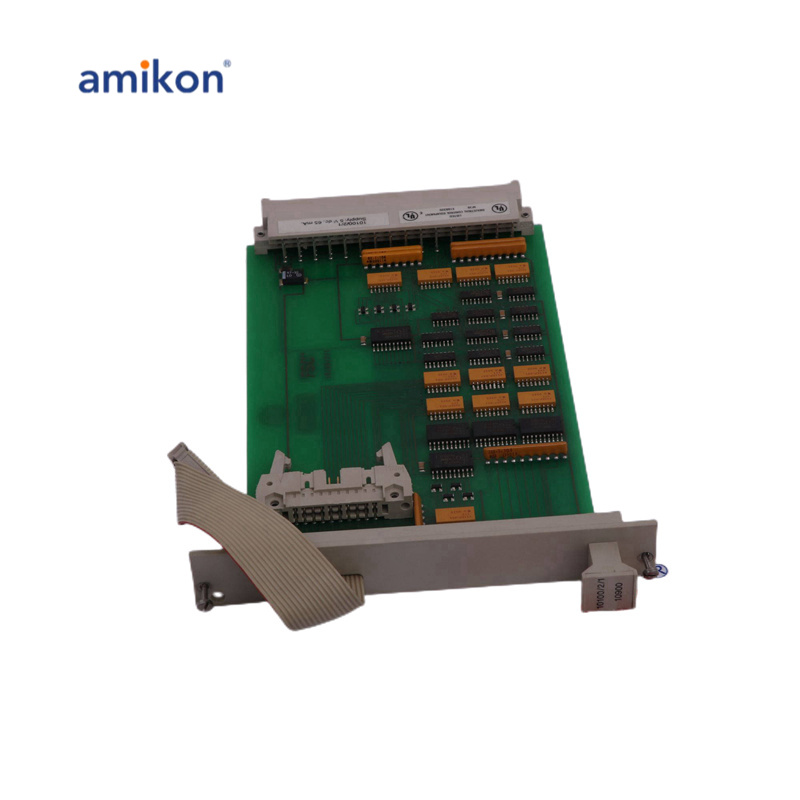

The horizontal bus driver (HBD) module is a basic module which is installed in the I/O racks.The vertical bus flatcable between the Central Part and the I/O rack is connected to the HBD module via the back connector CN1 (see Figure 2).
|
|
|
|
10100/2/1 Data sheet
|
The flatcable which extends from the front of the module connects the HBD module to the horizontal bus above the I/O rack.
|
|
The address selection lines of the I/O modules terminate on the back of the horizontal bus(es) via a flatcable on connector CN3.
|
|
The HBD may be replaced with the power switched on, but the Central Part will shut down if the HBD is safety-related.
|
|
