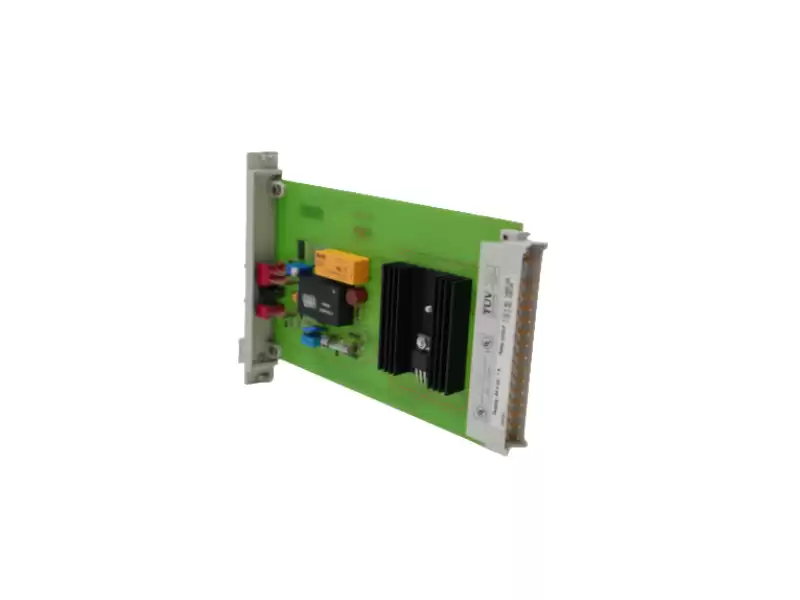

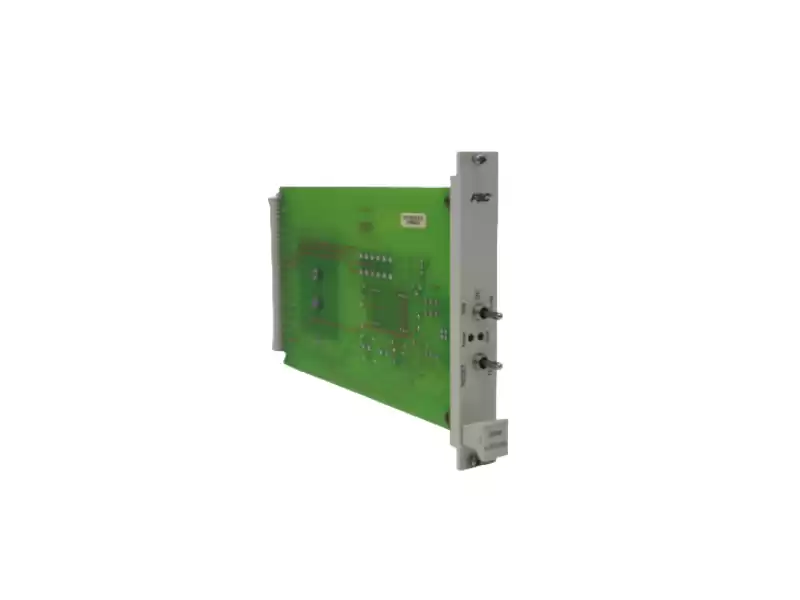

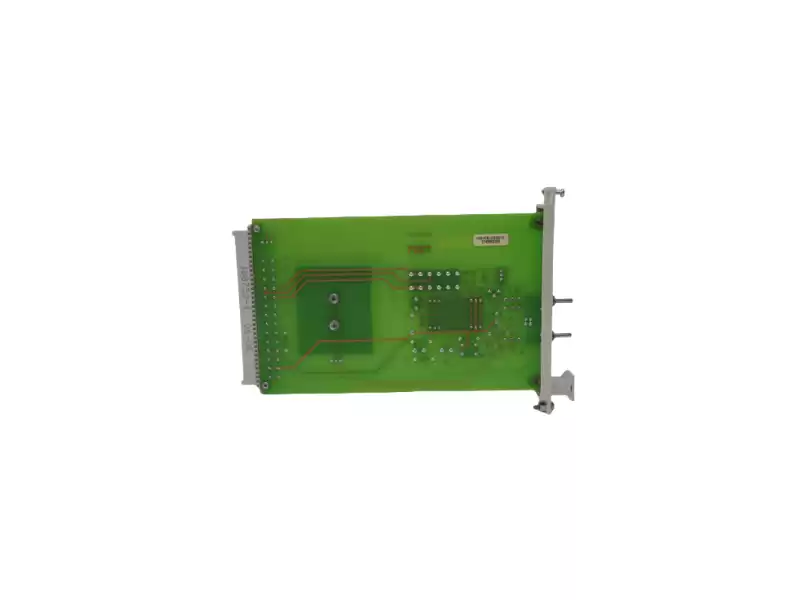

What is the10310/2/1?
Honeywell 10310/2/1 is precisely designed as a highly reliable Earth Leakage Detection (ELD) module for this purpose - used to monitor DC systems such as 24VDC, 48VDC, 60VDC, and 110VDC. When abnormal leakage or grounding faults are detected, an alarm or protection signal is output.
What is the main function of 10310/2/1?
Ø 10310/2/1 can monitor leakage and ground current in DC systems (such as 24V / 48V / 60V / 110V). Once any abnormality (poor grounding, leakage current, etc.) is detected, it can trigger safety protection or alarm in a timely manner through digital output/relay alarm. Prevent equipment damage or personal danger.
Ø Supports multiple DC voltage systems (24/48/60/110VDC), suitable for different power supply standards and on-site configurations, with high flexibility and applicable to various industrial environments.
Ø It provides digital/relay output, facilitating integration with existing PLCS, DCS or safety systems, and facilitating centralized monitoring/automatic alarm/interlock protection.
Ø Standard rack-mount module/control cabinet compatibility, easy to install, replace and maintain - very friendly for system upgrade/maintenance/long-term operation and maintenance (MRO).
Ø Brand-new/Original packaging (USA origin) can be obtained through distributors - for projects with high requirements for system reliability and security, using original ELD modules is more reliable.
What are the key technical specifications?
|
Parameter
|
Value
|
|
Model/Part Number:
|
10310/2/1
|
|
Type:
|
Earth Leakage Detector (ELD)/Leakage/Floor Drain Detection Module
|
|
Applicable systems/scenarios:
|
Industrial DC systems (24VDC / 48VDC / 60VDC / 110VDC, etc.), commonly used in control cabinets, PLC/DCS safety monitoring systems, for real-time monitoring of ground wire/leakage status, ensuring system and personnel safety.
|
|
Country of Origin:
|
USA
|
|
Typical application scenarios
|
|
Industrial DC control cabinets/automation systems - Conduct grounding/leakage monitoring for control cabinets, PLCS, and DCS systems that use DC power supplies (24/48/60/110VDC) to ensure the safe operation of the systems.
|
|
Process/Petrochemical/Chemical/Energy/Power/Heavy Industry - It is used as a floor drain protection module in situations with high requirements for safety, electrical isolation, and grounding protection, such as petrochemical plants, oil refineries, power plants, and control cabinets of heavy industry equipment.
|
|
Safety system/redundant system/spare parts configuration - used for system safety monitoring, redundant protection, emergency interlock, and accident prevention, is an important component of safety design.
|
|
System Upgrade/Maintenance of old systems/Spare Parts Management (MRO) - Inventory management of old systems or discontinued systems as spare parts for future maintenance or expansion.
|
|
Linkage alarm/protection with PLC/DCS/automation systems - By integrating the output of the leakage detection module with the PLC/DCS alarm/interlock system, the levels of monitoring, protection and automation can be enhanced.
|
