HONEYWELL 51196655-100 dual-node power module

PLC Autocontroller |20 years of experience specializing in automation equipment

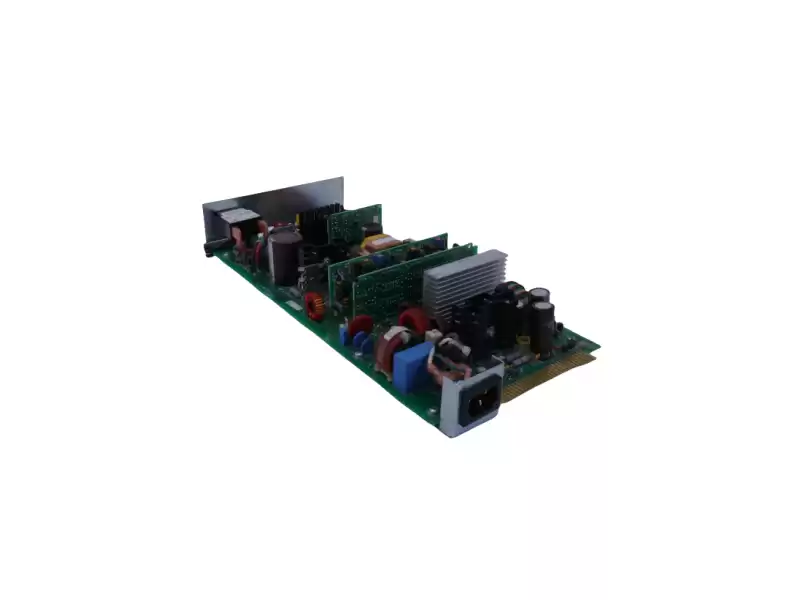

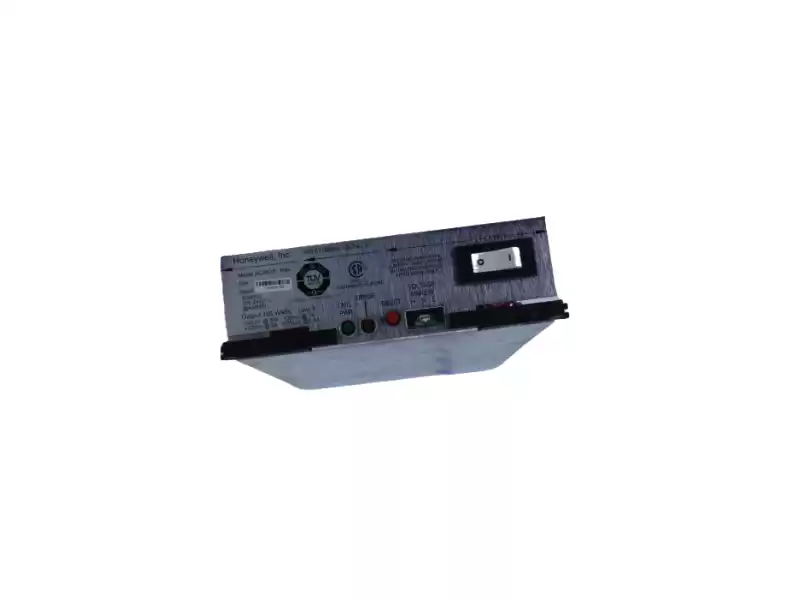

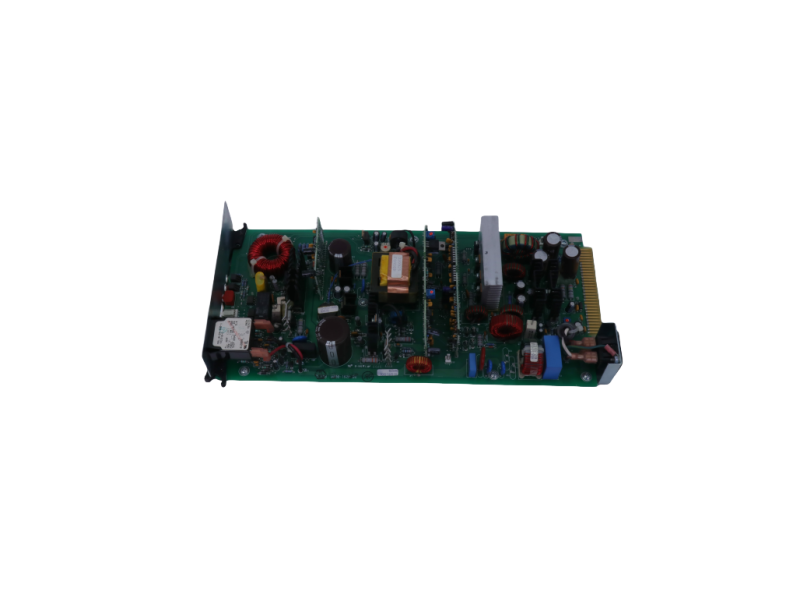

51196655-100 | dual-node power module

PLC Autocontroller| Sales Manager May

Product Overview

Honeywell 51196655-100 is a dual-node power module specifically designed for the TDC 3000 distributed control system (DCS). This module provides redundant power supply capabilities for the system and can support two control nodes simultaneously, enhancing the reliability of the overall system. Its output is stable, the design is industrial-grade, and it is convenient for hot-swapping (hot-swap), making it suitable for control systems running critical tasks.

Key parameters and specifications

Ø Model (PN) 51196655-100

Ø Module type: Dual-Node Power Supply Module

Ø Applicable system Honeywell TDC 3000 DCS

Ø Input current ~4 A

Ø The total output power is 165 W

Ø Output voltage multi-channel DC: 5 V, 12 V, 27 V

Ø Output current: 5  V@ ~20 A, 12  V@ ~3 A, 27  V@ ~1 A plus an additional 0.6 A

Ø node support supports two nodes (dual-node)

Ø There is isolation between the isolation/safety node and the power supply (some datasheet mentions 1500V).

Ø The installation form is usually used in racks/control cabinets and is hot-swappable.

Module advantages and comparisons

v High-reliability redundant design

Dual-node power supply means that even if one node malfunctions, the other node can still continuously supply power, reducing the risk of system interruption due to power failure.

v Hot-Swap

The power module can be replaced while the system is running without shutting down, thereby enhancing the maintainability and operation and maintenance efficiency of the system.

v Wide input voltage range

Supports 120/240 VAC, adapting to different power environments around the world.

v Multi-channel DC output

It simultaneously provides 5 V, 12 V and 27 V outputs, which can meet the voltage requirements of different system modules (such as CPU, I/O, communication modules, etc.).

v Industrial grade temperature range

The operating temperature range is from -40 °C to +85°C, making it suitable for harsh industrial field applications.

Order & ship

u Xiamen stock, 1 Year Warranty

u 100% Original Package

u UPS/ DHL/ FEDEX / TNT
