Product Identification
Model: 51309152-175 MC-PAOX03
Manufacturer:Honeywell
Type/Function: high-performance analog output (AO) module

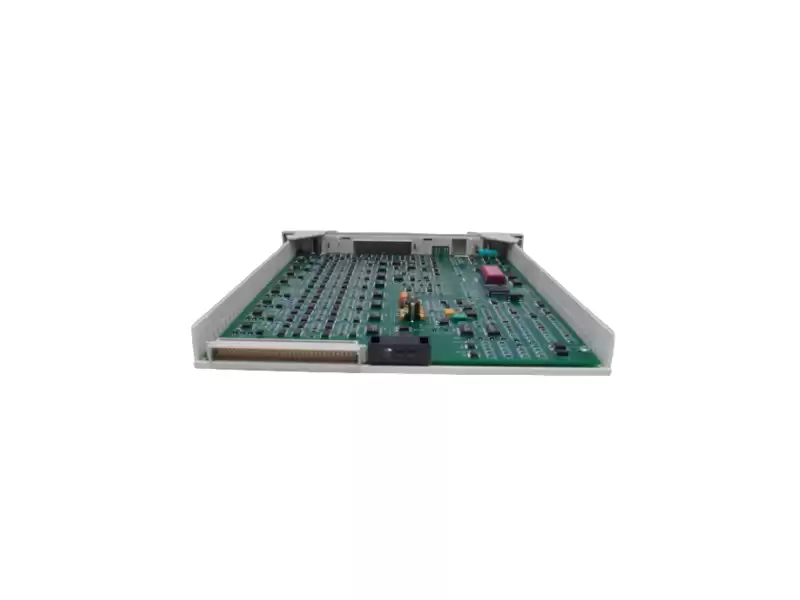

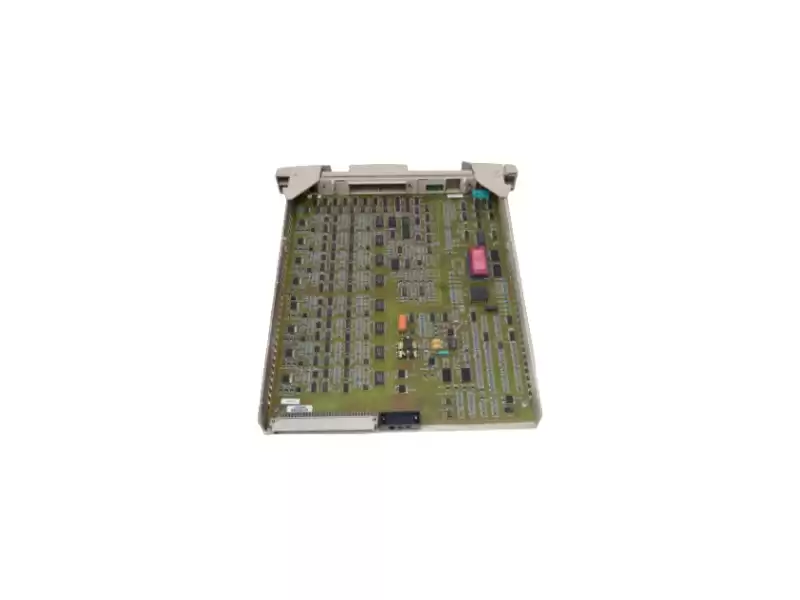

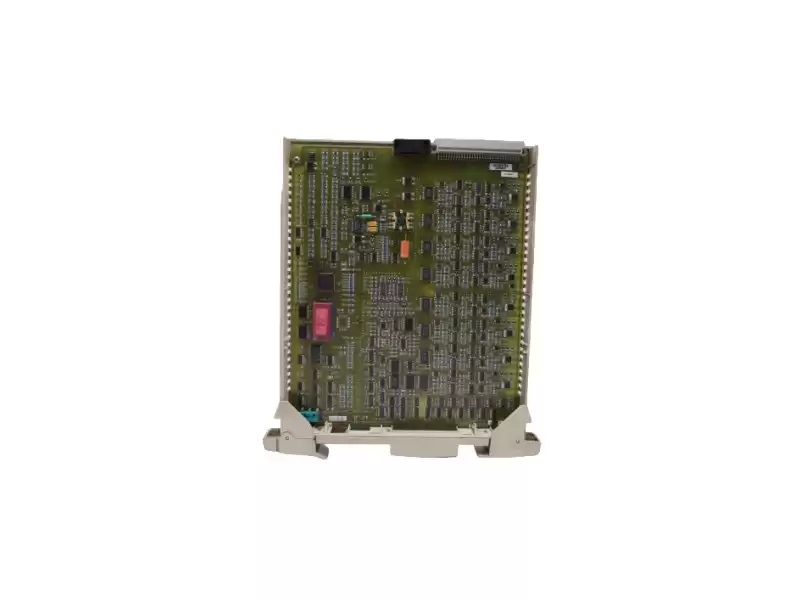

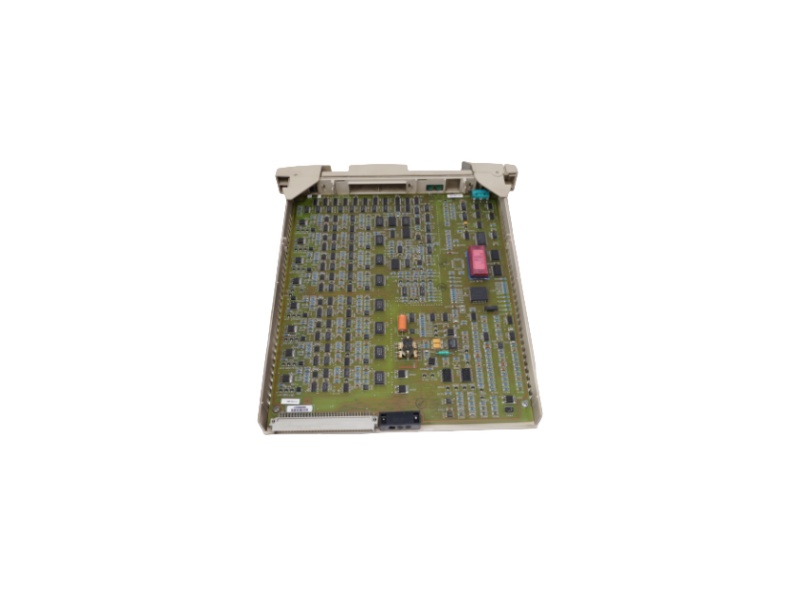

51309152-175 MC-PAOX03high-performance analog output (AO) module
Honeywell MC-PAOX03 (part number 51309152-175) is a high-performance analog output (AO) module in classic UCN/FTA systems. It is commonly used to drive 4-20mA output points (such as control valves and actuators) and is very important in critical process control.
Key Technical Specifications
Model/Part Number: MC-PAOX03 / 51309152-175
Number of Channels: 8-point analog outputs.
Output Type: 4–20mA
Accessible Output Range: 0.1 – 21.4mA
Maximum Output Current: 26mA
Maximum Load (Resistive): 750 Ω @ 22 mA
Resolution: ±0.05% full scale
Calibration Accuracy: ±0.35%
Output Ripple: 100 mV peak-to-peak
Redundancy Support: Supports redundancy; outputs are electrically isolated via replaceable relays.
Functional Advantages Analysis
Ø High-Density and High-Precision Output: 8-channel analog output allows for centralized driving of multiple actuators (such as control valves), with very high resolution and accuracy (±0.05%, ±0.35%).
Ø Redundant Design: Supports output redundancy; internal relay isolation enhances system reliability.
Ø Strong Environmental Resistance: Utilizes Conformal Coating, suitable for humid or corrosive industrial environments.
Ø Stable Response: Excellent output ripple control (100mV p-p) ensures stable operation of downstream equipment.
Ø Universal Compatibility: As a classic IOP (I/O Processor) in the UCN (Universal Control Network) architecture, it is compatible with various FTA (Field Terminal Assembly) structures.
