u Product Overview

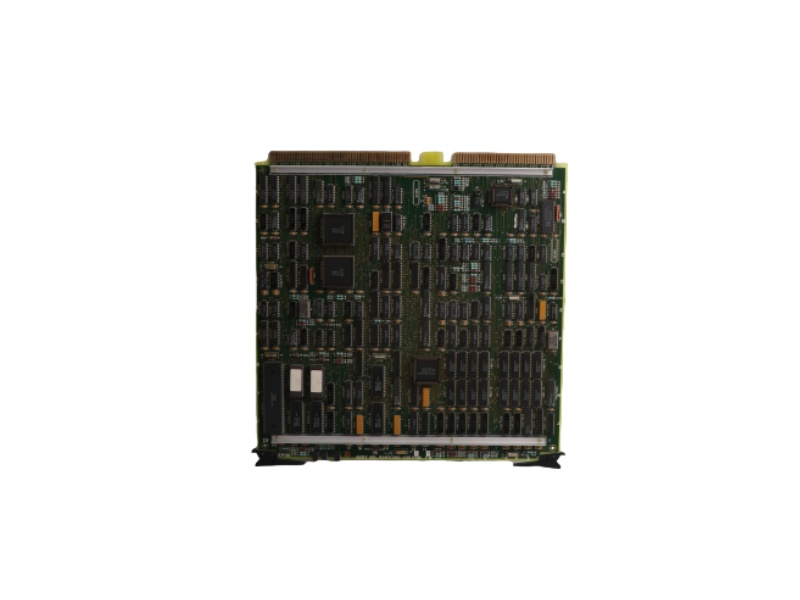

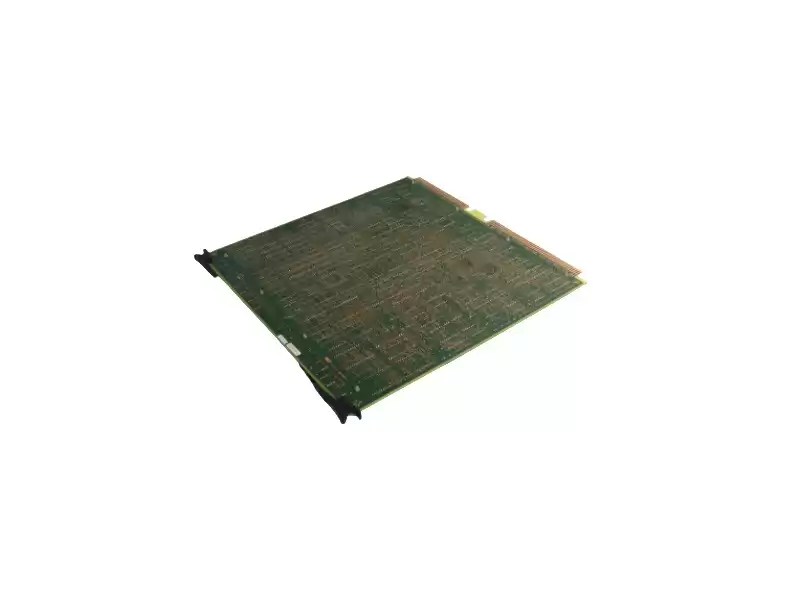

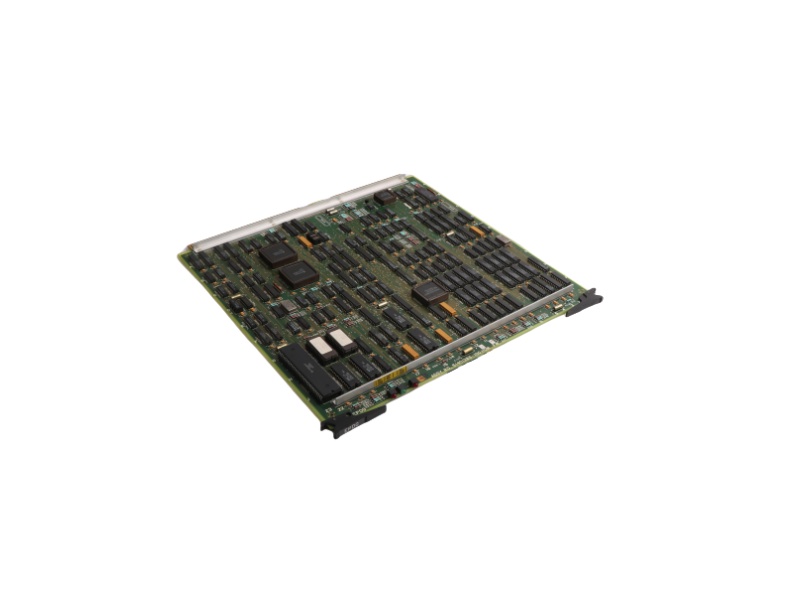

Model: 51401286-100
Type: Enhanced Peripheral Display Generator (EPDG) Card/Interface Board (PC Board)
System Compatibility: Primarily used in the Honeywell TDC3000 system as a Universal Station node, providing graphical/interface control for displays, keyboards, and printers.
Origin: USA
Spec-Snapshot Table
|
Attribute
|
Field Value
|
|
Functionality:
|
Generates graphics; manages SCSI-based controllers.
|
|
Interface/Communication:
|
SCSI control for communication with Bernoulli disks (or similar storage), keyboard, mouse (cursor), and printer.
|
|
Materials/Grade:
|
Manufactured on a 94V-0 flame-retardant PCB (compliant with industrial safety standards).
|
|
Operating Environment:
|
Suitable for industrial environments (compatible with Honeywell classic DCS racks).
|
Key Features and Value Highlights
Graphics Capability
As an EPDG card (Enhanced Peripheral Display Generator), the 51401286-100 provides graphics output capabilities for Universal Station nodes.
It can manage communication with SCSI storage (e.g., Bernoulli disks), keyboards, mice, and printers, enriching the Human User Interface (HMI).
Hot-Swap/Modular Maintenance
Although a core interface board (PC Board), it is designed for field-replaceability, allowing for spare parts replacement when maintaining older systems (such as the TDC 3000).
Reliability and Safety
Using a 94V-0 compliant (flame-retardant) PCB board enhances the safety of electronic components.
Manufacturing Quality Meets Honeywell's High Standards (Original or Certified) — Genuine/Reliable Spare Parts Available from Multiple Suppliers
Application Scenarios
TDC3000 Control System: Used in the Universal Station node of the classic TDC 3000 system, providing a graphical interface and peripheral device (keyboard/printer) support.
Legacy/Ancient System Maintenance: This module is a critical spare part for control systems that are still in operation but have been discontinued by the manufacturer.
System Upgrade/Replacement Strategy: Replacing the EPDG card can restore or improve user interface functionality without completely replacing the control system.
Spare Parts Inventory Management: It is recommended that control system manufacturers and maintenance teams keep this card as a critical spare part to address potential future failures.
