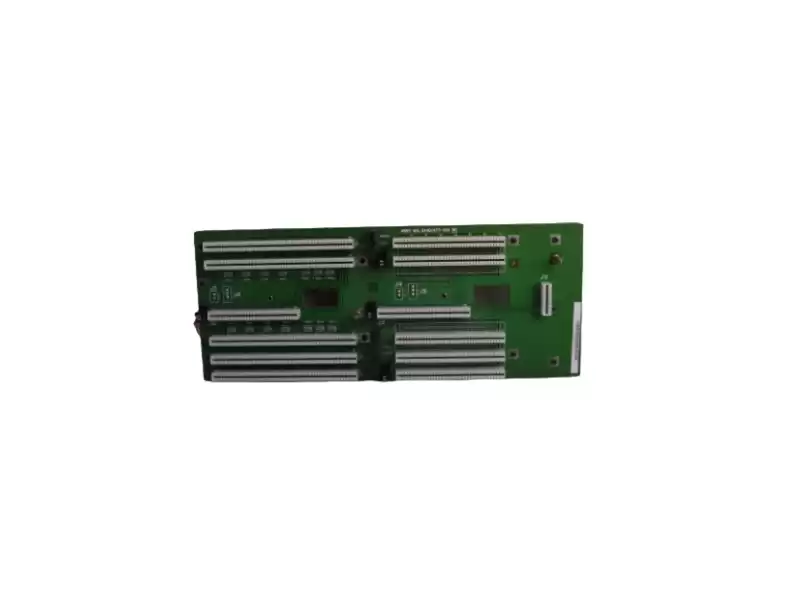

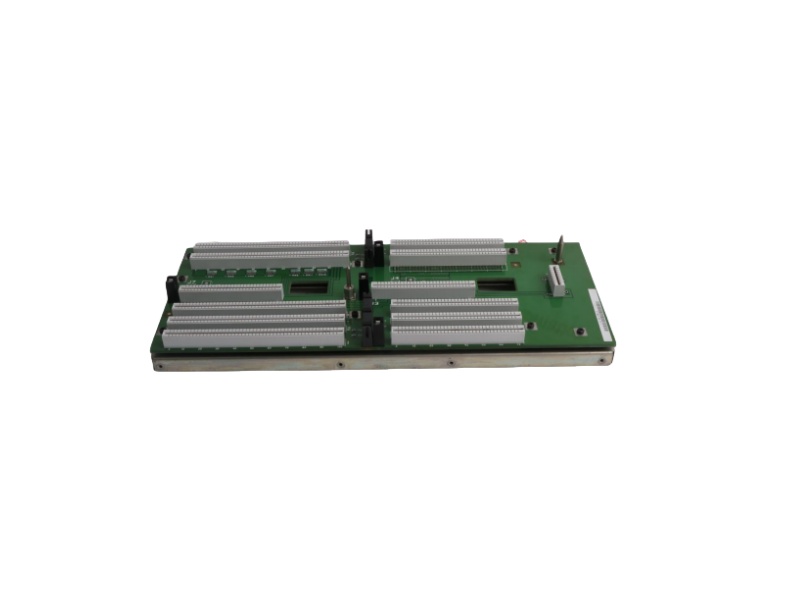

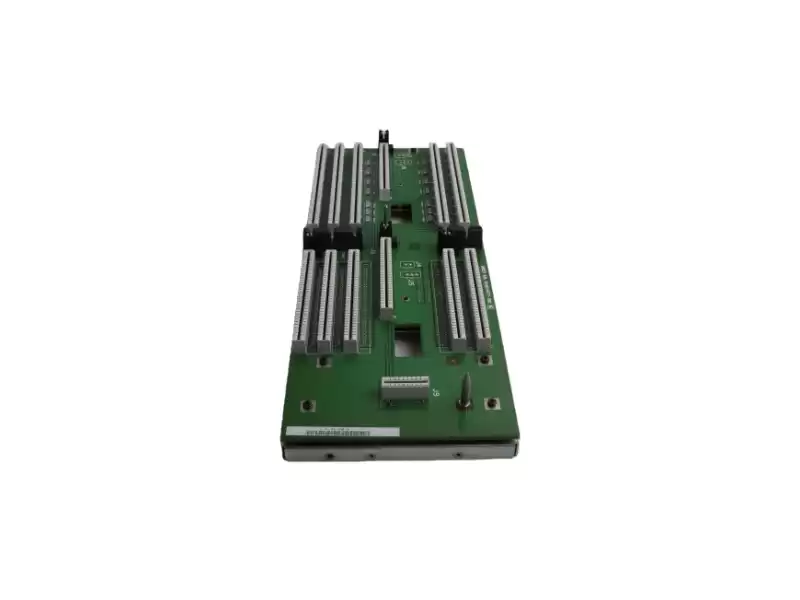

HONEYWELL 51401477-100 Classic Backpanel

PLC Autocontroller |20 years of experience specializing in automation equipment

51401477-100|Classic Backpanel

PLC Autocontroller | Sales Manager May| Wechat id: dcsfcs

Overview

The Honeywell 51401477-100 (Classic Backpanel) is one of the core structural components of the Honeywell dual-node system, used to support modules, stabilize connections,

 and help the system maintain high reliability.

Model: 51401477-100

Type: Classic Backplane/Dual-Node Backplane Assembly Honeywell 51401477-100 Backplane

System Compatibility: Suitable for Honeywell dual-node modules, such as classic rack-mount designs.

Core Specifications

Operating Voltage: 120 VAC

Power Consumption/Load Capacity: 10A Load / Approx. 500 W

Communication Interface: Supports RS-485 and Ethernet

Protection Rating (IP): IP20

Material: Aluminum alloy, robust and suitable for industrial environments

Dimensions: 431 × 172 × 60 mm

Country of Origin: USA

Features and Value

Ø Structural Support:

The 51401477-100 backplane is one of the fundamental structural components of the dual-node rack. Its design supports multiple modules (such as Universal Stations, I/O cards, etc.), providing a stable and reliable physical platform for the system.

Ø Power and Load Management:

Capable of handling high current (10A), supporting high-power modules while maintaining its own power management capabilities, ensuring stable power supply to the entire node.

Ø Communication Compatibility:

Supports RS-485 and Ethernet communication, providing flexible data exchange capabilities for node modules, suitable for various control system topologies.

Ø Industrial Design:

Constructed of aluminum alloy with an IP20 protection rating, it withstands dust and temperature variations that may occur in industrial environments, and installation and maintenance are relatively simple.

Other models of the same brand

All products are brand new and original,with a 12-month warranty.
