621-2100R | output module
PLC Autocontroller | Sales Manager May | Wechat id: dcsfcs
monitoring and control module

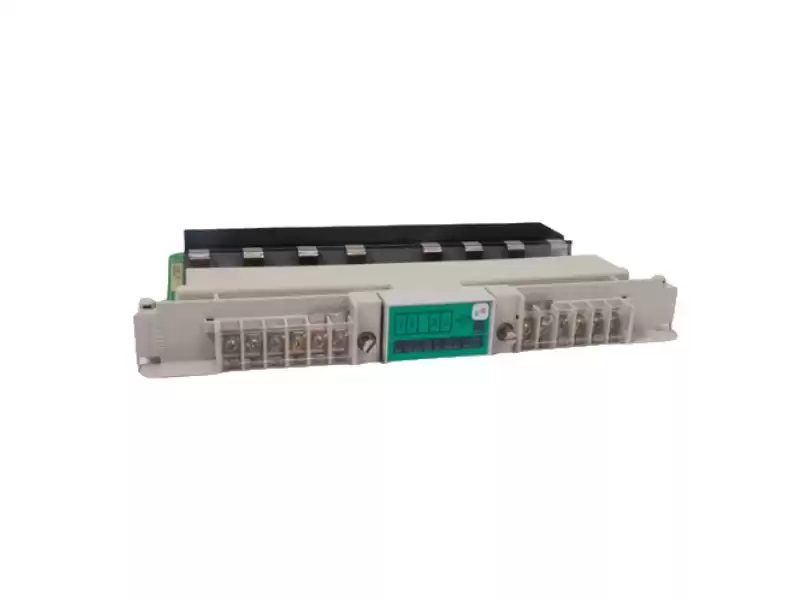

The 621-2100R is an output module from Honeywell designed for field digital output tasks in its I/O rack-mode control systems. According to the documentation, this module features 115VAC output, an 8-channel configuration, and is specifically designed for driving actuators such as relays and solenoid valves in industrial fields.
Key Technical Specifications
Ø Model: 621-2100R
Ø Module Type: Output Module – Digital Output Module
Ø Number of Output Channels: 8-channel output
Ø Output Voltage: Nominal 115VAC
Ø Output Voltage Range: 90–140VAC
Ø Maximum Current: 2A per channel; 6A per common bus; 8A total per module
Ø Surge Current: 15A for 2 cycles
Ø Rack Hot-Swapping Support: Supports hot-swapping of modules with the "R" suffix, meaning they can be plugged in and out while the rack is powered on.
Compatible modules and accessories
|
For optimal system performance and ease of maintenance, the following modules/accessories are recommended:
|
|
Digital Input Modules/Analog Input Modules: To complement the signal input-output structure of the output modules in the system.
|
|
I/O Racks/Backplanes: This output module must be installed in a rack compatible with the Honeywell I/O architecture.
|
|
Controllers/Logic Manager Modules: As the core of the system, responsible for transmitting logic signals to this output module.
|
