8C-PAON01 51454357-175 | analog output module
PLC Autocontroller | Sales Manager May| Wechat id: dcsfcs
Overview

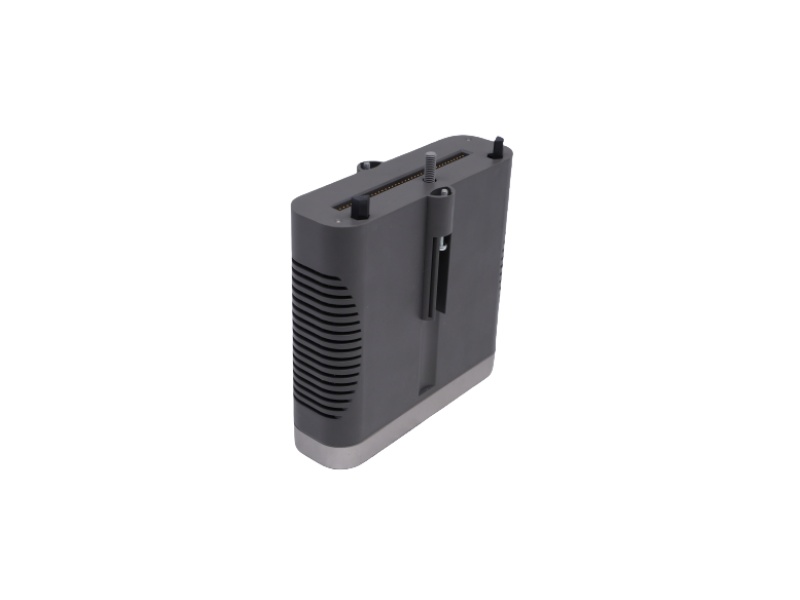

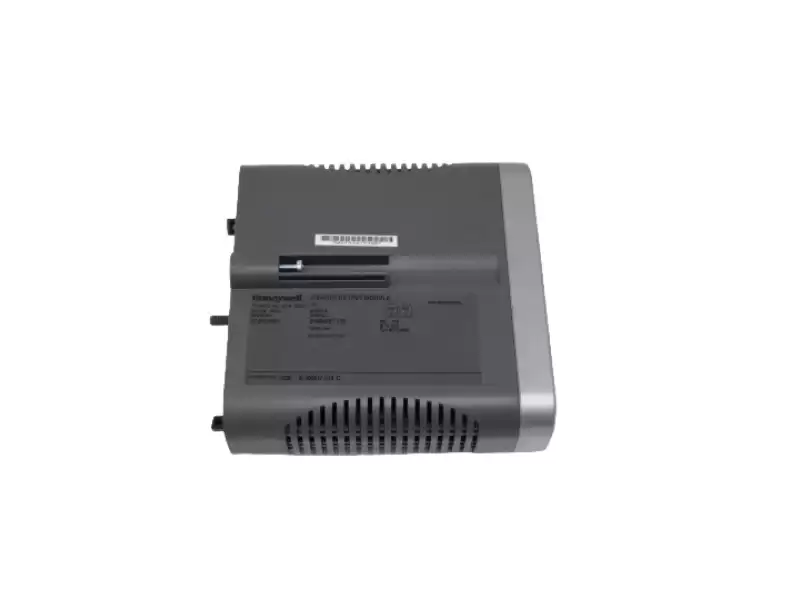

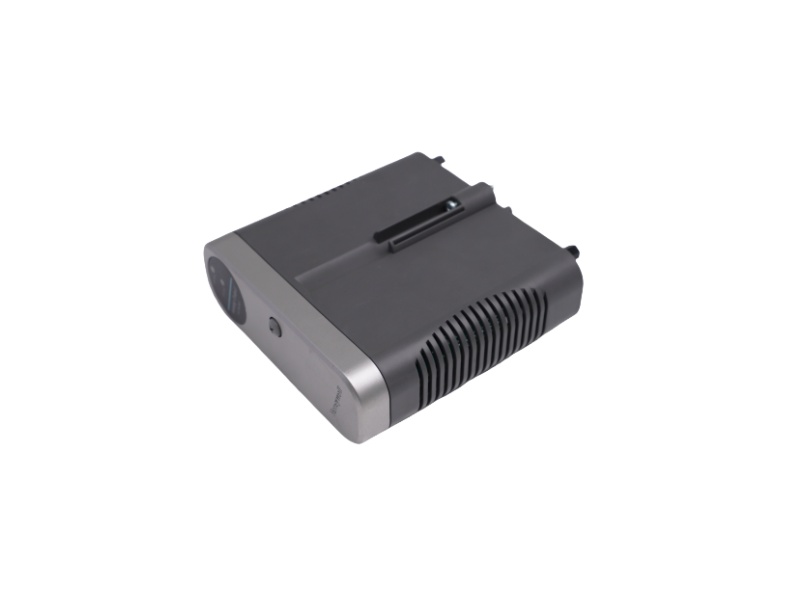

Model 8C-PAON01, order number 51454357-175, is an analog output module in Honeywell's Series-8 I/O module family. Designed for industrial process control systems, this module supports multi-channel 4-20 mA outputs and features self-diagnostics, redundancy support, and open-circuit detection. It is suitable for Honeywell DCS/C300/Experion platforms.
Core Specifications
|
Electrical
|
Value
|
|
Module Type:
|
Analog Output Module
|
|
Output Signal Type:
|
4-20 mA
|
|
Number of Channels:
|
16
|
|
Resolution:
|
±0.05% of full scale
|
|
Calibration Accuracy:
|
±0.35% of full scale (25 °C)
|
|
Response Time:
|
< 80 ms (stabilizes within 1% of the final value)
Maximum Open Circuit Voltage: 22 V
|
|
Features:
|
Supports redundancy, open-circuit detection, and single-channel safety setting (FAILOPT).
|
Product Advantages
High-precision analog output: 16 channels, ±0.05% resolution, fast response, suitable for precise control of field devices such as actuators/control valves.
Strong self-diagnostic capabilities: Supports channel open-circuit detection, per-channel safety state setting (FAILOPT), and redundant configuration, enhancing system reliability.
Strong system compatibility: Based on the Honeywell Series-8 architecture, it is easy to integrate with or upgrade existing DCS systems.
Reduced operation and maintenance costs: Modular design, standardized interfaces, and unified spare parts management reduce downtime and maintenance complexity.
Long-term service support: Combining 20 years of industry experience with PLC Autocontroller, we provide comprehensive support from selection, supply, installation, commissioning, and after-sales service.
