About 8C-PDILA1 51454471-175

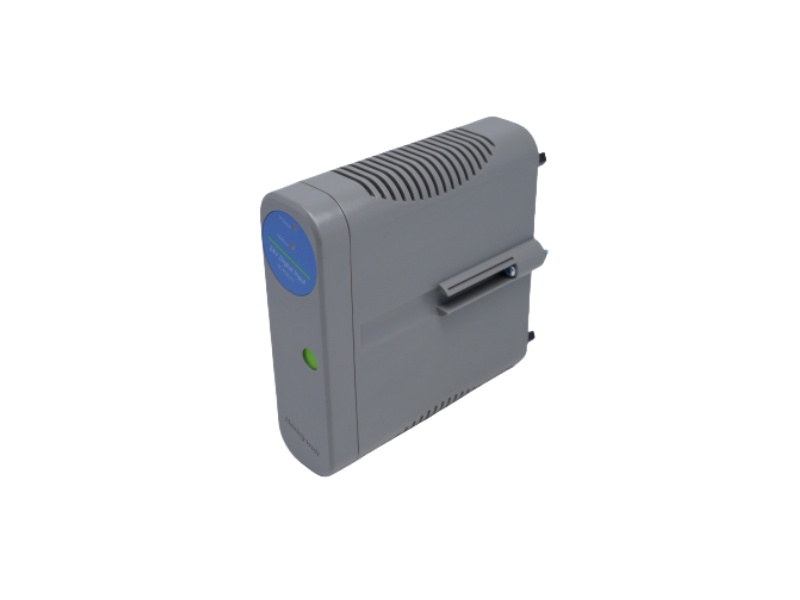

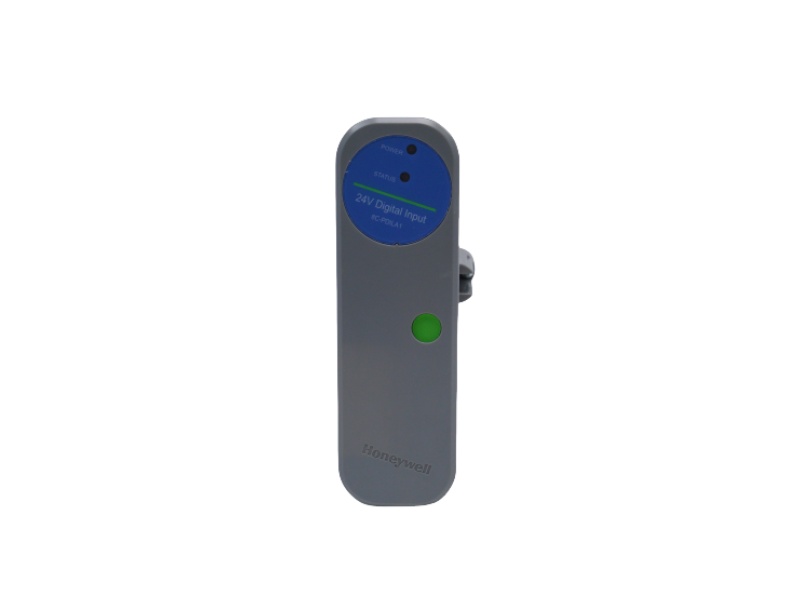

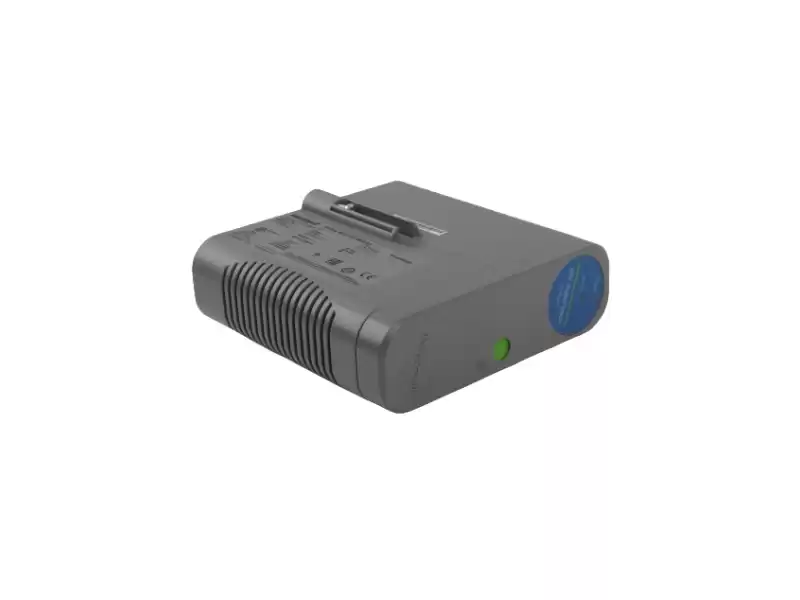

Model 8C-PDILA1, order number 51454471-175, is a digital input module (24 V DC) in Honeywell's Series 8 I/O series. This module is designed for industrial process control systems, enabling highly reliable acquisition of discrete field signals such as switch signals, sensor status, and contact signals. According to the specifications, this module has 16 input channels, a 24 V DC input voltage rating, and is suitable for control platforms such as Honeywell C300 / Experion PKS.
Key Specifications
|
Electrical
|
Value
|
|
Module Type:
|
Digital Input Module
|
|
Order Number:
|
51454471-175
|
|
Number of Channels:
|
16 input channels
|
|
Input Voltage:
|
24 V DC
|
|
Isolation Specification:
|
Channel-to-channel isolation approx. 500 Vrms / Channel-to-ground isolation approx. 500 Vrms
|
|
Operating Environment:
|
–40 °C to +70 °C
|
Product Advantages
|
High-Reliability Discrete Signal Acquisition: Supports 16-channel input, suitable for acquiring large amounts of switching and status signals.
|
|
Industrial-Grade Design: 24V DC input, isolated design, adaptable to harsh environments, and possesses excellent anti-interference capabilities.
|
|
Strong System-Level Compatibility: Based on the Honeywell Series 8 architecture, facilitating integration with existing systems or future expansion.
|
|
Easy Maintenance: Modular design, standard dimensions, and convenient spare parts replacement, minimizing downtime.
|
|
Comprehensive Service Support: Leveraging 20 years of experience from PLC Autocontroller, providing integrated services from selection, delivery, installation, and after-sales support.
|
Application Areas
Ø Monitoring of switch/status inputs (e.g., pump start/stop, valve position, contact status) in petrochemical and chemical plants.
Ø Expansion or replacement of digital input modules in power plant, energy system, and infrastructure automation systems.
Ø Scenarios with numerous switch/status inputs and alarm inputs in manufacturing automation systems.
Ø Control system upgrades or lifecycle management: This module is an ideal choice for the digital input section of Honeywell systems.
All items are factory-new, sealed, and supported by PLC Autocontroller with same-day quotation and worldwide overnight delivery.
