Product Identification

Model: 8C-PDODA1 51454472-175

Manufacturer:Honeywell

Type/Function: I/O module

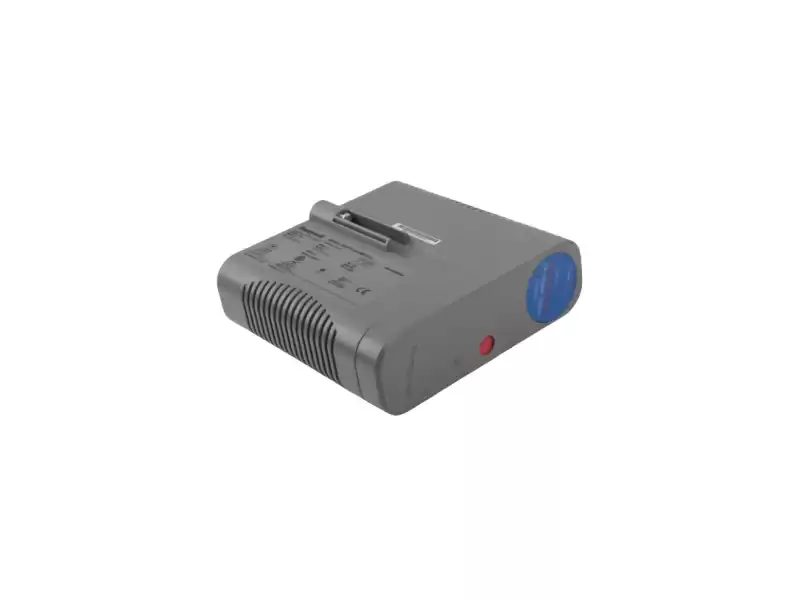

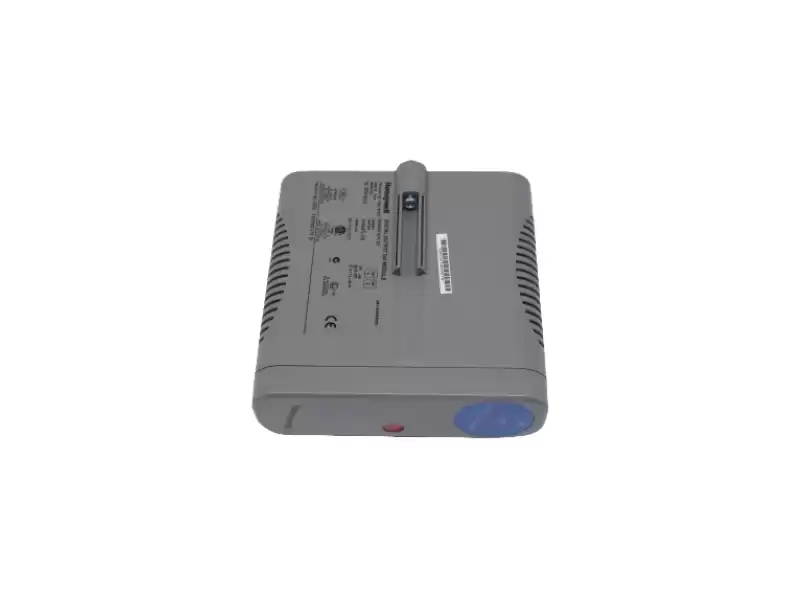

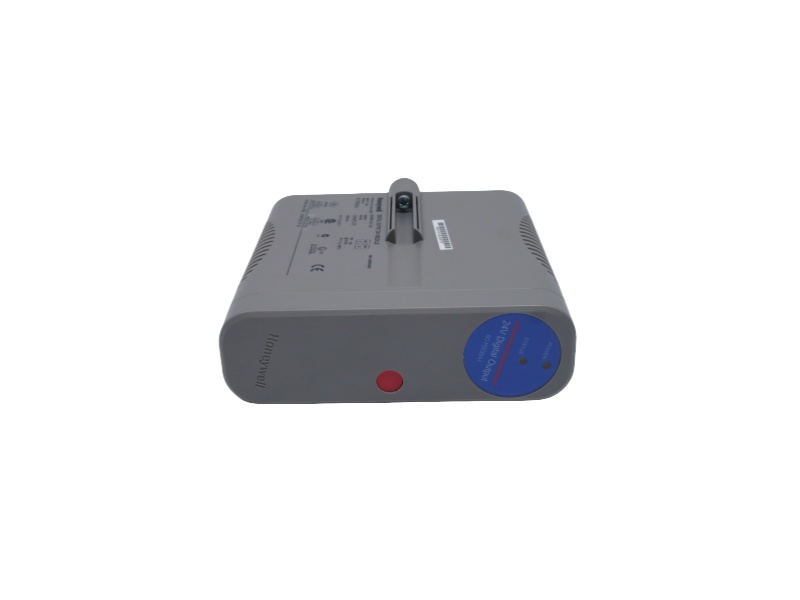

8C-PDODA1 51454472-175I/O module

The 8C-PDODA1 digital output module (order number 51354472-175) belongs to Honeywell's 8 Series I/O module family. Designed specifically for industrial process control systems, this module provides reliable discrete signal outputs for controlling field devices such as actuators, relays, and valves. It features field isolation, bus outputs, an industrial-grade design, and is compatible with the Honeywell ExperionPKS/C300 control platform.

Key Technical Specifications

Ø Module Type: Digital Output Module (Digital Output 24VDC)

Ø Number of Channels: 32 channels (bussed 24VDC output)

Ø Output Voltage: 24VDC

Ø Maximum Load Current per Channel: 100mA/channel, Total Module Current: 3.2A max

Ø Module Current Consumption: 105mA (Module Self-Containment)

Ø Isolation: System-Field Isolation: 1000VAC RMS or ±1500VDC

Ø Switching Time (ON/OFF): ≤10ms (Max)

Ø Operating Ambient Temperature: 0°C to +60°C

Application Areas

Ø Switching control of numerous relays, valves, and actuators in petrochemical and chemical plants.

Ø Digital output expansion modules in power/power plant control systems.

Ø Machine control and equipment action signal output in manufacturing automation systems.

Ø Distributed control system (DCS) upgrades or spare parts replacement projects: a preferred choice for digital output modules in Honeywell series systems.

More options

Power Module: TSXPSY2600 / TSXPSY5500: Provides 5V DC power

Input Module: TSXDEZ32D2K / TSXAEY1600: Digital and analog input

Output Module: TSXDSY16T2K / TSXASY4100: Digital and analog output

Communication Module: TSXETY4103 / TSXCPP110: Ethernet and communication expansion

Memory Card: TSXMRPC001M: Program and data storage expansion
