8C-TCNT01 8U-TCNT01 51307032-175 | I/O Termination Assembly
PLC Autocontroller | Sales Manager May | Wechat id: dcsfcs
monitoring and control module

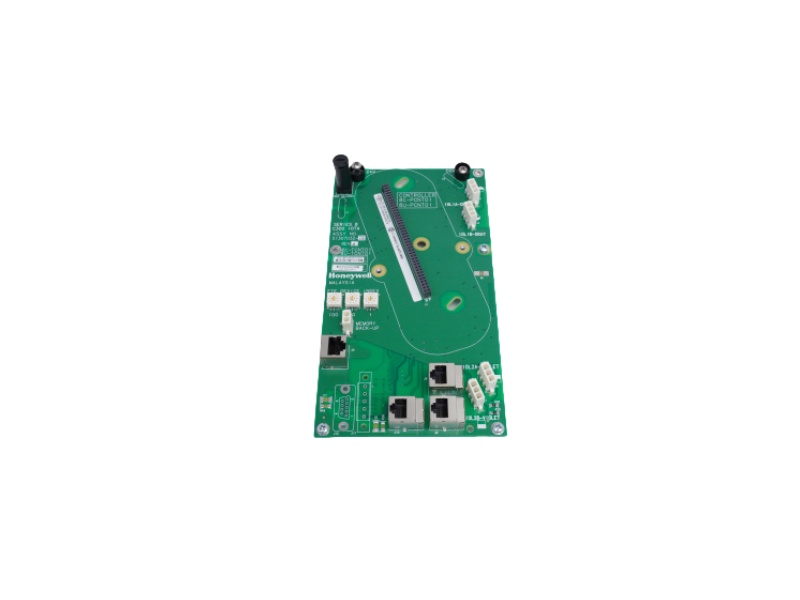

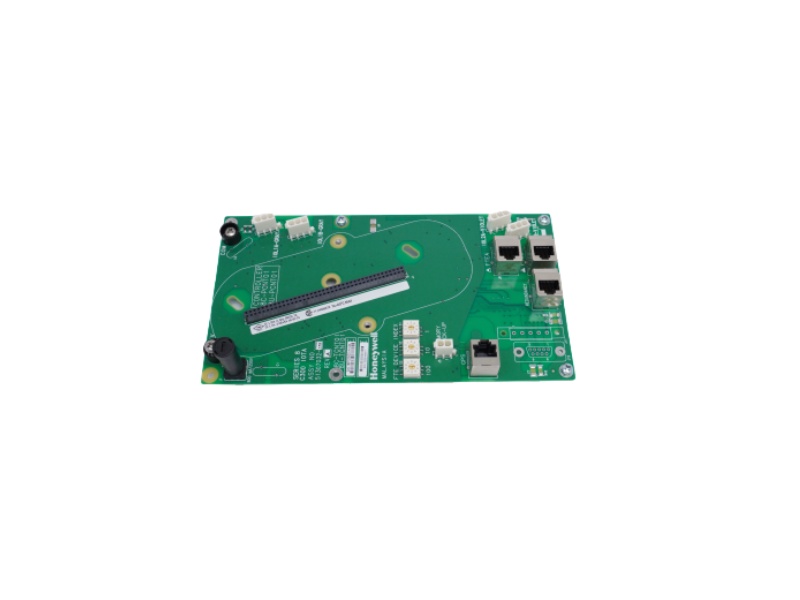

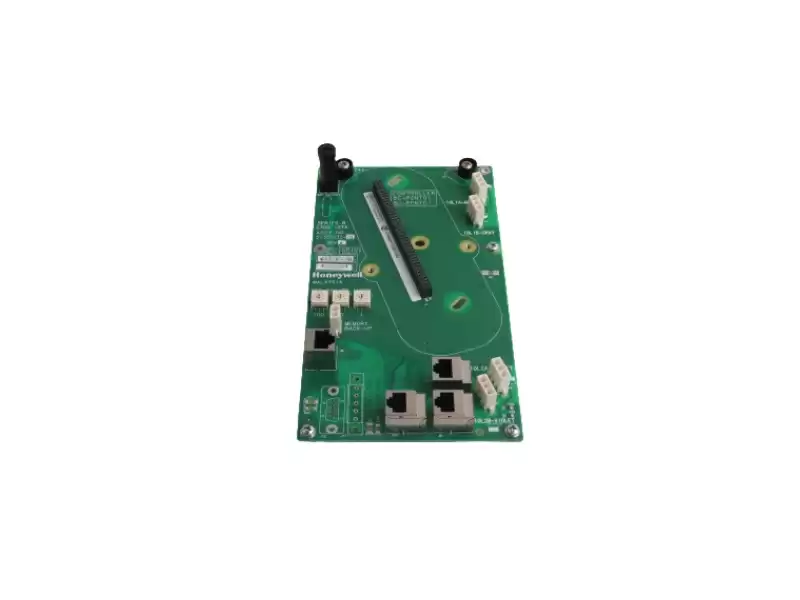

Model: 8C-TCNT01 / 8U-TCNT01 • Order No. 51307032-175 — This is one of the modules/termination assemblies (IOTA) for I/O terminal
connections in the Honeywell C300 controller family (such as the Experion C300 or SeriesC systems). This module provides interface terminal
board functionality between the controller and field devices (I/O links, FTE, redundancy, battery/time sources, etc.).
Key Technical Specifications
Model: 8C-TCNT01/8U-TCNT01
Order Number: 51307032-175
Function: I/O Termination Assembly (IOTA) for C300 controller
Applicable Systems: Honeywell C300/Series C controller platform
Power Supply/Distribution: 24VDC power distribution to the controller module
Channels/Type: Multi-channel, supports analog/discrete signal interfaces
Isolation/Voltage Withstand: ≥2500VAC isolation
Operating Temperature Range: –40°C to +85°C
Compatible modules and accessories
|
Controller Module:
|
Such as the Honeywell C300 controller itself, used to deploy the I/O architecture.
|
|
I/O Modules and IOTA Modules:
|
This terminal board works with input/output IOTA modules (analog input, digital input, output modules, etc.)..
|
|
Backplane and Rack:
|
This terminal board is mounted in the I/O rack and is responsible for centralized interface management and cabling aggregation.
|
|
24VDC Field Power/Distribution Bus:
|
Ensures stable power supply to the controller and I/O modules.
|
|
Terminal Blocks, Communication Interfaces/FTE (Fieldbus/IO-Link) Cables, Redundant Cabling System:
|
Constitutes the system's interface and communication structure.
|
