Overview

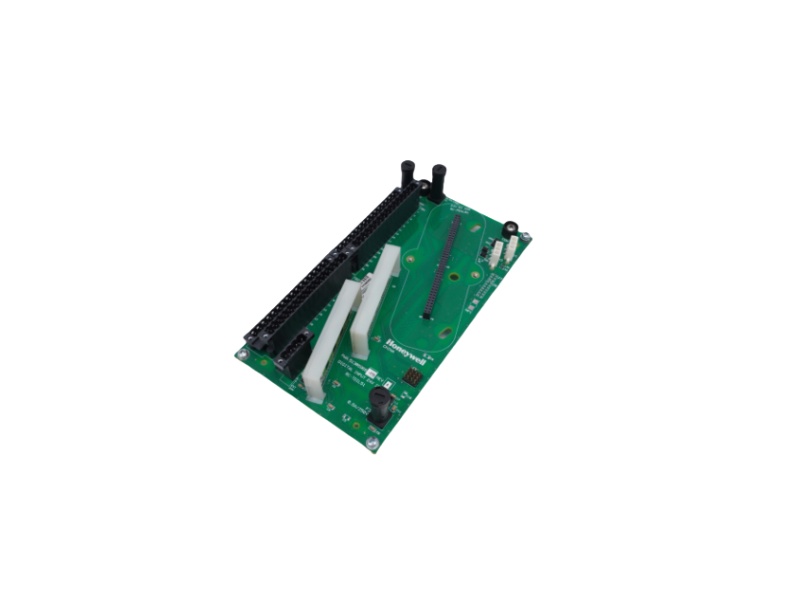

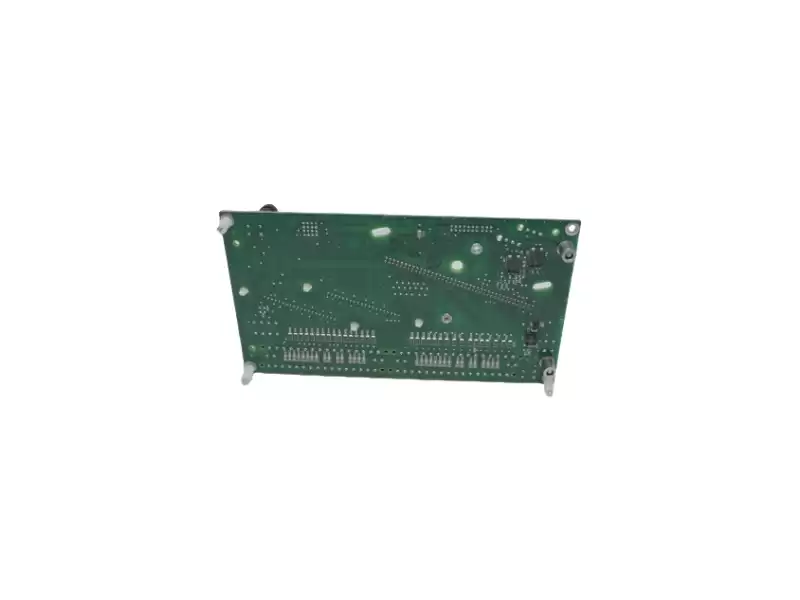

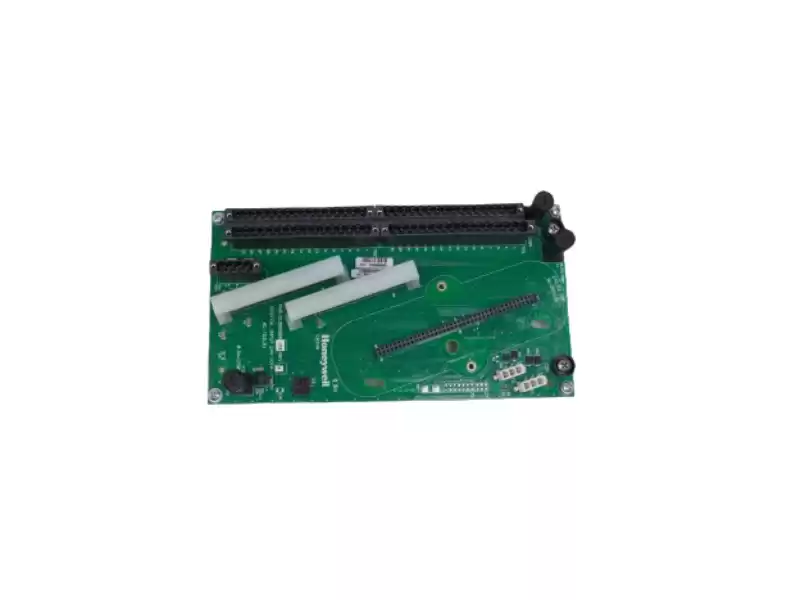

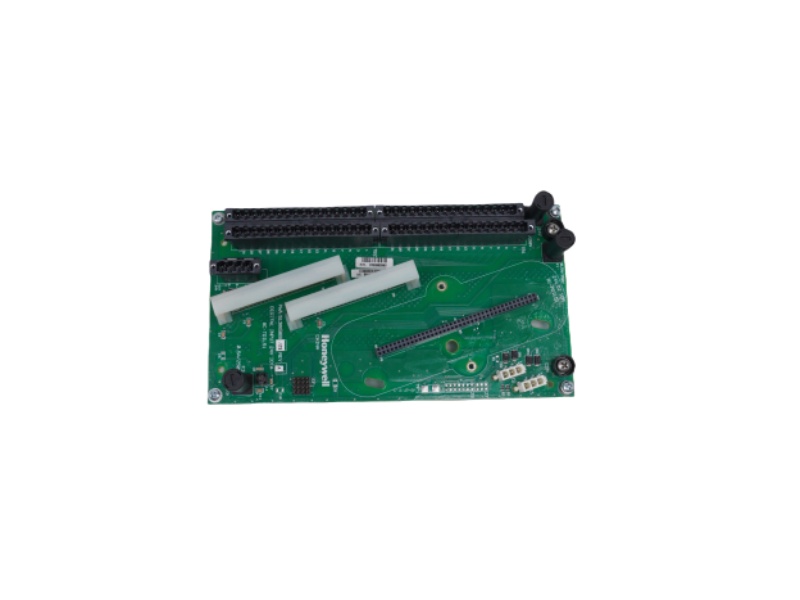

Model: 8C-TDIL51/Order No. 51306969-175 — Digital input I/O terminal assembly (IOTA) module for Honeywell Series8 I/O systems, designed to receive 24VDC discrete inputs and provide high-density digital signal acquisition. This module is designed for Honeywell Series8 architecture or compatible control systems (such as the C300 series) to convert field switch or status signals (24VDC) into digital inputs and transmit them to the control system.
Core Specifications
Ø Model: 8C-TDIL51
Ø Order Number: 51306969-175
Ø Input Voltage Type: 24VDC
Ø Number of Channels: 32 (Typical)
Ø Isolation Specification: System-to-Field Isolation ≥1000VAC RMS
Ø Response Time/Absolute Delay: ≈5ms (±20%), response delay caused by input filtering and isolation
Product Advantages
High Reliability Design: Supports a wide input voltage range (approximately 90-264 VAC or 120/240 VAC), adaptable to various power supply environments.
Designed for Industrial Control: Approximately 60 W output power meets the requirements of the HC900 control rack, with a compact size for easy installation.
Strong Surge Resistance: Peak surge current specifications (e.g., 40 A @ 240 VAC) indicate its ability to withstand startup or grid disturbances.
Globally Compatible Installation: Screw terminals support #12-22 AWG wiring for easy field wiring and maintenance.
Brand Guarantee: As a Honeywell ControlEdge series accessory, it is suitable for high-reliability applications in petrochemical, chemical, and energy industries.
