8C-TDILA1 51307141-175|digital input module

PLC Autocontroller | Sales Manager May | Wechat id: dcsfcs

Product Identification

Model: 8C-TDILA1 51307141-175

Manufacturer:Honeywell

Type/Function: digital input module

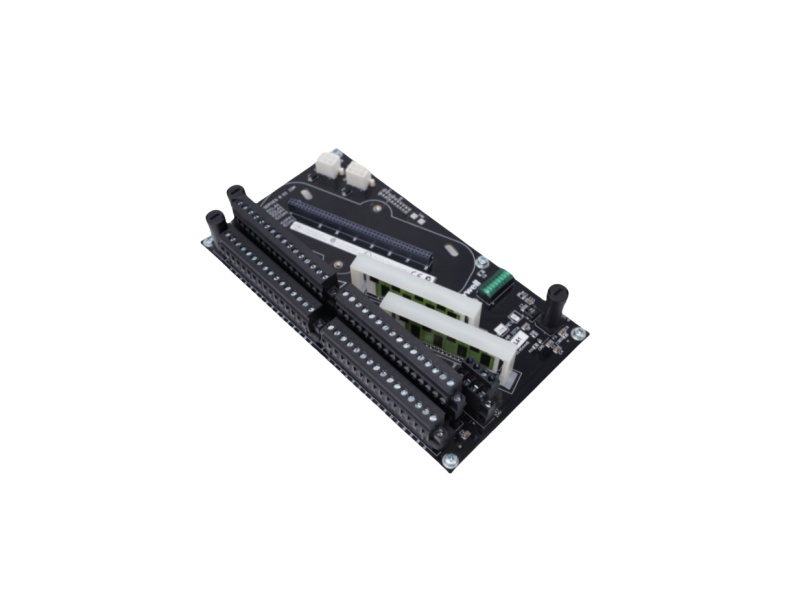

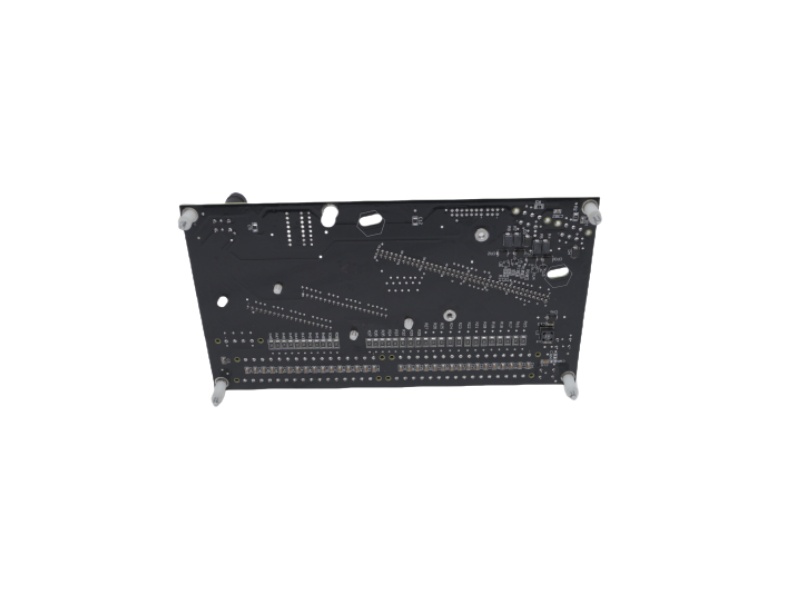

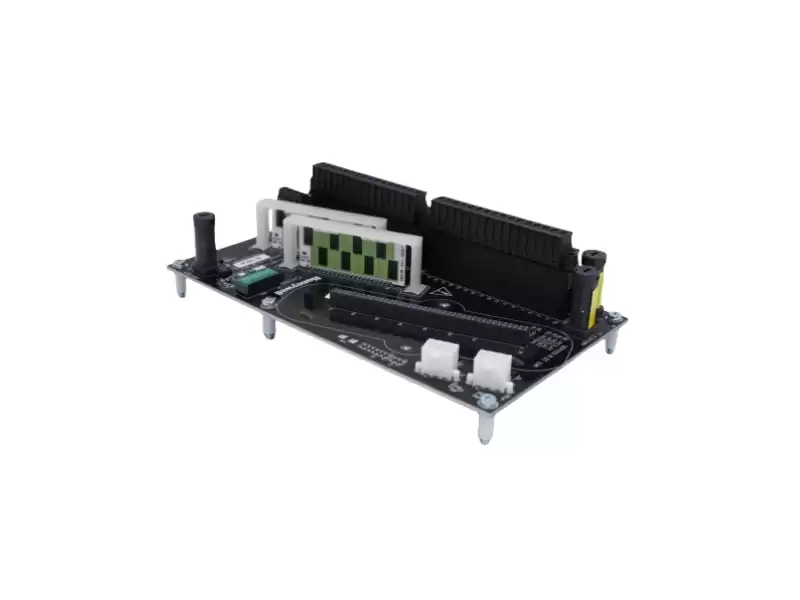

8C-TDILA1 51307141-175 digital input module

Model: 8C-TDILA1 / Order No. 51307141-175 — Digital input module (pulse accumulation type)

for Honeywell Series8 I/O systems, accepting 24VDC discrete inputs and supporting high-speed pulse counting

 on selected channels. This module belongs to the Honeywell Series8 architecture and is specifically designed

to acquire field digital signals (including switching signals and pulse counting) and send them to the control system.

Key Technical Specifications

Ø Model 8C-TDILA1

Ø Order Number 51307141-175

Ø Input Voltage 24VDC Module provides 24V DC input

Ø Number of Channels 32 channels (channels 1-16 support pulse count) Supports 32 input points, the first 16 channels can be used for pulse accumulation

Ø Resolution or Response Rate 12 bits / 1ms (pulse accumulation support)

Ø Operating Temperature Range -40°C to +70°C O

Ø Isolation Specification System-to-field isolation (requires external power supply at the field end)

Application Areas

Petrochemical/Chemical Process Control Systems: Field switching signals, encoder pulses, equipment status counting.

Manufacturing Automation and Assembly Lines: Speed/position detection, counters, machine status monitoring.

Smart Buildings/Infrastructure: Monitoring access control, rotating equipment, fan status, fault counting.

System Expansion or Upgrade Projects: When the input channels or counting functions of the existing control system are insufficient.

More options

Power Module: TSXPSY2600 / TSXPSY5500: Provides 5V DC power

Input Module: TSXDEZ32D2K / TSXAEY1600: Digital and analog input

Output Module: TSXDSY16T2K / TSXASY4100: Digital and analog output

Communication Module: TSXETY4103 / TSXCPP110: Ethernet and communication expansion

Memory Card: TSXMRPC001M: Program and data storage expansion
