900G03-0102| digital input module

PLC Autocontroller | Sales Manager May | Wechat id: dcsfcs

Product Identification

Model: 900G03-0102

Manufacturer:Honeywell

Type/Function: digital input module

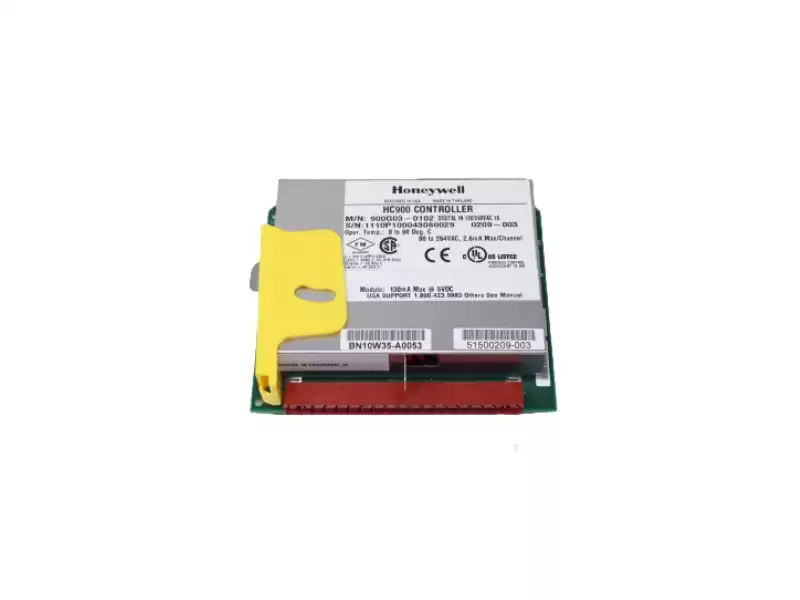

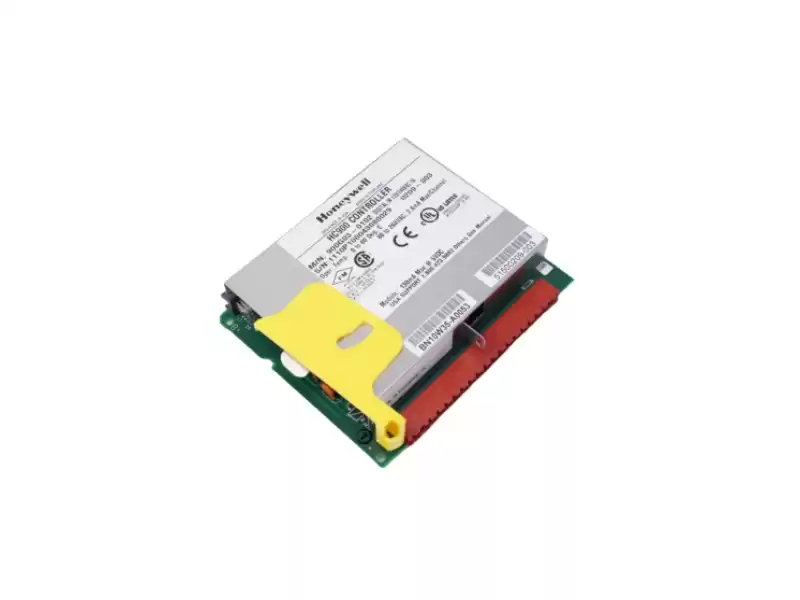

900G03-0102 digital input module

Model: 900G03-0102 — An AC digital input module for Honeywell ControlEdge HC900 (or compatible) systems,

designed to handle 16 digital input channels from 80 VAC to 264 VAC for reliable field signal acquisition.

Key Technical Specifications

Ø Model No. 900G03-0102

Ø Number of Input Channels: 16 channels (16-point digital input)

Ø Input Voltage Range: 80 VAC – 264 VAC

Ø Peak Voltage: 264 VAC (Peak Input Specification)

Ø AC Frequency: 47 Hz – 63 Hz (Corresponding AC Application Frequency Range)

Ø Isolation Specification: 2 groups of 8 inputs (galvanic) (350 VAC max) (Channel group isolation design)

Ø Input Impedance: ~48 kΩ (nominal) (Input Impedance Specification)

Ø Minimum ON Current: 0.3 mA (Minimum Turn-On Current)

Ø Maximum OFF Current: 0.2 mA (Maximum Leakage Current in Off State)

Ø OFF→ON Response Time: 4 ms + 1.5 line cycles max (Response Time Specification)

Ø ON→OFF Response Time: 4 ms + 2 line cycles max (Response Time Specification)

Application Areas

Chemical/Petrochemical Industry Automation Systems: Monitors on-site switching quantities or AC voltage status, suitable for high-reliability scenarios.

Manufacturing Automation Control and Data Acquisition Systems: Can be used for machine switching, alarm signals, and AC power status input.

Building Automation and Infrastructure Systems: Such as power monitoring, AC signal input, and equipment fault monitoring.

Control System I/O Expansion Applications: Used to expand AC input capabilities when the main controller input resources are insufficient.
