What it is

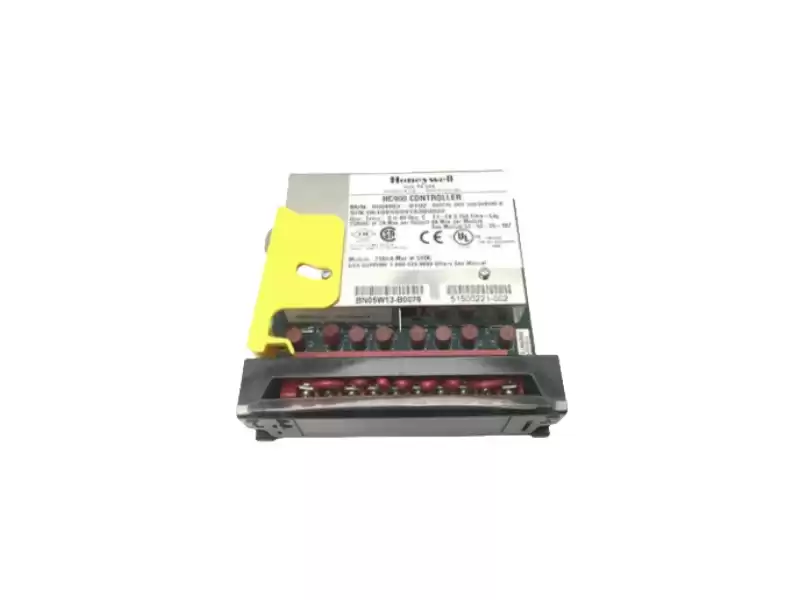

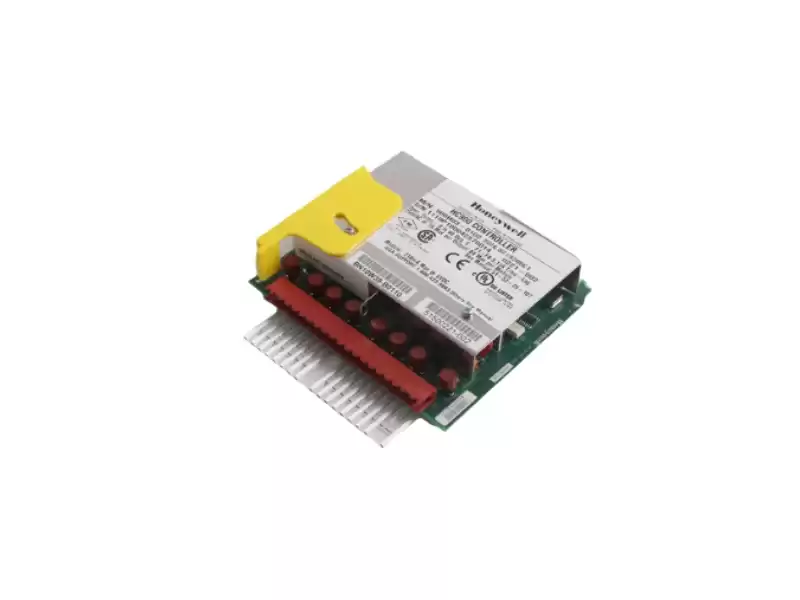

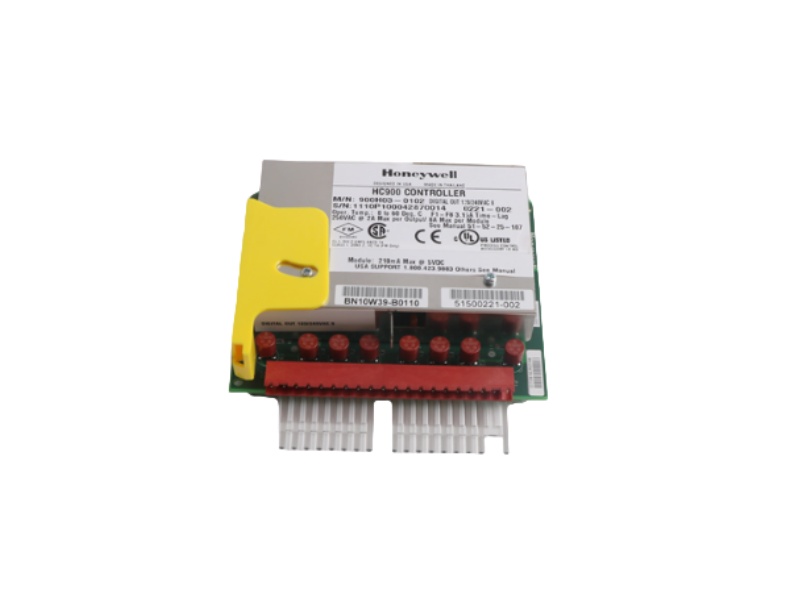

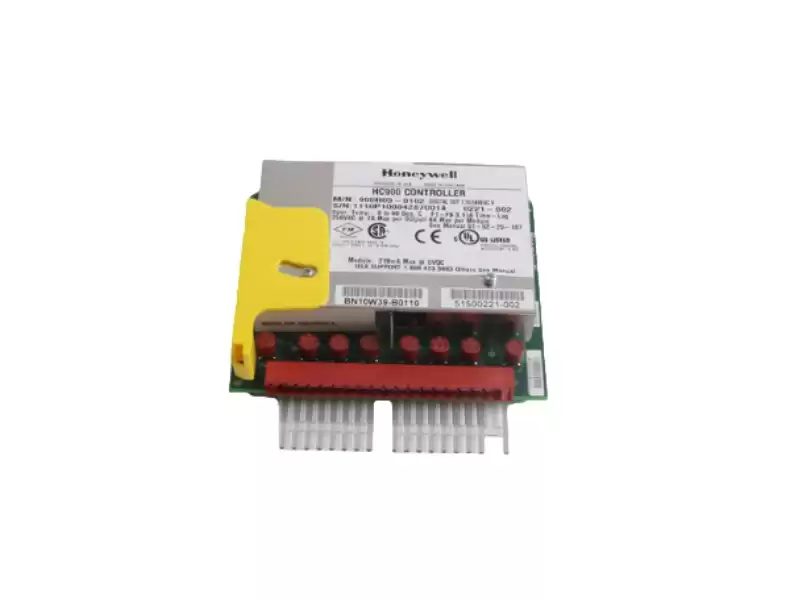

900H03-0102 — Digital output module for Honeywell ControlEdge HC900/process control systems, offering 8 (or 16) channels
of AC output (120-240 VAC) for controlling field loads. This module is primarily used in Honeywell HC900 platforms or compatible
systems as an output digital signal module, converting logic control signals into AC loads that can drive field devices (such as relays, contactors, indicator lights, etc.).
Technical Specifications
Ø Model No. 900H03-0102
Ø Output Type: Digital AC output (8 channels)
Ø Output Voltage: 120/240 VAC, 50/60 Hz
Ø Maximum Module Output Current: 8 A max
Ø Sum of rated current per channel does not exceed the total rated current of the module
Ø Maximum Rated Current per Channel: 250 VAC @ 2 A
Ø Module Dimensions: 13.3 cm × 3.2 cm × 14.1 cm
Ø Module Weight: 0.24 kg
Ø Operating Temperature Range: 0 °C to 60 °C
Product Advantages
Strong Control Capability: Supports 120/240 VAC output, directly driving field AC loads (such as relays, motor contactors, and indicator lights), adaptable to various industrial field application environments.
Easy Integration with the HC900 Platform:As a standard option in the Honeywell HC900 series I/O modules, it can work with various modules, facilitating system expansion.
Mature and Reliable: Suitable for the digital output needs of process control and industrial automation, with accumulated rich field experience.
AC Load Compatibility: Able to directly output AC voltage to the load, reducing the need for external relays or conversion devices.
