Product Identification

Model: 942-M0A-2D-1G1-220S

Manufacturer:Honeywell

Type/Function: proximity sensor control unit

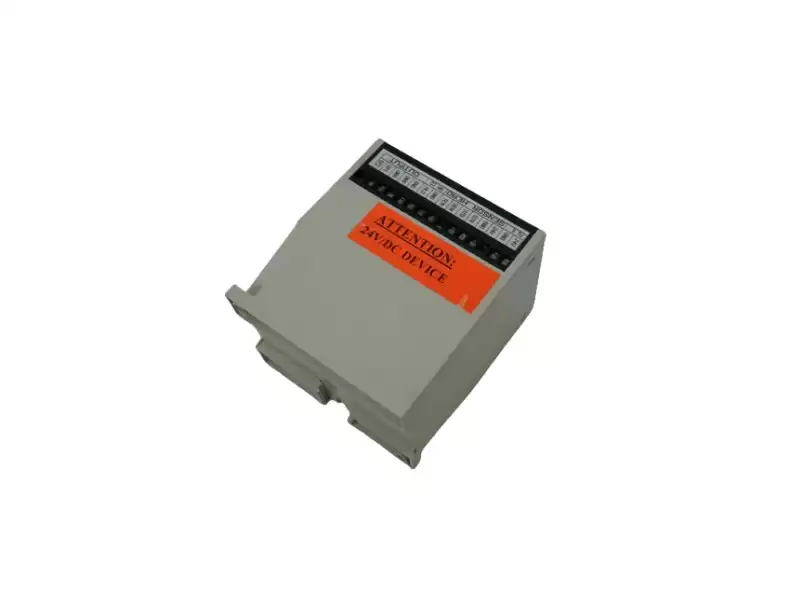

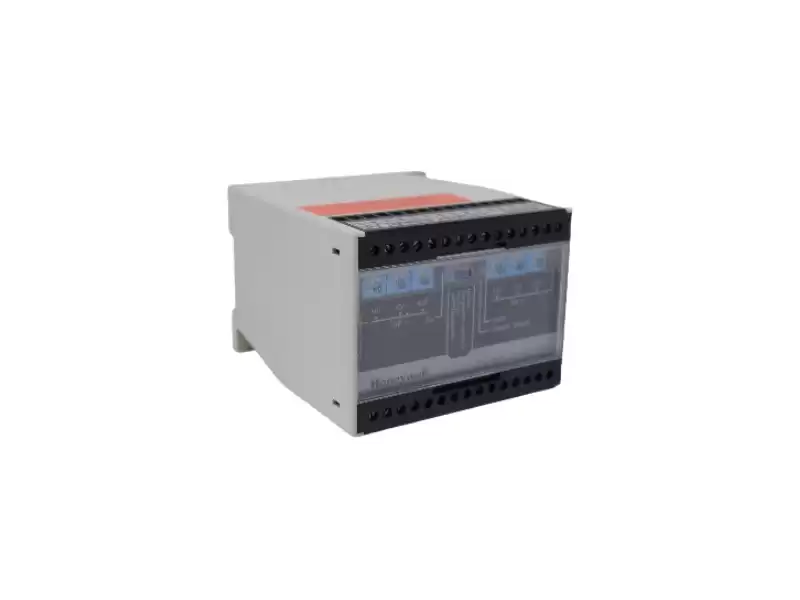

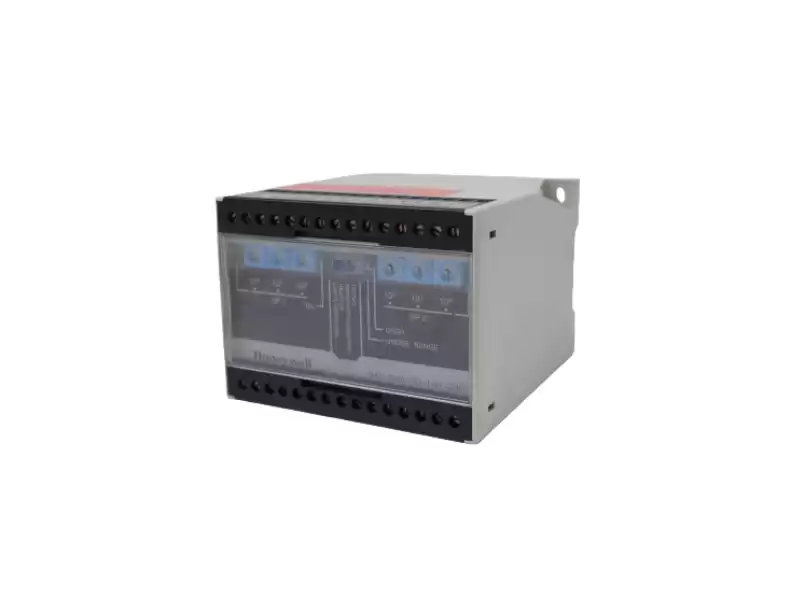

942-M0A-2D-1G1-220S proximity sensor control unit

Model 942-M0A-2D-1G1-220S is an ultrasonic ranging/proximity sensor control unit in the Honeywell 942 series. This device uses ultrasonic

 technology for distance measurement, and with an independent sensor head and control box, it enables accurate detection of object position, liquid

 level, or size. It is suitable for industrial environments requiring non-contact, stable measurement. The "220S" suffix indicates that it is a 220kHz oscillation frequency version.

Key Technical Specifications

Ø Measurement range: 150mm to 1500mm (6.0in to 59.0in)

Ø Oscillation frequency: 220kHz (model suffix "220S")

Ø Supply voltage: 19VDC to 30VDC

Ø Analog outputs: Two channels: 0V to 10VDC & 4mA to 20mA

Ø Switch outputs: Two PNP channels (Setpoint 1, Setpoint 2 + Process/Missing)

Ø Repeatability: ±0.2% ±1.0mm

Ø Response time: Moving target (<1m/s): 60ms; Target appearance/disappearance: 300ms

Application Areas

Ø This product is suitable for the following typical scenarios:

Ø Liquid level measurement in storage tanks or vessels (non-metallic or mixed media)

Ø Diameter detection of rolls, paper rolls, and steel strips

Ø Object positioning or material distance detection on assembly lines

Ø Dimensional or circumferential inspection during automobile and tire manufacturing processes
