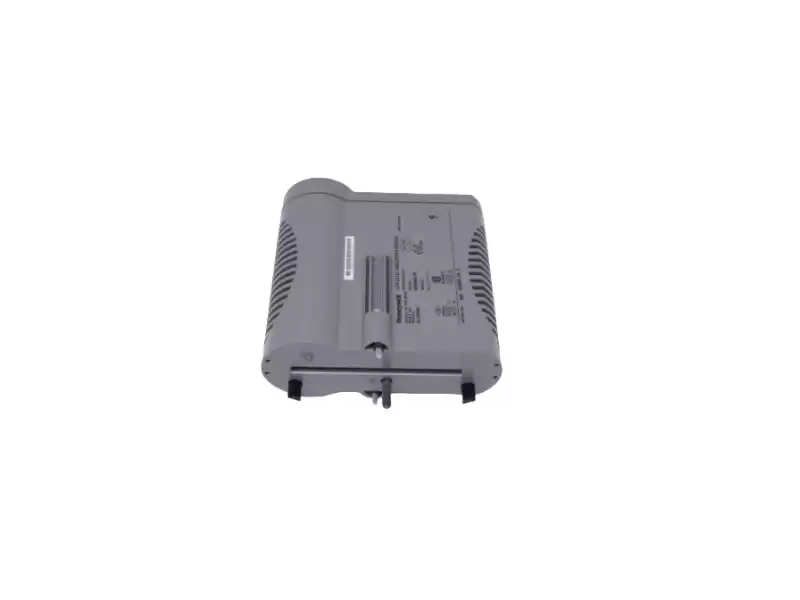

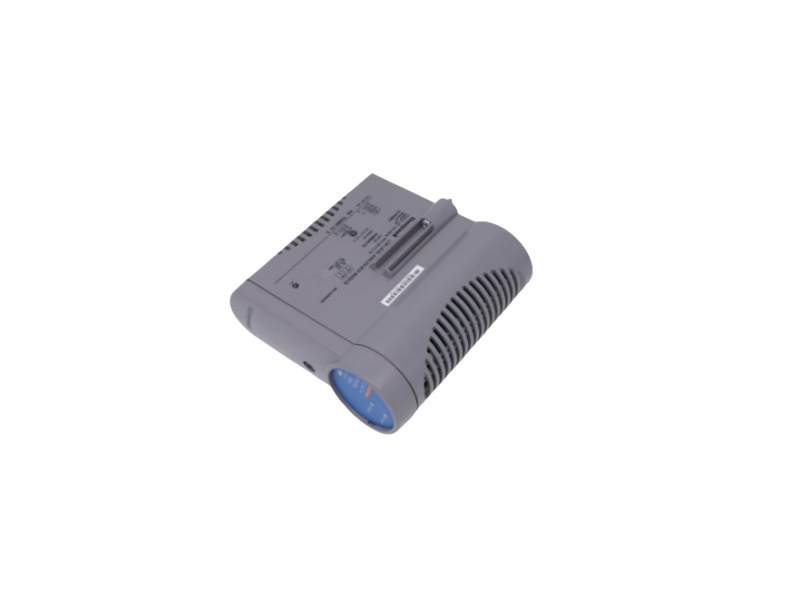

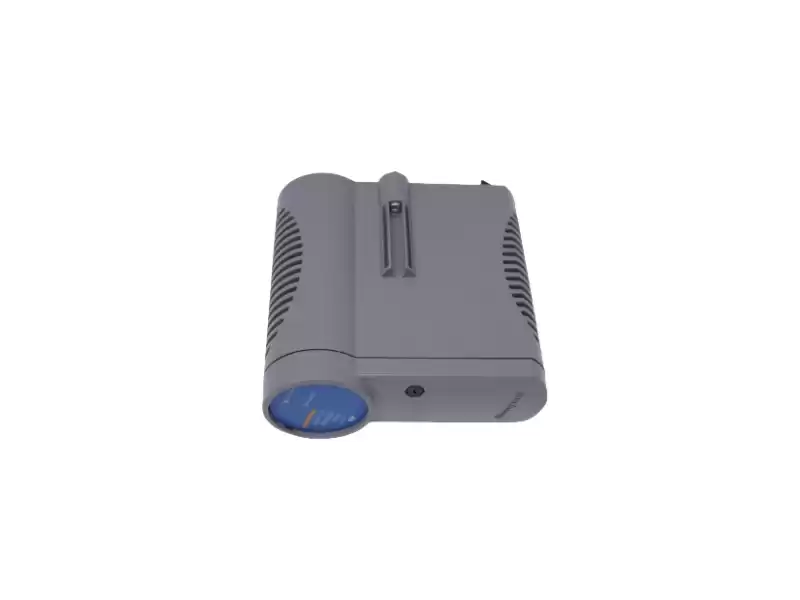

CC-PAIM01 51405045-175 |analog input multiplexer module
Sales Manager May
E-mail: ab@mooreplc.com
Phone: +86-18106909650 (whatsapp)
Wechat id: dcsfcs
What it is
Model CC-PAIM01, order number 51405045-175, is a low-level analog input multiplexer module in the Honeywell Series C I/O architecture. According
to the documentation, this module supports up to 64 channels of temperature input (RTD or thermocouple TC), configured in 16-channel increments
via FTA (Field-Termination Assembly).
Key Specifications
|
Mechanical / Environmental
|
Value
|
|
Module Model/Order Number:
|
CC-PAIM01 / 51405045-175
|
|
Supported Channels:
|
Up to 64 input channels (configurable via up to 4×16 channel FTA)
|
|
Input Type:
|
RTD or thermocouple (TC) analog temperature input; supports open circuit detection (OTD) function
|
|
Scan Rate:
|
Typically updates all points in 1-second cycles (16-channel increments)
|
|
Dimensions/Weight:
|
Approx. 3.2cm × 10.7cm × 13cm, approx. 0.3kg
|
Same brand spot inventory
|
Relay Output Module
|
K-ORC161
|
|
Digital Output Module
|
TK-ODD321
|
|
Analog Output Module
|
TK-OAV061
|
|
High-Level Analog Output Module
|
TK-HAO081
|
|
FTE Bridge Module
|
TK-FTEB01 51309512-175
|
|
Communication Interface Module
|
TK-FFIF01 51403420-275
|
|
Digital Input Module
|
TK-PPD011 51309241-175
|
|
Digital Relay Output Module
|
TK-PRR021 51309288-475
|
|
Digital Input/Output Module
|
TK-PRS021
|
Product Advantages
High Channel Density: Supports up to 64 temperature input points, suitable for temperature monitoring systems with numerous signal points.
Multiple Sensor Support: Supports both RTDs and thermocouples (TCs), with open-circuit detection (OTD) capability, enhancing system diagnostics.
Compatible with Honeywell Series C Architecture: Easily integrated into the Experion PKSC300 control system or its I/O platform.
Simplified Wiring and Installation: Centralizes multiple temperature inputs via a MUX, reducing control cabinet space and wiring complexity.
All PLC Autocontroller products are brand new and 100% original. Please contact us for pricing.
